2100 (UT-26027) - Green Machine String Trimmer Muffler - Clutch Parts Diagram

String Trimmer

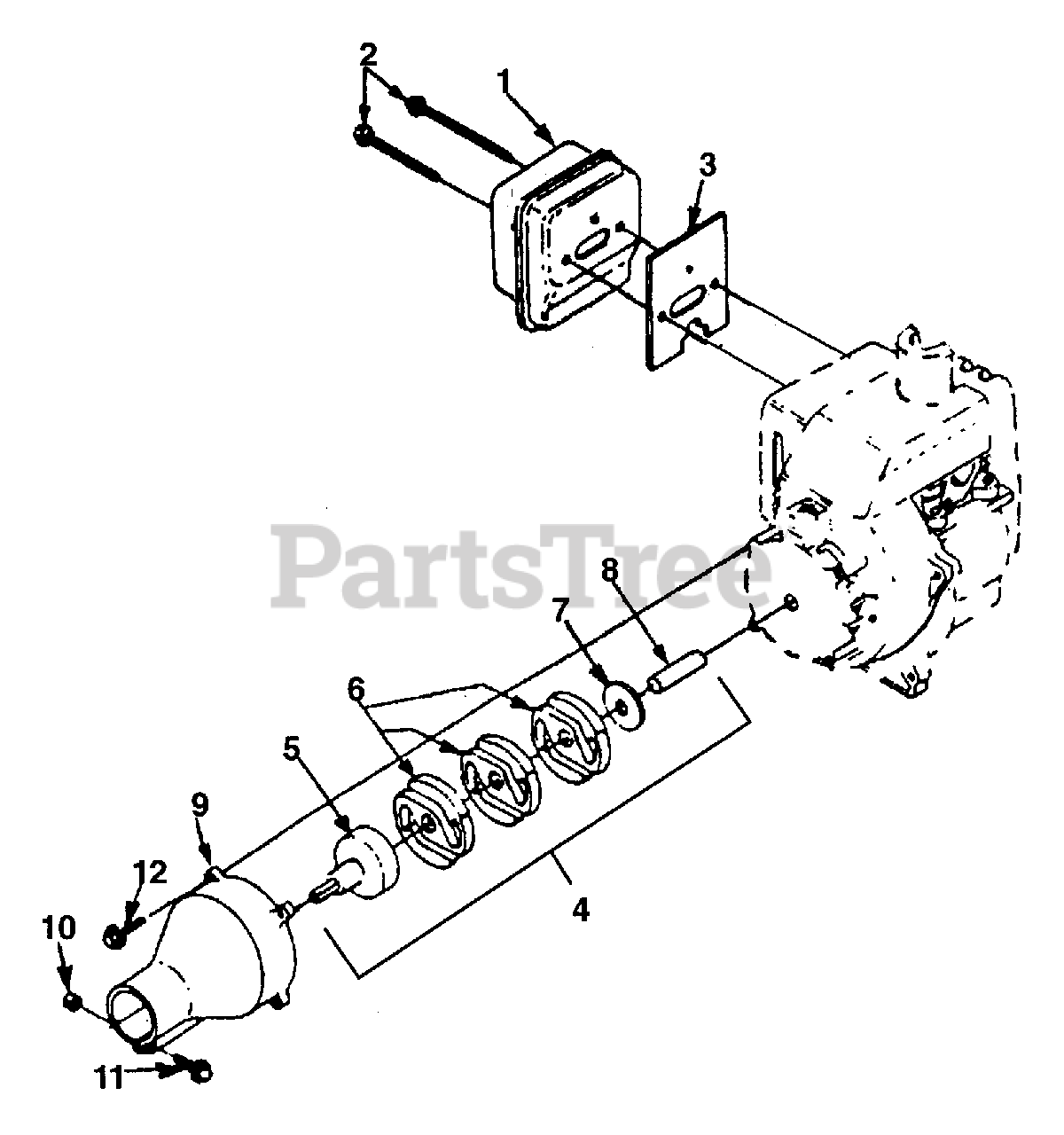

Muffler - Clutch Parts Diagram

  • Title

1

Homelite A04837

Complete Muffler

$

$

Not available

2

Homelite 88060

Screw - Sems Hex Hd.
(Superseded to 660673001)

Note: Torque Specs: 30-40 In/Lbs; 3.4 - 4.5 Nm

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 98786C

Muffler Gasket

Note: Also included in Short Block & Cylinder Kit

$

$

Not available

4

Homelite A04655

Clutch & Drum Kit

$

$

Currently unavailable

5

Homelite A03485B

Drum & Connector
(Superseded to UP04133)

Note: Torque Specs: 40-50 In/Lbs; 4.5 - 5.6 Nm

$24.99

$

Usually ships in 3-7 days

0

6

Homelite 00242

Clutch

Note: Torque Specs: 30-40 In/Lbs; 10.1 - 12.4 Nm

$

$

Not available

7

Homelite 98929A

Washer, Clutch
(Superseded to 638090001)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite PS035661

Spacer

$2.99

$

Usually ships in 3-7 days

0

9

Homelite A09008

Tube Adapter Kit
(Superseded to UP05822)

$

$

Not available

10

Homelite 81208

Nut, Lock

$

$

Not available

11

Homelite 96624

Screw (10-24 X 1 1/8")

Note: Torque Specs: 40-50 In/Lbs; 3.4 - 4.5 Nm

$

$

Not available

12

Homelite 88052

Screw (10-24 X 7/8")

Note: Torque Specs: 40-50 In/Lbs; 4.5 - 5.6 Nm

$2.99

$

Usually ships in 3-7 days

0
