21199 - Toro 30" TimeMaster Walk-Behind Mower (SN: 413000000 - 414709995) Handle and Electrical Assembly Parts Diagram

30" TimeMaster Walk-Behind Mower

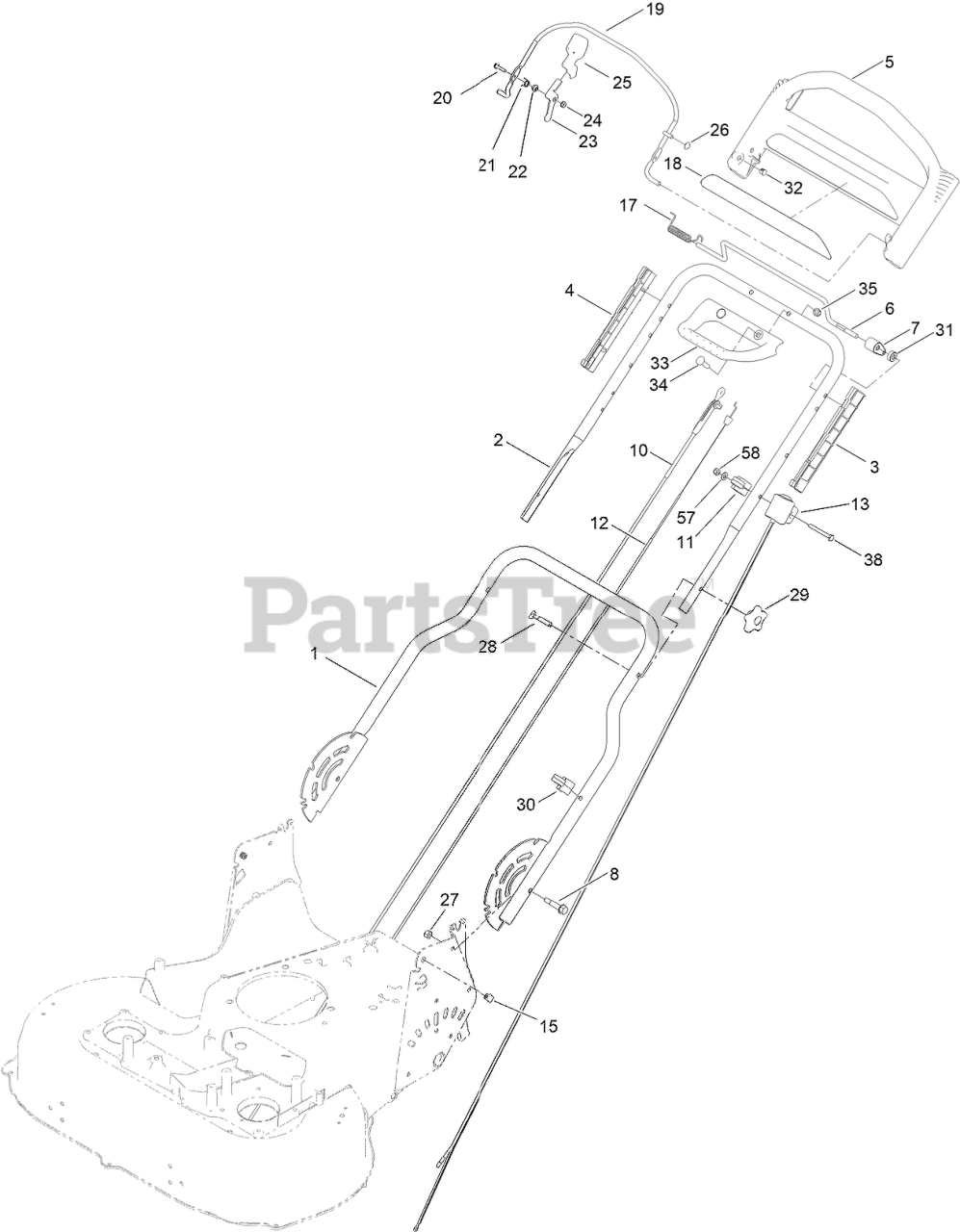

Handle and Electrical Assembly Parts Diagram

  • Title

1

Toro 120-5204-05

HANDLE-LOWER

$98.99

$

In Stock, only 1 left!

0

2

Toro 132-4484-05

HANDLE-UPPER

$53.99

$

Usually ships in 3-6 days

0

3

Toro 105-6842

GUIDE-LH

$8.99

$

In Stock, only 3 left!

0

4

Toro 105-6841

GUIDE-RH

$8.99

$

In Stock, only 2 left!

0

5

Toro 104-8678

HANDLE-CONTROL

$83.99

$

In Stock, only 1 left!

0

6

Toro 136-7150

BAR-CONTROL, TRACTION

$17.99

$

In Stock, only 1 left!

0

7

Toro 127-6842

LEVER-TRACTION

$4.49

$

In Stock, only 1 left!

0

8

Toro 120-7025

BOLT-SHOULDER, HHF

$3.99

$

In Stock, only 3 left!

0

10

Toro 133-1998

CABLE-BRAKE

$43.99

$

In Stock, Qty 20+

0

11

Toro 136-5864

ANCHOR-CABLE

$2.99

$

In Stock, Qty 10

0

12

Toro 127-6867

CABLE-TRACTION

$27.99

$

In Stock, only 4 left!

0

13

Toro 117-5975

SWITCH HOUSING ASM

$19.99

$

In Stock, Qty 20+

0

15

Toro 132-4516

PLUG-SQUARE

$1.49

$

Usually ships in 3-6 days

0

17

Toro 136-7166

SPRING-TORSION

$3.49

$

In Stock, Qty 8

0

18

Toro 117-1019

DECAL

$9.99

$

In Stock, only 1 left!

0

19

Toro 108-3788-03

BAIL-BRAKE

$43.99

$

In Stock, only 1 left!

0

20

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

21

Toro 107-7462

SPRING-TORSION

$8.49

$

In Stock, only 1 left!

0

22

Toro 107-7463

SPACER

$5.49

$

In Stock, Qty 15

0

23

Toro 138-3220

LEVER

$2.99

$

In Stock, Qty 9

0

24

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 18

0

25

Toro 112-8884

KNOB

$6.49

$

In Stock, Qty 12

0

26

Toro 3290-337

NUT-SPEED

$1.49

$

In Stock, Qty 20+

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 7

0

28

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 9

0

29

Toro 117-5976

KNOB-HANDLE

$2.99

$

In Stock, Qty 18

0

30

Toro 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 9

0

31

Toro 130-2343

SPACER

$1.49

$

In Stock, Qty 20+

0

32

Toro 104-9368

PLUG-DOME

$0.99

$

In Stock, only 4 left!

0

33

Toro 131-0847

HANDLE-ASSIST, TRACTION

$14.99

$

In Stock, only 2 left!

0

34

Toro 99-6005

BOLT-CARRIAGE

$4.99

$

Usually ships in 3-6 days

0

35

Toro 137-4808

NUT-ACORN

$1.99

$

Usually ships in 3-6 days

0

38

Toro 321-50

SCREW-HH

$1.99

$

In Stock, Qty 9

0

57

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

58

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 5

0

99

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 6

0
