2130 (134-212F100) - Cub Cadet Garden Tractor (SN: 239001 - 326005) PTO Clutch Parts Diagram

Garden Tractor

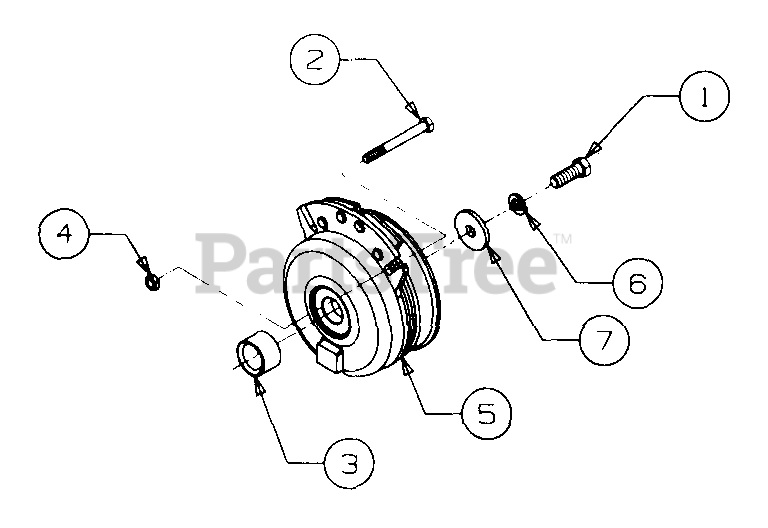

PTO Clutch Parts Diagram

  • Title

1

Cub Cadet 710-3029

Screw, Hex Cap, 7/16-20 x 1.25 Lg GR5

$4.49

$

In Stock, Qty 15

0

2

Cub Cadet 710-3291

Screw, Hex Cap, 5/16-24 x 3.0 Lg GR5
(Superseded to 910-3291)

$

$

Not available

3

Cub Cadet 711-3351

Spacer

$

$

Not available

4

Cub Cadet 712-3057

Nut, Hex, 5/16-24 GR5
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

5

Cub Cadet 717-3385

Clutch Assy, PTO
(Superseded to 917-3385B)

$523.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 736-3082

Washer, Flat, .445 x 1.5 x .172 Thk Hdn
(Superseded to 736-3082A)

$9.49

$

In Stock, Qty 17

0
