2146 (13A-224F100) - Cub Cadet Garden Tractor Cylinder Head Parts Diagram

Garden Tractor

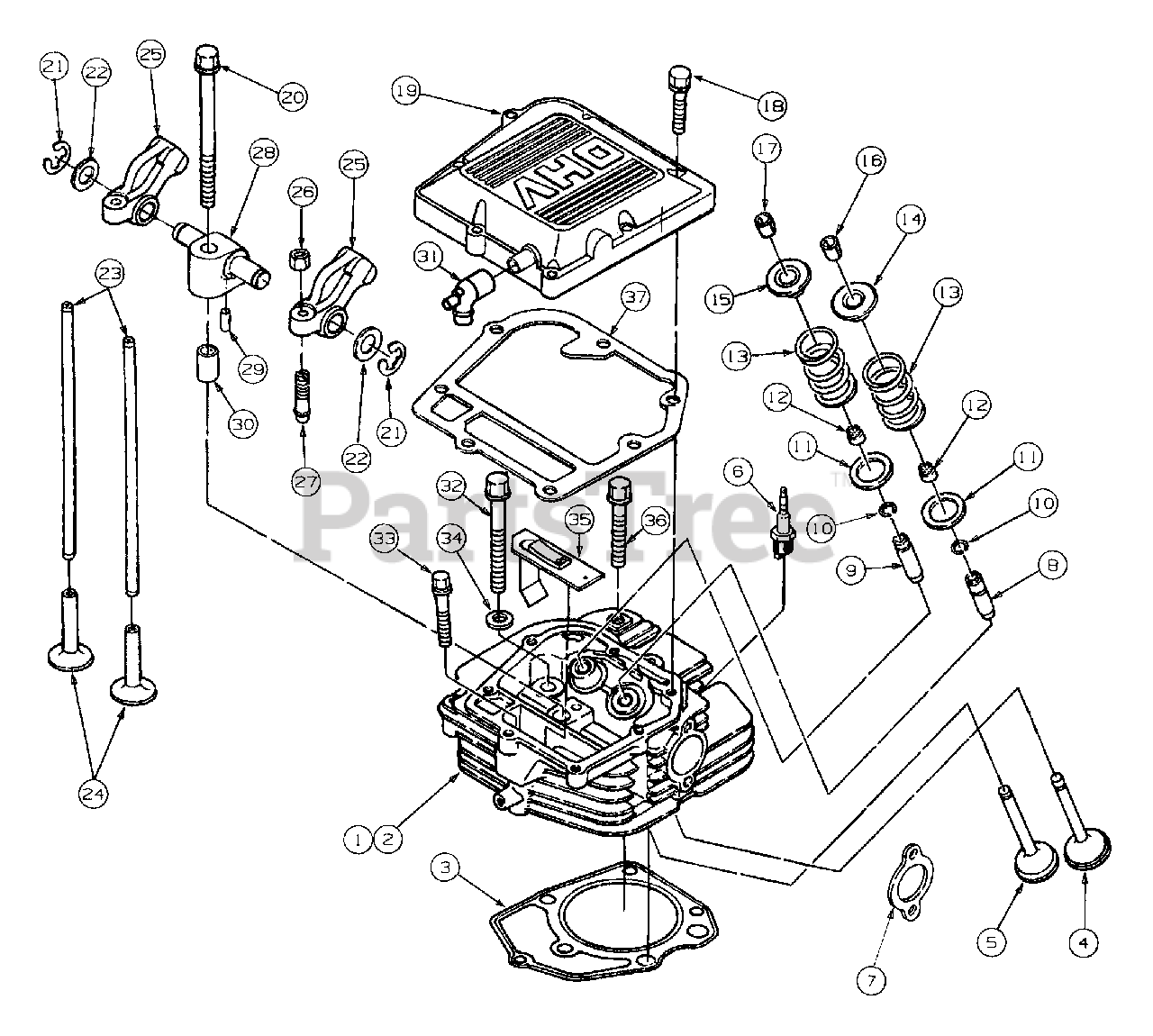

Cylinder Head Parts Diagram

  • Title

1

Cub Cadet ME-110-3912

Head Assy, Cyl

Note: (Incl Ref 2, 4-17)

$

$

Not available

2

Cub Cadet ME-110-3911

Head, Cylinder

Note: (Incl Ref 6-10)

$

$

Not available

3

Cub Cadet ME-110-3591

Gasket, Cylinder Head

$61.99

$

Usually ships in 3-6 days

0

4

Cub Cadet ME-110-3578

Valve, Intake

$

$

Not available

5

Cub Cadet ME-110-3579

Valve, Exhaust

$

$

Not available

6

Cub Cadet 759-3340

Spark Plug

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet ME-155-2378

Gasket, Exhaust

$

$

Not available

8

Cub Cadet ME-110-3693

Guide, Intake Valve

$

$

Not available

9

Cub Cadet ME-110-3694

Guide, Exhaust Valve

$

$

Not available

10

Cub Cadet ME-110-3580

Ring, Valve Guide

$

$

Not available

11

Cub Cadet ME-110-3587

Washer, Valve Spring

$

$

Not available

12

Cub Cadet ME-110-0289

Seal, Intake Valve Stem

$

$

Currently unavailable

Cub Cadet ME-509-0330

Seal, Exhaust Valve Stem

$

$

Not available

13

Cub Cadet ME-110-3822

Spring, Valve

$

$

Not available

14

Cub Cadet ME-110-3825

Retainer, Intake Valve Spring

$

$

Not available

15

Cub Cadet ME-110-3826

Retainer, Exhaust Valve Spring

$

$

Not available

16

Cub Cadet ME-110-3827

Lock, Intake Valve

$

$

Not available

17

Cub Cadet ME-110-2752

Lock, Exhaust Valve

$

$

Not available

18

Cub Cadet ME-800-3026

Screw Hex Flange M6 x 1 x 25

$

$

Not available

19

Cub Cadet ME-110-3863-04

Cover, Valve

$

$

Not available

20

Cub Cadet ME-110-3595

Bolt, Cyl. Head, M10 x 1.5 x 125

$

$

Not available

21

Cub Cadet ME-518-0566

Clip, Retainer

$

$

Not available

22

Cub Cadet ME-115-0473

Washer, Rocker Arm

$

$

Not available

23

Cub Cadet ME-115-0424

Rod, Push

$

$

Not available

24

Cub Cadet ME-115-0423

Tappet

$

$

Not available

25

Cub Cadet ME-115-0426

Arm Assy, Rocker

Note: (Incl Ref 26-27)

$

$

Not available

26

Cub Cadet ME-115-0428

Nut, Lash Adjusting, M7 x .75
(Superseded to ME-115-0496)

$

$

Not available

27

Cub Cadet ME-115-0427

Screw, Lash Adj, M7 x .75 x 18

$

$

Not available

28

Cub Cadet ME-115-0429

Shaft, Rocker Arm

$

$

Not available

29

Cub Cadet ME-516-2004

Pin, Dowel

$

$

Not available

30

Cub Cadet ME-110-3892

Pin, Hollow Dowel

$

$

Not available

31

Cub Cadet ME-123-2030

Connector, Breather Tube

$

$

Not available

32

Cub Cadet ME-110-3594

Bolt, Cyl Head, M10 x 1.5 x 86

$

$

Not available

33

Cub Cadet ME-110-3596

Bolt, Cyl Head, M8 x 1.25 x 50

$5.99

$

In Stock, only 1 left!

0

34

Cub Cadet ME-740-1008

Washer, Flat, M10

$

$

Not available

35

Cub Cadet ME-123-2014

Breather

$

$

Not available

36

Cub Cadet ME-110-3593

Bolt, Cyl Head, M10 x 1.5 x 66

$

$

Not available

37

Cub Cadet ME-110-3830-01

Gasket Valve Cover
(Superseded to ME-102-1441)

$

$

Not available
