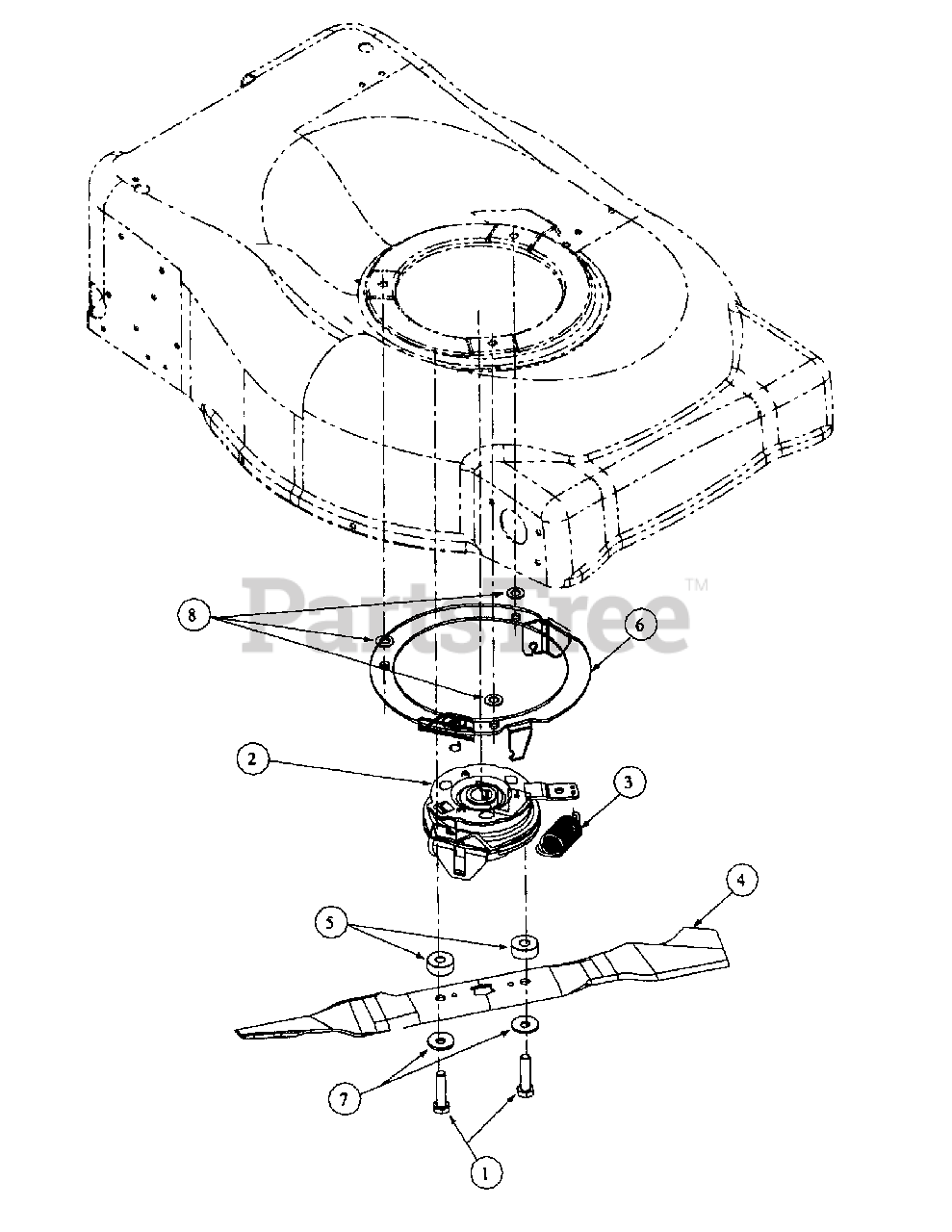

216 KW (52A-370-195) - MTD Pro Walk-Behind Mower Blade Self Propelled Parts Diagram

Pro Walk-Behind Mower

Blade Self Propelled Parts Diagram

  • Title

1

MTD 710-1641

Hex, Cap Screw, M10 x 1.5, 40mm

$6.99

$

Usually ships in 3-6 days

0

2

MTD 01000934P

BBC, Complete, Clutch

$

$

Not available

3

MTD 01000935

Extension Spring, 1.100 OD x 2.795

Note: NLA

$

$

Not available

4

MTD 01002824

21" Mulching Blade, with Star

$

$

Not available

5

MTD 01000937

Spacer, .412 x 1.125 x .44

$

$

Not available

6

MTD 01002728

Engine Mount Support Plate

Note: NLA

$

$

Not available

7

MTD 01000942

Bell, Washer, .396 x 1.14 x .095

$

$

Not available

8

MTD 01002710

Flat Washer, 3/8 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0
