216 KW (52A-370-195) - MTD Pro Walk-Behind Mower Control Self Propelled Parts Diagram

Pro Walk-Behind Mower

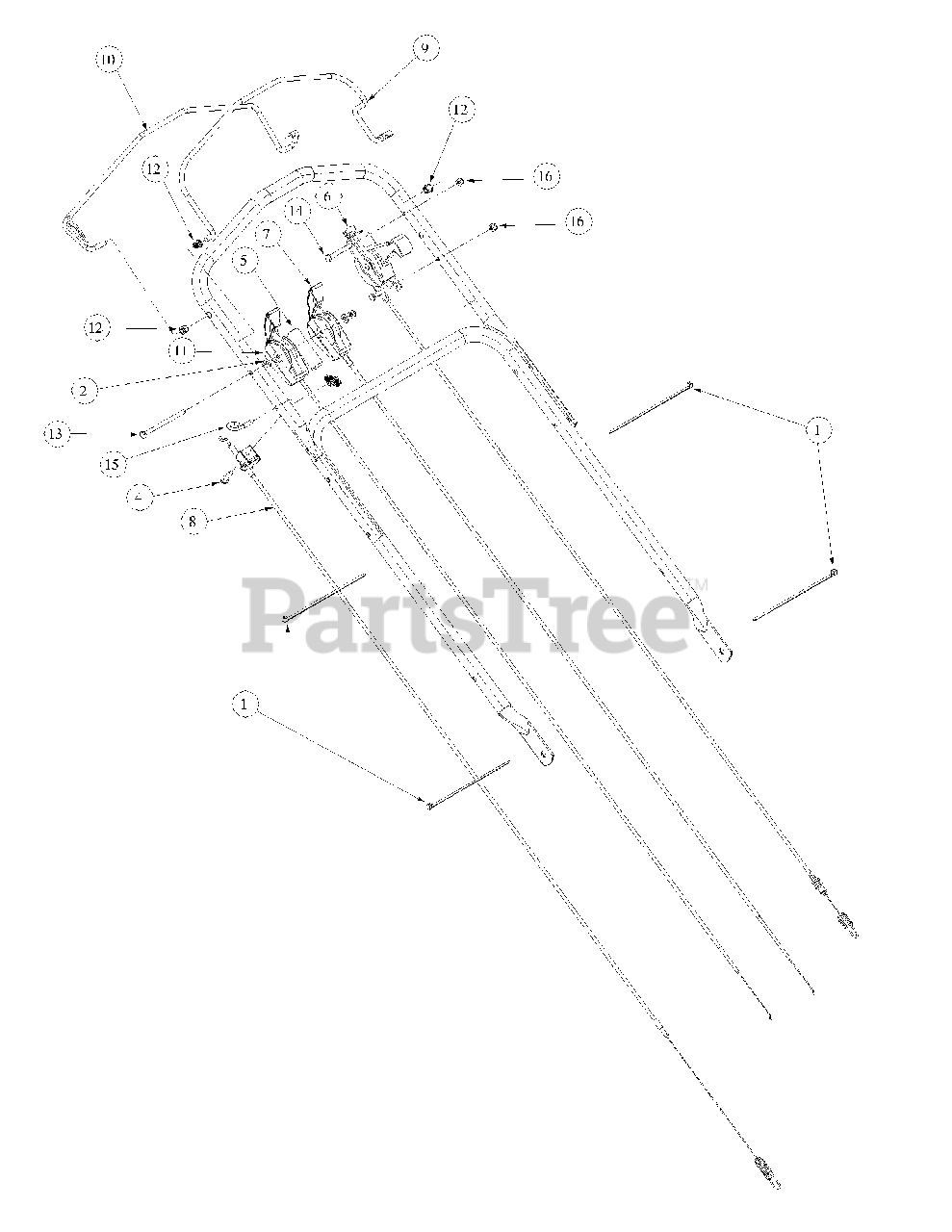

Control Self Propelled Parts Diagram

  • Title

1

MTD 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 4 left!

0

2

MTD 712-0324

Flatwasher 1/4 x .630 x .0515

$3.99

$

In Stock, Qty 20+

0

3

MTD 710-0606

Hex Head Cap Screw 1/4-20

$5.49

$

In Stock, Qty 13

0

4

MTD 710-0788

Screw TT 1/4-20, 1.000

$7.49

$

In Stock, only 4 left!

0

5

MTD 01000900

Spacer, 7/8 DIA x 2.875

Note: NLA

$

$

Not available

6

MTD 01000901

Control, BBC with Cable

Note: NLA

$

$

Not available

7

MTD 01000902

Control Shift, 3 Speed w/Cable

$

$

Not available

8

MTD 01000903P

Cable, Clutch Speed Adjuster

$

$

Not available

9

MTD 01002858

Lever Control Bail with BBC

$

$

Not available

10

MTD 01002857

Clutch Bail, Transmission, Commutator

$

$

Not available

11

MTD 01000858

Control Throttle with Cable

$

$

Not available

12

MTD 01002527

Bushing, .3125 Dia Snap

$

$

Not available

13

MTD 01002696

Hex Head Cap Screw, 1/4-20, 3.75

Note: NLA

$

$

Currently unavailable

14

MTD 01002697

Hex Head Cap Screw, 1/4-20, 2.50

Note: NLA

$

$

Currently unavailable

15

MTD 710-1205

Eye Bolt, 1/4-20, Bent Rope Guide

$3.99

$

In Stock, Qty 13

0

16

MTD 720-0279

Hex Nut, 1/4-20, Lock

$4.49

$

In Stock, Qty 20+

0

17

MTD 720-0279

Knob, Handle 1/4-20

$4.49

$

In Stock, Qty 20+

0
