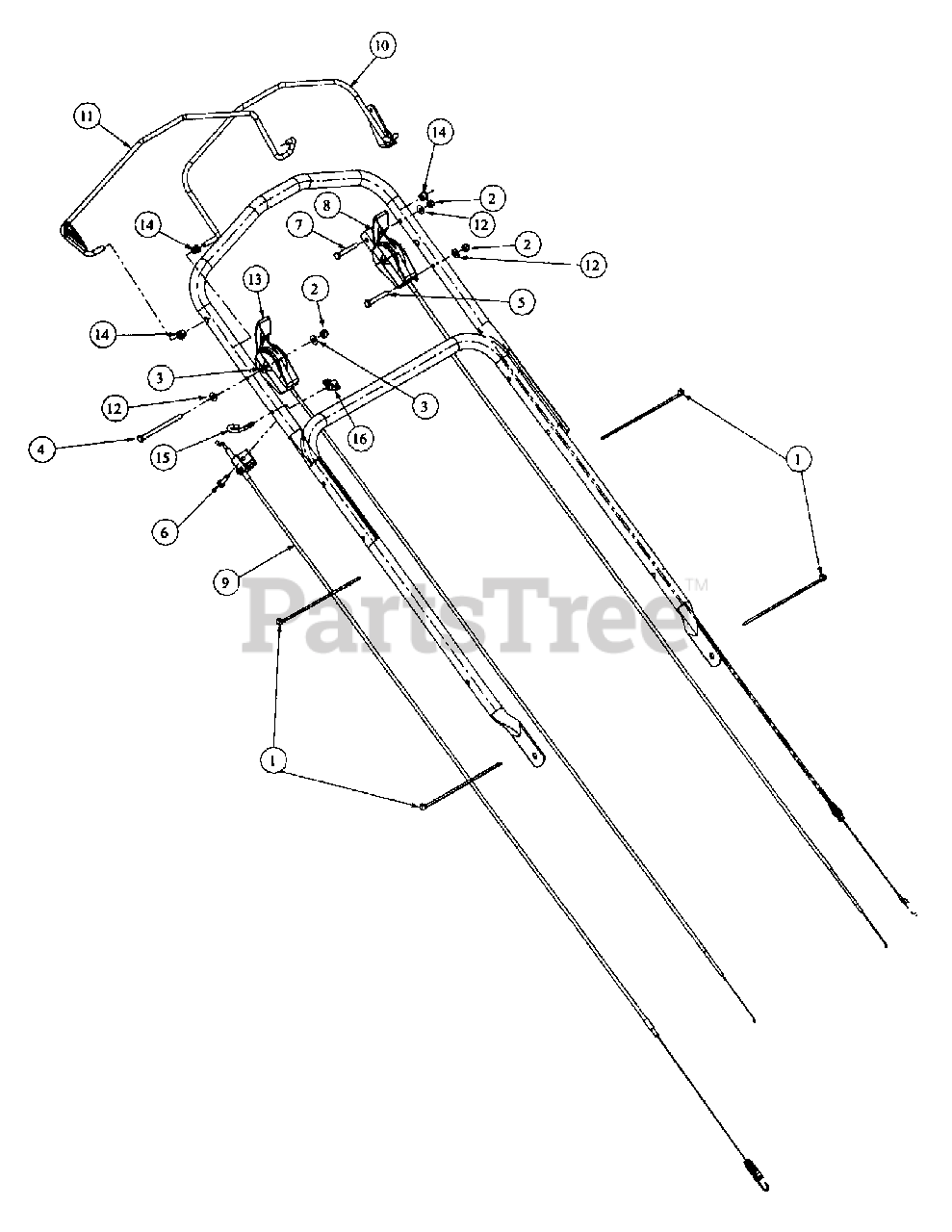

216 KW (52A-370-195) - MTD Pro Walk-Behind Mower Control Self Propelled With BBC Parts Diagram

Pro Walk-Behind Mower

Control Self Propelled With BBC Parts Diagram

  • Title

1

MTD 725-0157

Cable Tie, 3/16 X .05 X 7.4

$3.99

$

In Stock, only 4 left!

0

2

MTD 712-0324

Hex Nut, Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

3

MTD 936-0463

Flat Washer 1/4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

4

MTD 710-0641

HHCS, 1/4-20, 2.25

$4.49

$

In Stock, only 4 left!

0

5

MTD 710-0606

Hex Head Cap Screw 1/4-20

$5.49

$

In Stock, Qty 13

0

6

MTD 710-0788

Screw TT 1/4-20, 1.000

$7.49

$

In Stock, only 4 left!

0

7

MTD 01000898

HHCS, 1/4-20, 2.50

$

$

Not available

8

MTD 01000901

Control, BBC, W/Cable

Note: NLA

$

$

Not available

9

MTD 01000903P

Cable, Clutch Speed Adjuster

$

$

Not available

10

MTD 01002858

Lever, Control Bail, W/BBC

$

$

Not available

11

MTD 01002857

Bail, Clutch, Transmission

$

$

Not available

12

MTD 936-0451

Saddle Washer, 320 ID x .93 OD
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 20+

0

13

MTD 01000858

Control Throttle, KW

$

$

Not available

14

MTD 01002527

Snap Bushing, .3125 Dia.

$

$

Not available

15

MTD 710-1205

Eye Bolt, 1/4-20, Bent Rope Guide

$3.99

$

In Stock, Qty 13

0

16

MTD 720-0279

Handle Knob, ERS 1/4-20

$4.49

$

In Stock, Qty 20+

0
