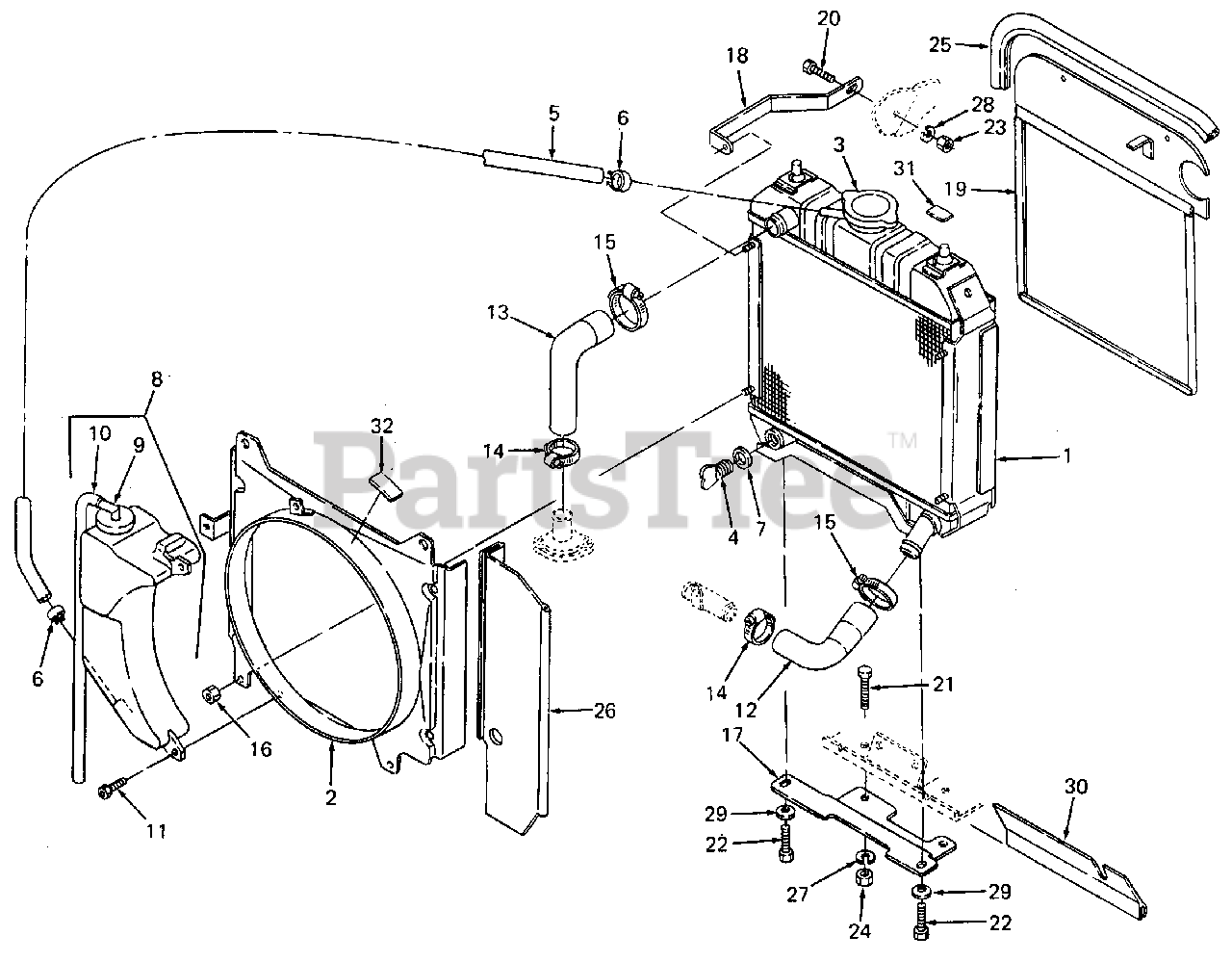

2182 (141-741-100) - Cub Cadet Super Garden Tractor (SN: 816536 - 821059) Radiator & Hoses Parts Diagram

Super Garden Tractor

Radiator & Hoses Parts Diagram

  • Title

1

Cub Cadet KB-16861-72060

Radiator Assy

Note: (Includes Ref No. 2, 5, 6, 8, 11 & 16)

$

$

Not available

2

Cub Cadet KB-16861-72330

Shroud, Fan

$

$

Not available

3

Cub Cadet KB-16861-72020

Cap Assy

$

$

Not available

4

Cub Cadet KB-16851-73110

Drain Cock

$

$

Not available

5

Cub Cadet KB-16851-72712

Pipe, Water Overflow

$

$

Not available

6

Cub Cadet KB-16851-72470

Clamp, Pipe

$

$

Not available

7

Cub Cadet KB-16851-96690

Gasket

$

$

Not available

8

Cub Cadet KB-16851-72400

Tank Assy, Reserve

$

$

Not available

9

Cub Cadet KB-16851-72420

Cap

$

$

Not available

10

Cub Cadet KB-16851-72440

Pipe, Overflow

$

$

Not available

11

Cub Cadet KB-01205-50614

Bolt

$

$

Currently unavailable

12

Cub Cadet KB-16861-72850

Pipe, Water

$

$

Not available

13

Cub Cadet KB-16871-72940

Pipe, Water

$

$

Not available

14

Cub Cadet KB-09318-89030

Clamp, Hose

$

$

Not available

15

Cub Cadet KB-09318-89036

Clamp, Hose

$

$

Not available

16

Cub Cadet KB-02054-50050

Nut

$

$

Not available

17

Cub Cadet 703-2021

Mount, Radiator

$

$

Not available

18

Cub Cadet 703-2020

Brace, Radiator

$

$

Currently unavailable

19

Cub Cadet 603-0001

Heat Baffle Assy

$

$

Not available

20

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 X .62 Lg GR5

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3136

Screw, Hex Cap, M10 X 1.25 X 25 mm Lg GR8

$

$

Not available

23

Cub Cadet 712-3006

Nut, Hex, 1/4-20 GR5

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 731-0511

Strip, Trim

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 735-3042

Flap, Radiator Air RH

$

$

Not available

Cub Cadet 735-3041

Flap, Radiator Air LH

$

$

Not available

27

Cub Cadet 736-0119

Washer, Lock, 5/16 Dia
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0329

Washer, Lock, 1/4 Dia
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

29

Cub Cadet 736-0407

Washer, Bell, .45 X 1.0 X .062

$3.99

$

In Stock, Qty 7

0

30

Cub Cadet 735-3043

Flap, Radiator Bottom

$

$

Not available

31

Cub Cadet KB-15409-94610

Label, Radiator

$

$

Not available

32

Cub Cadet KB-66101-47330

Label, Radiator

$

$

Not available
