218910x43B - Yard King 21" Walk-Behind Mower (2004) Engine Mount Parts Diagram

21" Walk-Behind Mower

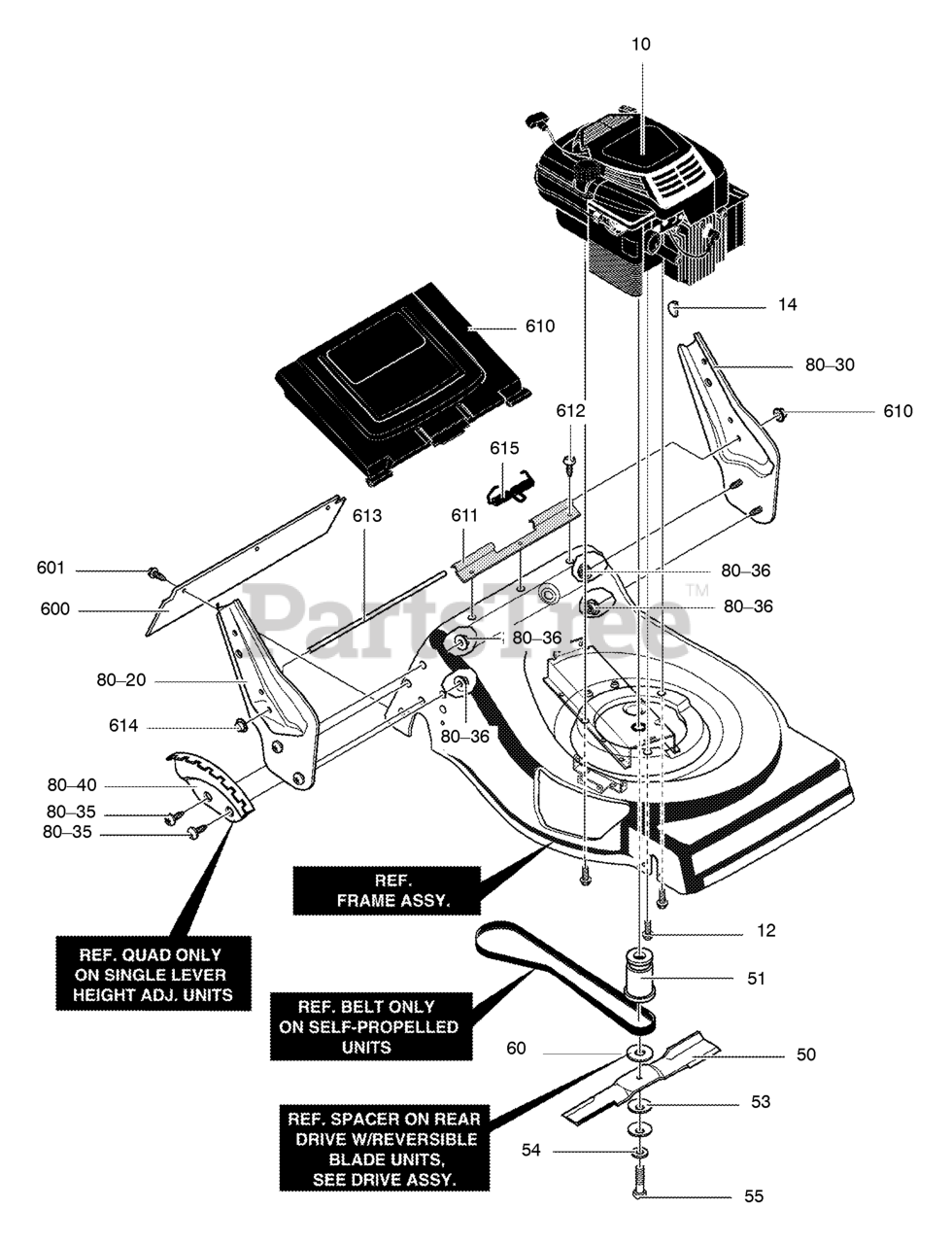

Engine Mount Parts Diagram

  • Title

10

ENGINE *

Note: (See Engine Manual)

$

$

Not available

12

Murray 0025X6MA

SCREW

$5.49

$

Usually ships in 2-12 days

0

14

Murray 020062MA

WOODRUFF KEY 505
(Superseded to 692193)

$3.99

$

In Stock, only 2 left!

0

50

Murray 672089E701A

BLADE, 21" REVERSIBLE

$

$

Currently unavailable

51

Murray 043603MA

ADAPTER, BLADE 21"

$16.99

$

Usually ships in 2-12 days

0

53

Murray 17X137MA

WASHER, BEVELLE

$5.49

$

Usually ships in 2-12 days

0

54

Murray 17X124MA

WASHER

$4.49

$

Usually ships in 2-12 days

0

55

Murray 01X148MA

SCREW, 3/8-24 x 2.00

$3.99

$

Usually ships in 2-12 days

0

60

Murray 071470MA

SPACER

$

$

Not available

80-20

Murray 627845E549

BRACKET, HANDLE RH

$

$

Currently unavailable

80-30

Murray 672844E549

BRACKET, HANDLE LH

$

$

Currently unavailable

80-35

Murray 26X275MA

SCREW, 5/16-18 x 0.63

$5.49

$

Usually ships in 2-12 days

0

80-36

Murray 015X79MA

NUT, 5/16-16
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

80-40

Murray 071569E549

INDEX, HEIGHT ADJ

$119.99

$

Usually ships in 2-12 days

0

600

Murray 043640

DEFLECTOR, REAR

$

$

Not available

601

Murray 26X245MA

SCREW, 10-16X.50

$4.49

$

In Stock, Qty 6

0

610

Murray 071409

DOOR, REAR 21

$66.99

$

Usually ships in 2-12 days

0

611

Murray 071410MA

SPACER

$7.99

$

Usually ships in 2-12 days

0

612

Murray 26X259MA

SCREW, 10-16X.50

$4.49

$

Usually ships in 2-12 days

0

613

Murray 672282 Z

ROD, PIVOT

$

$

Currently unavailable

614

Murray 028X42MA

CAP, PUSH ON

$3.99

$

Usually ships in 2-12 days

0

615

Murray 166X33MA

SPRING, TORSION

$6.99

$

In Stock, only 1 left!

0

--

Murray F-040457L

OWNER'S MANUAL

$

$

Currently unavailable
