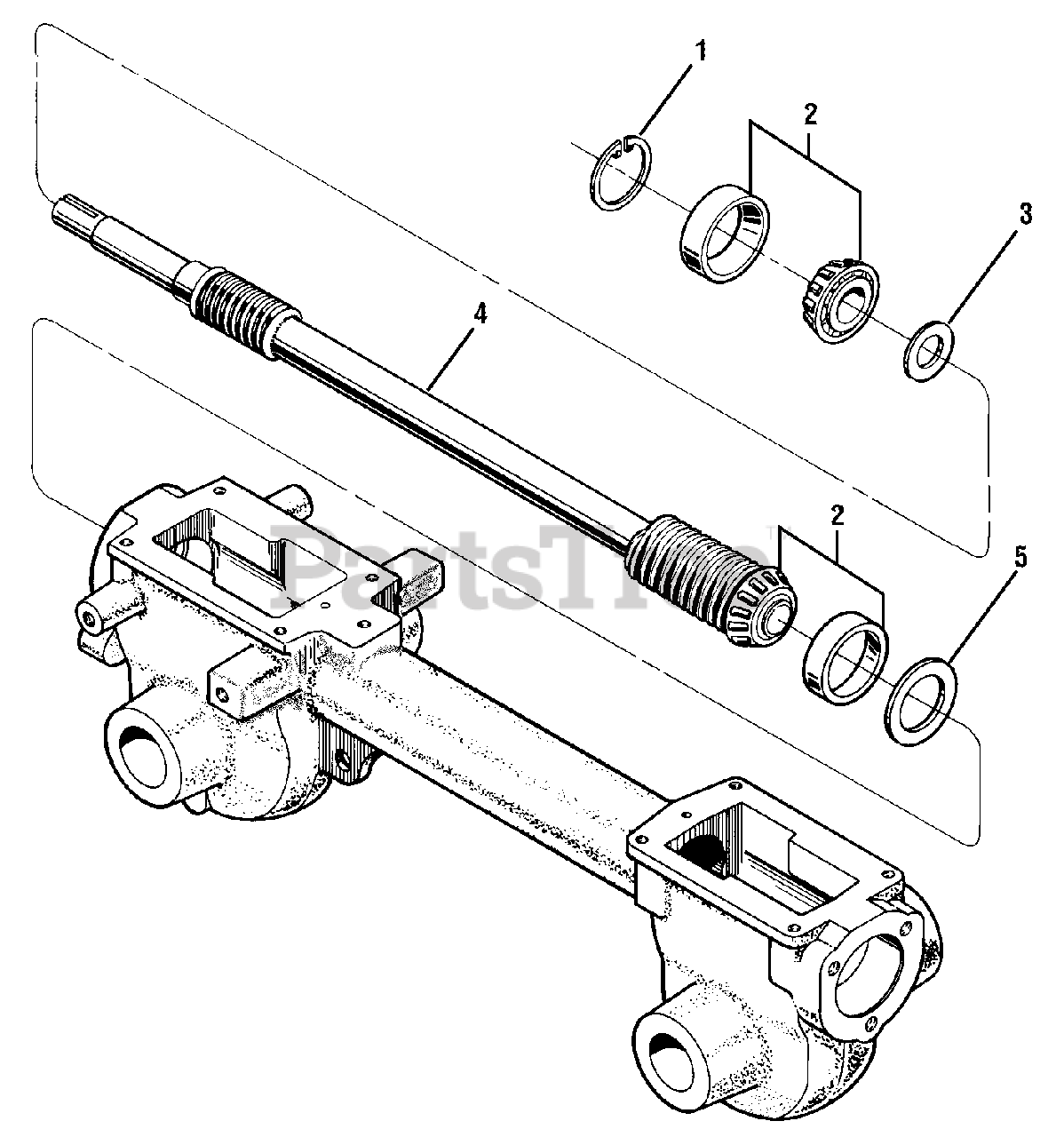

21A-645A063 - Troy-Bilt Rear-Tine Tiller (2003) Drive Shaft Parts Diagram

Rear-Tine Tiller

Drive Shaft Parts Diagram

  • Title

1

Troy-Bilt GW-9517

Snap Ring
(Superseded to 716-04102)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt GW-1714

Bearing, Tapered Roller (with race)
(Superseded to 941-0107)

$44.99

$

In Stock, Qty 20+

0

3

Troy-Bilt GW-50043

Support Washer, Rear
(Superseded to 736-04304)

$4.49

$

In Stock, Qty 15

0

4

Troy-Bilt 711-04110

Drive Shaft (CRT)
(Superseded to 911-04110)

$158.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt GW-1224-1

Shim, Rear Bearing Cap, .010" thick
(Superseded to 736-04308)

Note: Use as required to obtain between .005" and .015" allowable end-play.

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt GW-1224-2

Shim, same as above, except .030" thick
(Superseded to 736-04307)

Note: Use as required to obtain between .005" and .015" allowable end-play.

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt GW-1224-3

Shim, same as above, except .005" thick
(Superseded to 736-04306)

Note: Use as required to obtain between .005" and .015" allowable end-play.

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt GW-1224-4

Shim, same as above, except .062" thick
(Superseded to 736-04305)

Note: Use as required to obtain between .005" and .015" allowable end-play.

$3.99

$

In Stock, Qty 20+

0

Troy-Bilt GW-1325C

Shim Set

Note: (Incl. the following shims: two #1224-1, two 1224-2 & one #1224-4)

$14.99

$

In Stock, only 4 left!

0
