21A-663E766 - Troy-Bilt Rear-Tine Tiller (2006) Bolo Tines, Wheels Parts Diagram

Rear-Tine Tiller

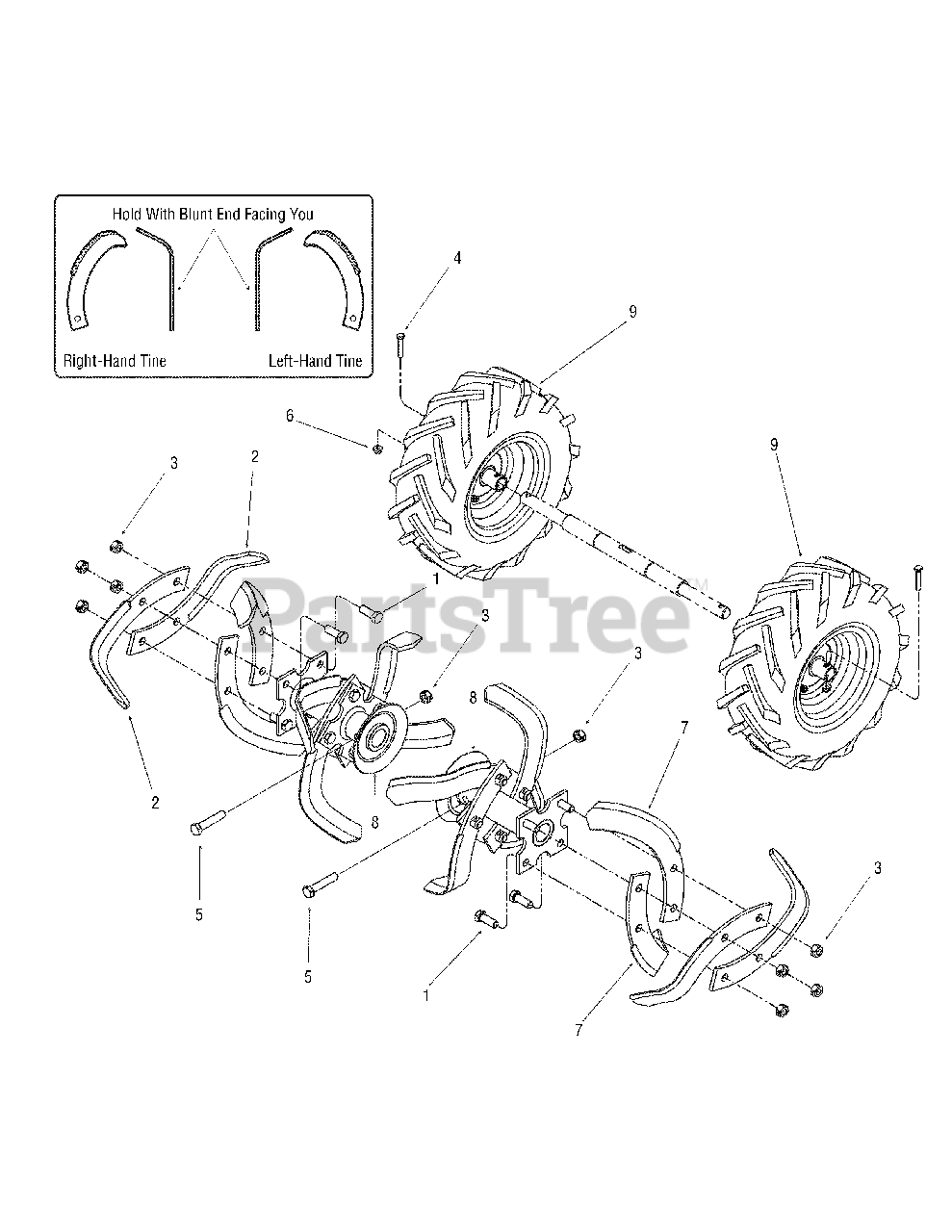

Bolo Tines, Wheels Parts Diagram

  • Title

1

Troy-Bilt 710-0514

Hex Hd. Screw, 3/8-16 x 1 (Specify Grade 5 if ordering part locally.)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 742-04119

Bolo Tine-single. Left hand tine
(Superseded to 742-04223-0637)

Variations

Troy-Bilt 742-04119-0637

Bolo Tine, LH 12" Powder Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 20+

0

$27.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 712-3000

Hex Locknut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-0606

Hd. Screw, 1/4-20 x 1.5

$4.99

$

In Stock, Qty 15

0

5

Troy-Bilt 710-3096

Hex Hd. Screw, 3/8-16 x 2, Grade 8

$7.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04064

Hex Locknut, Flange, 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 742-04118

Bolo Tine-single. Right hand tine
(Superseded to 742-04224-0637)

Variations

Troy-Bilt 742-04118-0637

Bolo Tine, RH 12" Powder Black - POWDER BLACK (0637)

$27.99

$

In Stock, Qty 20+

0

$27.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1902154

Tine Holder. For left and right sides
(Superseded to 686-04067-0638)

$94.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 634-04232

Wheel Assembly, 13 x 5 x 6
(Superseded to 934-04232)

$172.99

$

In Stock, only 3 left!

0

Troy-Bilt 1901118

Bolo Tine Replacement Set (Includes 8 each right hand and left hand tines, and 16 each Refs. 1 and 3)
(Superseded to 1901118A)

$

$

Not available

Troy-Bilt GW-2475-1

Custom Tilling Bolo Tine, Left hand tine. See note
(Superseded to GW-2475-1001)

$54.99

$

In Stock, only 2 left!

0

Troy-Bilt GW-2475-2

Custom Tilling Bolo Tine, Right hand tine. See note
(Superseded to GW-2475-2001)

$54.99

$

In Stock, only 1 left!

0

Troy-Bilt GW-10802

Custom Tilling Bolo Tine Replacement Set (Incl. 8 each right hand left hand custom tines, and 16 each of Refs 1 and 3) See note

$499.99

$

Usually ships in 3-6 days

0
