21AE682L766 - Troy-Bilt Big Red Rear-Tine Tiller (2013) Handle Assembly Parts Diagram

Big Red Rear-Tine Tiller

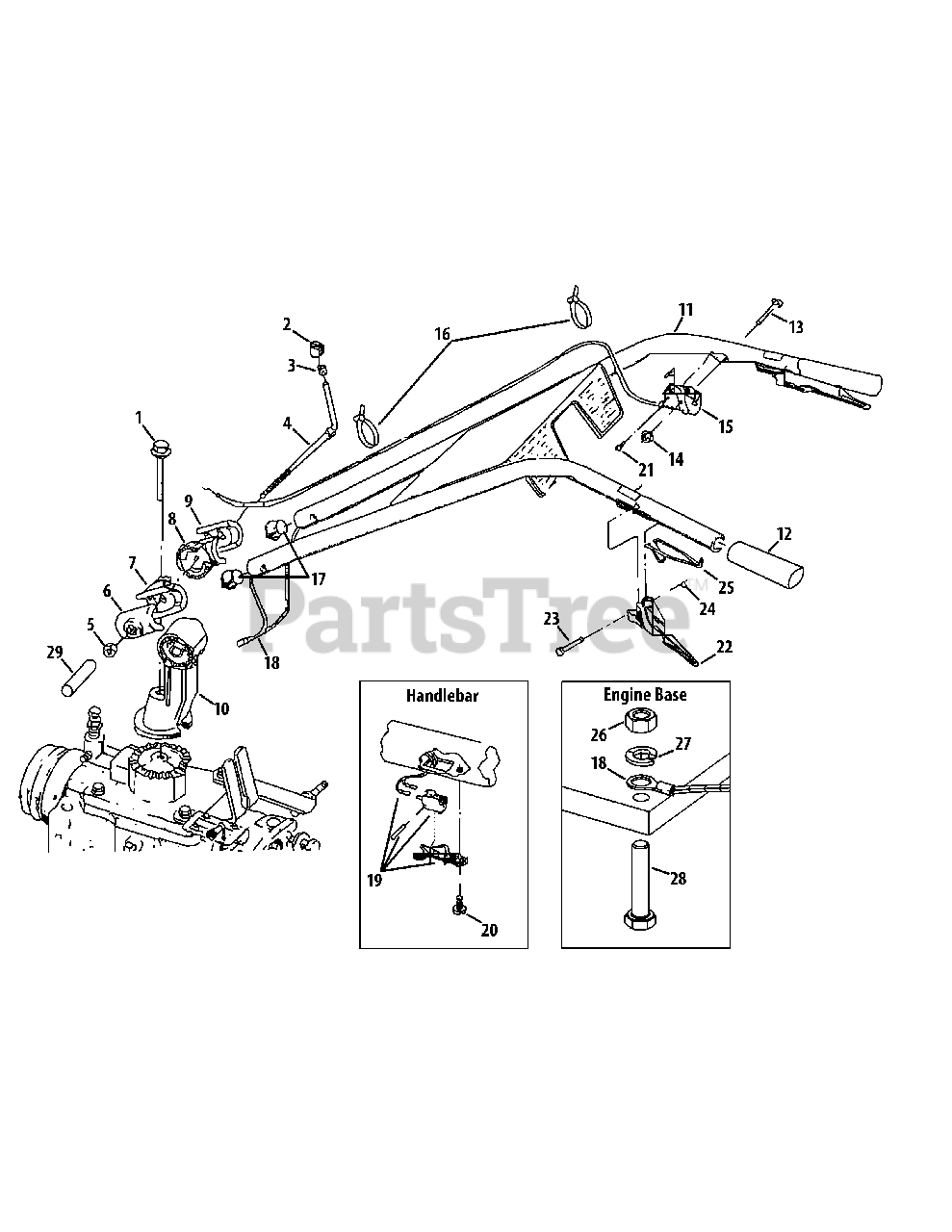

Handle Assembly Parts Diagram

  • Title
1

Troy-Bilt GW-9548

Hex Bolt, 1/2"-13 x 3-1/2"

$14.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt GW-9119

Handlebar Height Adjustment Knob

$11.99

$

In Stock, only 1 left!

0

3

Troy-Bilt GW-9120

Retaining Ring

$6.99

$

In Stock, only 1 left!

0

4

Troy-Bilt GW-1881

Handlebar Height Adjustment Stud

$62.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 912-0206

Hex Nut, 1/2"-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 8

0

6

Troy-Bilt 1900854010

Handlebar Hgt, Adj. Clamp (LT)

$36.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1900856010

Handlebar Hgt. Adj. Ratchet (LT)

$42.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 1900857010

Handlebar Hgt. Adj. Ratchet (RT)

$49.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1900855010

Handlebar Hgt. Adj. Clamp (RT)

$38.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 1900858010

Handlebar Mounting Base

$125.99

$

In Stock, only 1 left!

0

11

$255.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 720-04083

Handlebars Grip

$14.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 1918111

Curved Head Bolt, 1/4"-20 x 2"

$7.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 1186389

Hex Nut, 1/4"-20

$3.49

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1909286P

Throttle Control & Cable, 66"

$73.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 725-0157

Plastic Tie

$3.99

$

In Stock, only 2 left!

0

17

Troy-Bilt GW-9219

Wire Harness Retainer Plug

$10.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 725-04367

Handlebar Wire Harness Assembly

$60.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 625-04097

Switch Assembly

$72.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 710-0779A

Pan Head Screw, #10-16 x 1/2"

$4.49

$

In Stock, Qty 12

0

21

Troy-Bilt GW-9733

Phillips Head Screw, 10-32 x 1/2"
(Superseded to 1964)

$4.49

$

In Stock, Qty 15

0

22

Troy-Bilt 786-04003-0638

Operator Presence Control Lever

$28.99

$

In Stock, only 1 left!

0

23

Troy-Bilt GW-9199

Pivot Pin

$6.49

$

In Stock, only 2 left!

0

24

Troy-Bilt GW-9514

Retaining Ring

$6.99

$

In Stock, only 2 left!

0

25

Troy-Bilt 732-04864A

Return Spring

$6.99

$

In Stock, only 3 left!

0

26

Troy-Bilt 912-3010

Hex Nut, 5/16"-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 936-0119

Washer, 5/16"

$4.99

$

In Stock, Qty 17

0

28

Troy-Bilt 710-0805

Hex Head Screw, 5/16"-18 x 1.5
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

29

$3.99

$

Usually ships in 3-6 days

0
