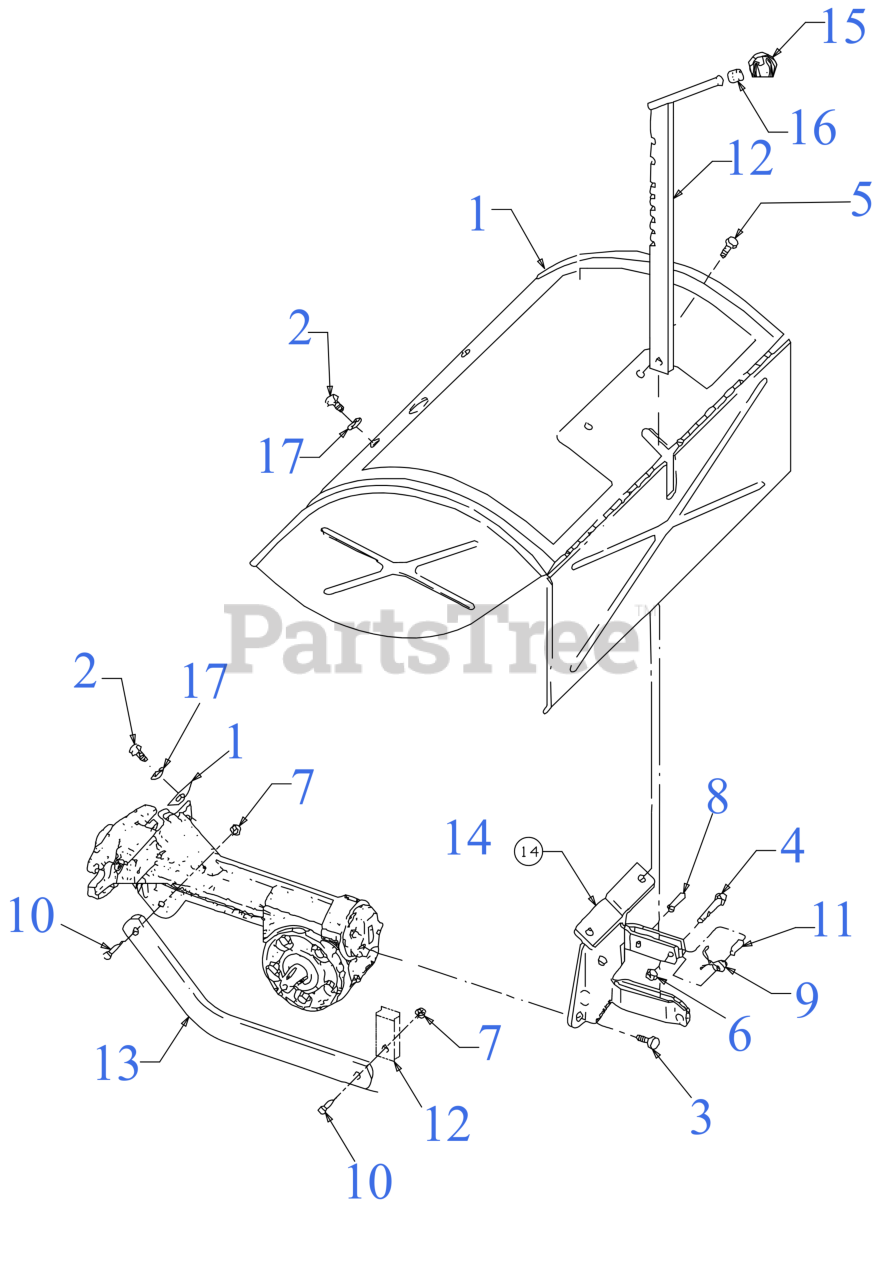

21AE682W766 - Troy-Bilt Big Red Rear-Tine Tiller (2022) Tine Shield Parts Diagram

Big Red Rear-Tine Tiller

Tine Shield Parts Diagram

  • Title

1

Troy-Bilt 1904563

TINE HOOD ASSEMBLY WITH FLAP

$396.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04043

SCREW 5/16-18

$3.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-04049

HEX SCREW 5/16-18 x .625 GR5

$4.49

$

In Stock, Qty 14

0

4

Troy-Bilt 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 18

0

5

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-3000

LOCK NUT 3/8-16

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 715-04034

ROLL PIN

$6.49

$

In Stock, Qty 7

0

9

Troy-Bilt 732-04320

TORSION SPRING

$4.49

$

In Stock, Qty 13

0

10

Troy-Bilt 738-0143

SHOULDER SCREW .498 DIA x .340

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 750-04556

SPLIT SPACER

$6.49

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1900864

BAR DEPTH REGULATOR

$80.99

$

In Stock, Qty 9

0

13

Troy-Bilt 1900867001

DEPTH REGULATOR BAR

$32.99

$

In Stock, only 2 left!

0

14

Troy-Bilt GW-2525

BRACKET-HOOD

$91.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt GW-9119

CONTROL KNOB

$10.99

$

In Stock, only 3 left!

0

16

Troy-Bilt GW-9120

RING-TOLERANCE

$6.49

$

In Stock, only 1 left!

0

17

Troy-Bilt GW-9929

WASHER-#1.125X.344

$3.49

$

Usually ships in 3-6 days

0
