21D-65M8766 - Troy-Bilt Super Bronco CRT Rear-Tine Tiller (2022) Tines Parts Diagram

Super Bronco CRT Rear-Tine Tiller

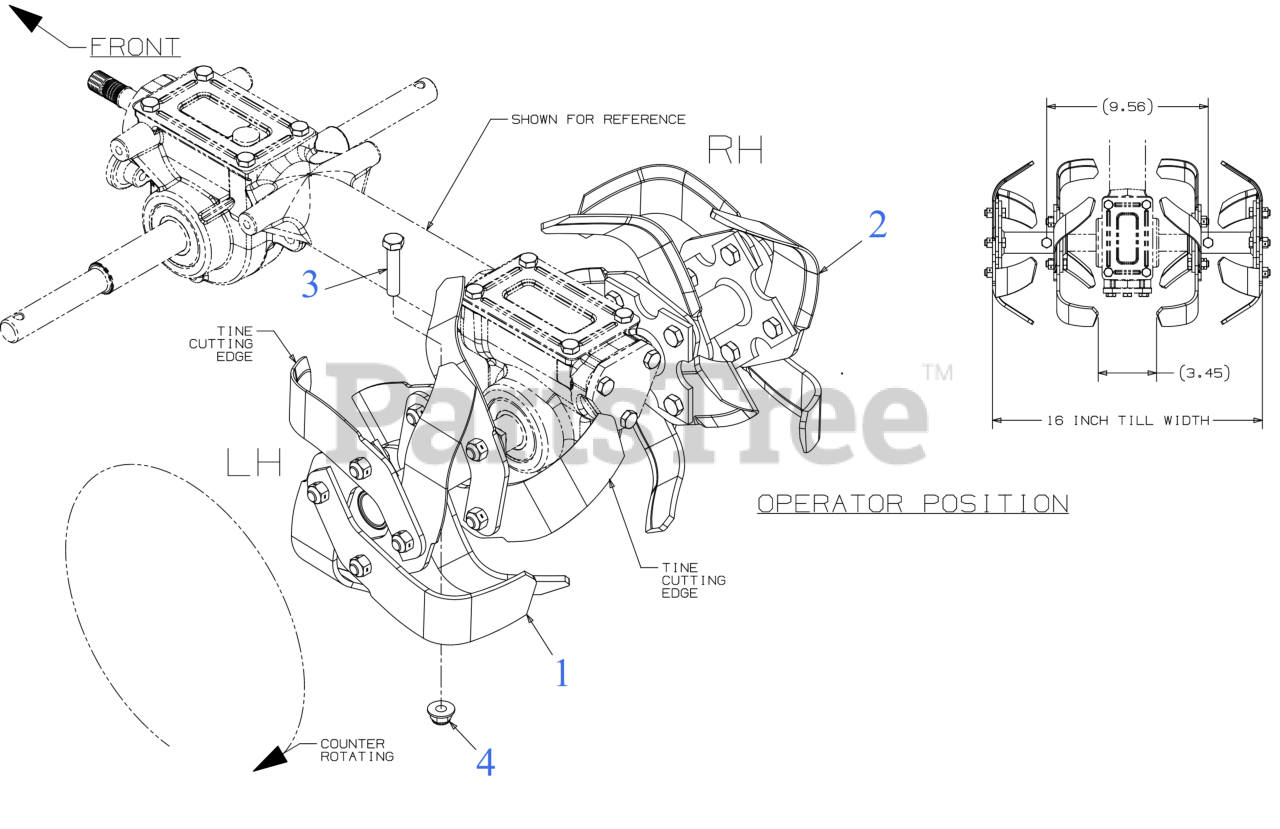

Tines Parts Diagram

  • Title

1

Tine Assembly 10x16

Note: (Components Only)

$

$

Not available

1

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 20+

0

1

Troy-Bilt 742-04226

BOLO TINE 10"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 742-04226-0637

Bolo Tine, RH 10" Powder Black - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-04226-0638

Bolo Tine, RH 10" - MTD/TROY-BILT RED (0638)

$16.99

$

In Stock, Qty 20+

0

$16.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 686-05008

TINE HOLDER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 686-05008-0638

HOLDER-TINE - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 1 left!

0

2

Tine Assembly 10x16

Note: (Components Only)

$

$

Not available

2

Troy-Bilt 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 912-3000

LOCK NUT 3/8-16
(Superseded to 712-3000)

$4.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 742-04227

BOLO TINE 10"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 742-04227-0637

Bolo Tine, LH 10" Powder Black - POWDER BLACK (0637)

$16.99

$

In Stock, Qty 20+

0

Troy-Bilt 742-04227-0638

Bolo Tine, LH 10" - MTD/TROY-BILT RED (0638)

$16.99

$

In Stock, Qty 5

0

$16.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 686-05008

TINE HOLDER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Troy-Bilt 686-05008-0638

HOLDER-TINE - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0
