226 R - Husqvarna String Trimmer (2009-01) CLUTCH Parts Diagram

String Trimmer

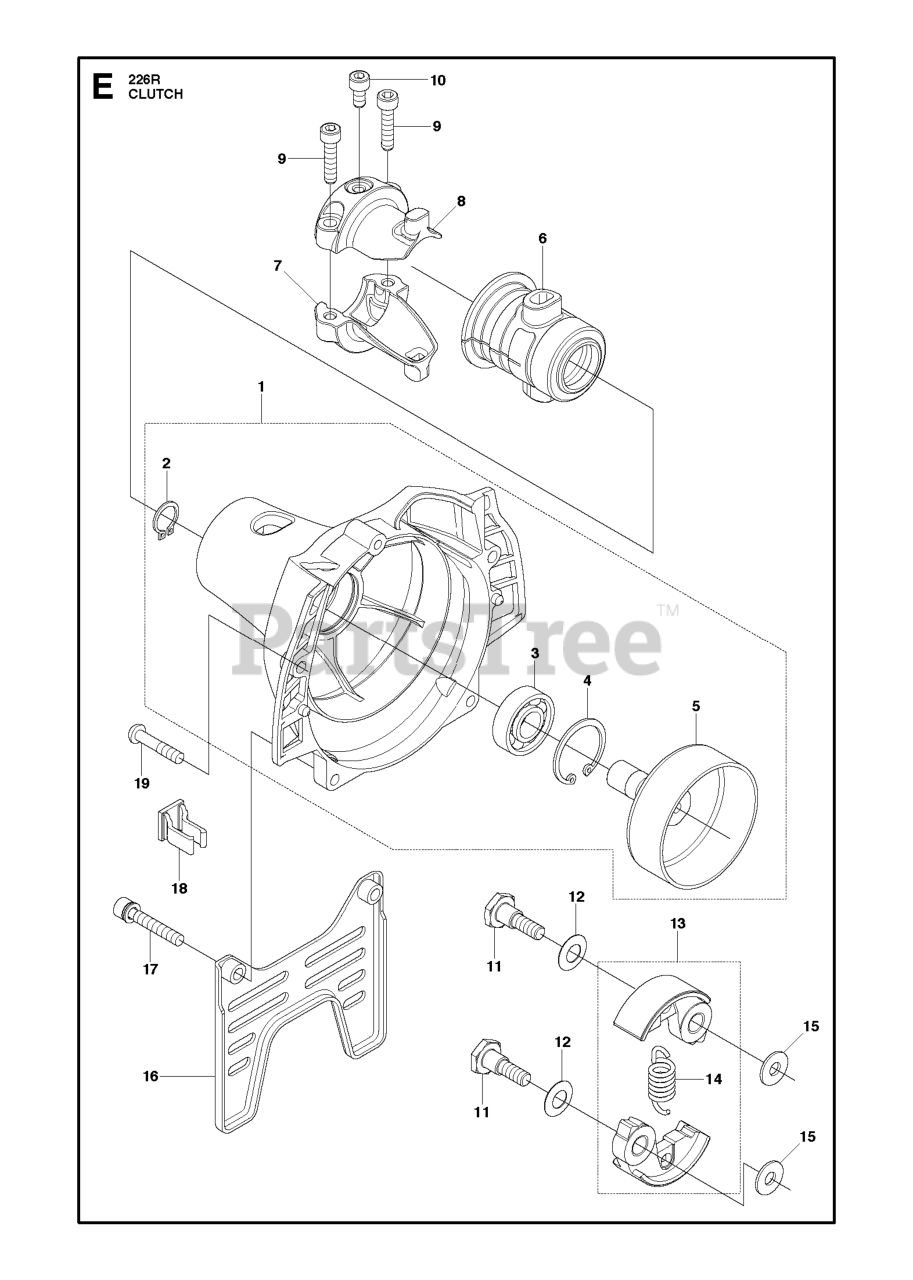

CLUTCH Parts Diagram

  • Title

13

Husqvarna 506629401

SHOE COMP

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 513189601

SCREW

$4.99

$

In Stock, Qty 8

0

15

Husqvarna 505054401

WASHER

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 521609801

DRUM (RPLS 481031120-22)

$47.99

$

In Stock, Qty 5

0

2

Husqvarna 516124101

RING

$4.99

$

In Stock, only 1 left!

0

18

Husqvarna 521758801

CLAMP

$

$

Not available

19

Husqvarna 510482301

SCREW

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 511323601

GUARD

$

$

Not available

1

Husqvarna 521771201

HOUSING-A (RPLS T170231100)
(Superseded to 570825801)

$77.99

$

Usually ships in 3-10 days

0

10

Husqvarna 526734401

BOLT
(Superseded to 574288601)

$4.99

$

In Stock, only 3 left!

0

6

Husqvarna 512360501

CUSHION

$24.99

$

Usually ships in 3-10 days

0

7

Husqvarna 521768301

BRACKET (B)

$9.99

$

In Stock, only 1 left!

0

12

Husqvarna 521758201

WASHER

$4.99

$

In Stock, Qty 5

0

4

Husqvarna 506609901

RING

$4.99

$

In Stock, only 1 left!

0

17

Husqvarna 514234801

BOLT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 526734501

BOLT
(Superseded to 574288701)

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 521768201

BRACKET (A) (RPLS T170031211)

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525953201

BEARING

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 506685801

SPRING

$4.99

$

In Stock, Qty 11

0
