2284 (14A-734-100) - Cub Cadet Super Garden Tractor (SN: 864501 - 899000) Blower Housing And Baffles Parts Diagram

Super Garden Tractor

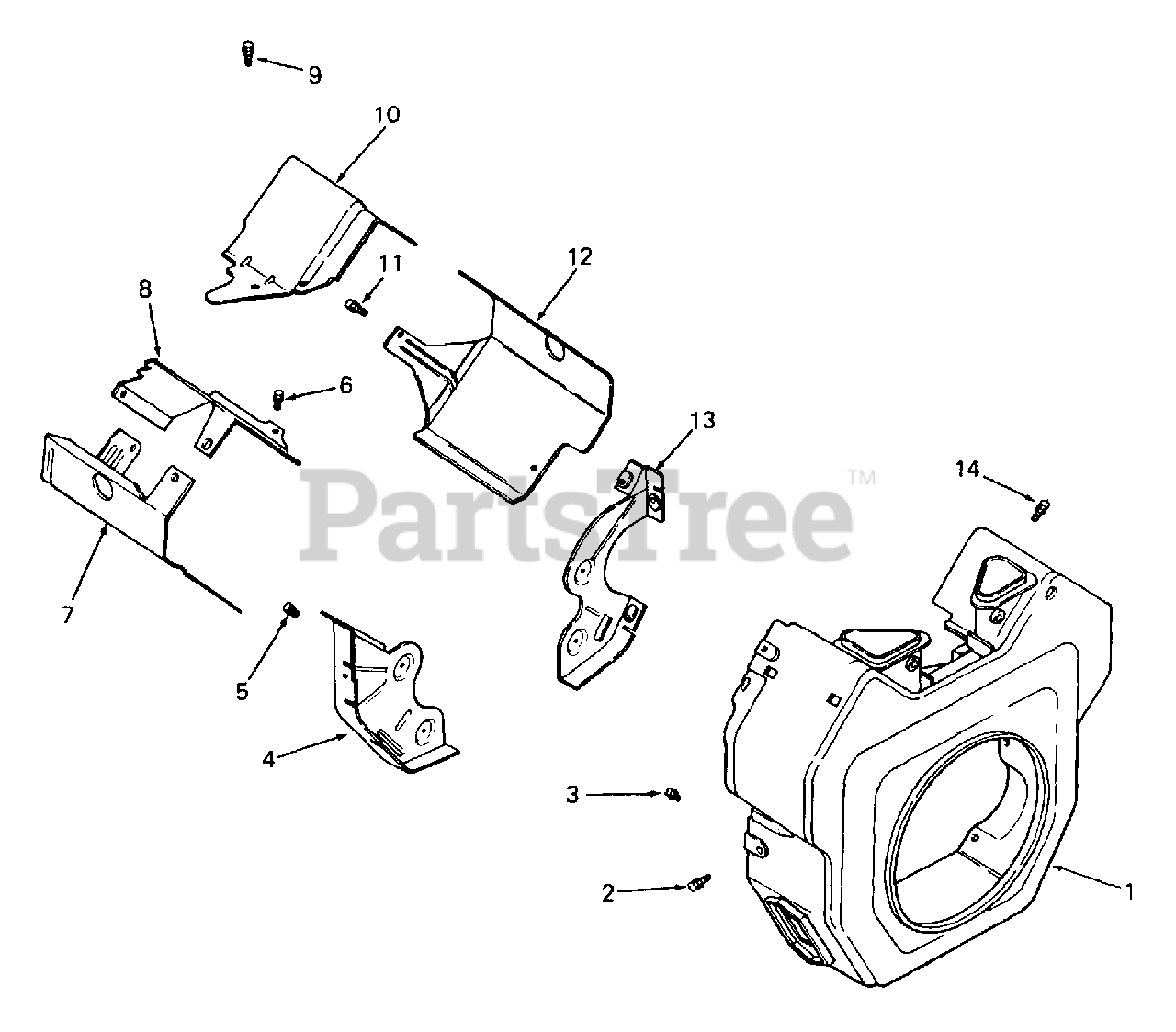

Blower Housing And Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-19

Housing, Blower

$

$

Not available

2

Cub Cadet KH-M-0549016

Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

3

Cub Cadet KH-M-0551016

Screw, M5 x 0.8 x 14

$

$

Not available

4

Cub Cadet KH-24-146-02

Plate, Backing #2 Side
(Superseded to KH-24-146-16-S)

$

$

Not available

5

Cub Cadet KH-M-0645016

Screw, M6 x 1.0 x 16
(Superseded to KH-M-645016-S)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-M-0649016

Screw, M6 x 1.0 x 16

$

$

Not available

7

Cub Cadet KH-24-063-20

Baffle, Cylinder Barrel #2 Side
(Superseded to KH-24-063-88-S)

$28.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-24-063-17

Baffle, Valley #2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-0549010

Screw, M5 x 0.8 x 10
(Superseded to KH-M-0545010)

$

$

Not available

10

Cub Cadet KH-24-063-24

Baffle, Valley #1 Side
(Superseded to KH-24-063-93-S)

$

$

Not available

11

Cub Cadet KH-M-0549016

Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-426-S)

$2.49

$

In Stock, Qty 15

0

12

Cub Cadet KH-24-063-08

Baffle, Cylinder Barrel #1 Side
(Superseded to KH-24-063-85-S)

$17.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-146-08

Plate, Backing #1 Side

$

$

Not available

14

Cub Cadet KH-SM-0545020

Screw, M5 x 0.8 x 20

$

$

Not available

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

Note: Included w/blower housing

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-100-02

Nut, Plastic

Note: Included w/blower housing

$

$

Not available

Cub Cadet KH-25-086-43

Screw, Set

Note: Included w/blower housing

$

$

Not available

Cub Cadet KN-25-139-16

Plug, Button, 9/16

Note: Included w/blower housing

$

$

Currently unavailable
