22984 (TRX-300) - Toro Trencher (SN: 400000000 - 405599999) Frame Assembly Parts Diagram

Trencher

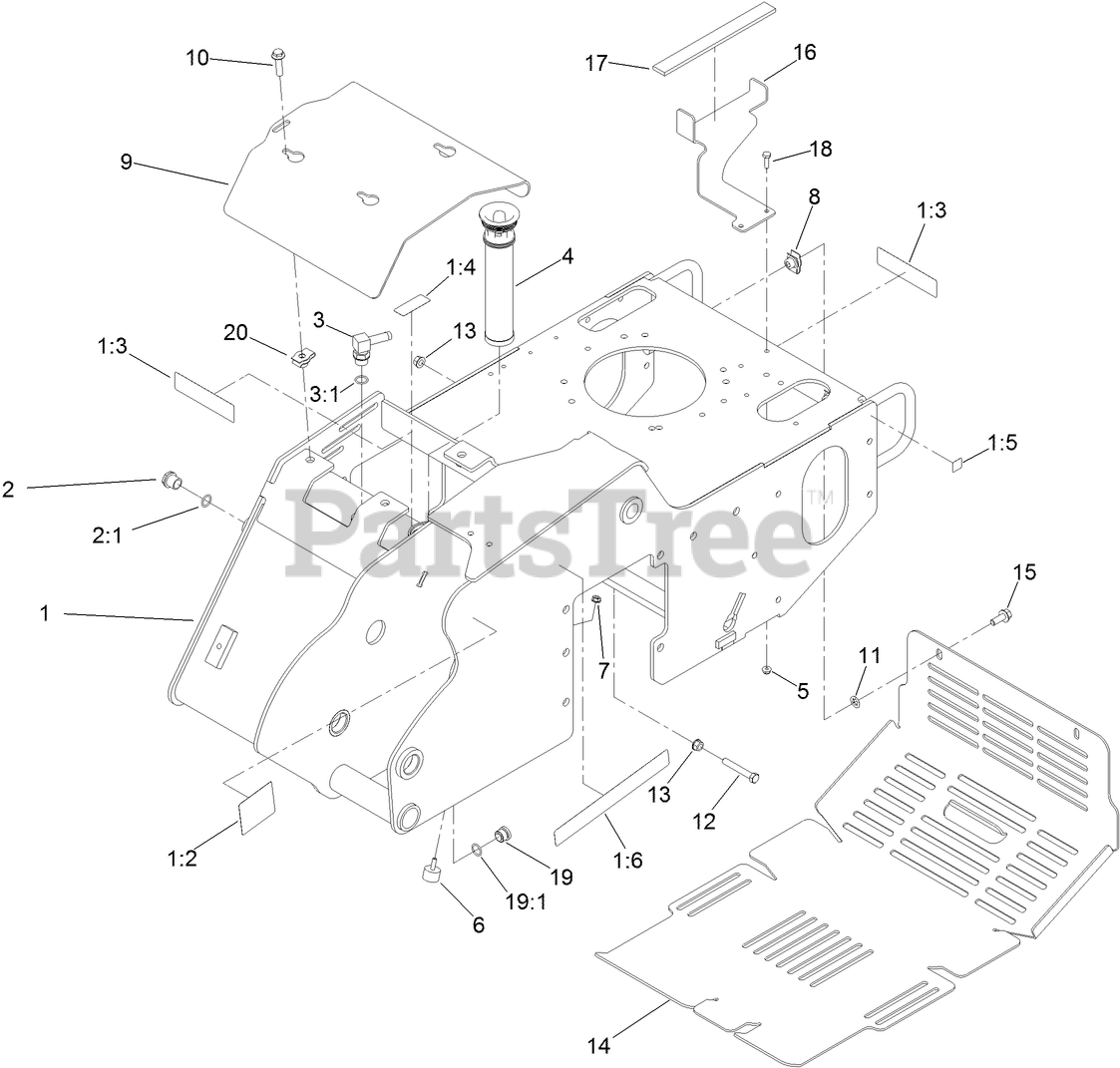

Frame Assembly Parts Diagram

  • Title

1

Toro 137-7628

MAIN FRAME ASM

$3439.99

$

Usually ships in 3-6 days

0

1:2

Toro 100-4650

DECAL-WARNING

$25.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7814

DECAL-DANGER

$12.99

$

Usually ships in 3-6 days

0

1:4

Toro 93-6686

DECAL-OIL, HYD

$8.99

$

Usually ships in 3-6 days

0

1:5

Toro 93-9084

DECAL-POINT, LIFT

$9.49

$

Usually ships in 3-6 days

0

1:6

Toro 138-7103

DECAL-INTELLITRENCH

$11.99

$

Usually ships in 3-6 days

0

2

Toro 114-3075

SIGHT GLASS ASM

$28.99

$

In Stock, only 1 left!

0

2:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

3

Toro 354-120

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

4

Toro 114-3039

IN-TANK FILTER ASM

$245.99

$

In Stock, only 1 left!

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

7

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

8

Toro 105-4886

NUT-TINNERMAN

$2.99

$

In Stock, only 1 left!

0

9

Toro 137-7623-03

PLATE-COVER, FRONT

$92.99

$

Usually ships in 3-6 days

0

10

Toro 3234-18

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

11

Toro 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 12

0

12

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

13

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

14

Toro 119-5106-01

COVER-REAR

$457.99

$

Usually ships in 3-6 days

0

15

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 15

0

16

Toro 119-5091-01

BRACKET-TANK

$50.99

$

Usually ships in 3-6 days

0

17

Toro 117-6417

PAD-FOAM

$9.49

$

Usually ships in 3-6 days

0

18

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 133-7659

PLUG ASM

$5.49

$

Usually ships in 3-6 days

0

19:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 17

0

20

Toro 112-4576

See Supercession: 105-4886
(Superseded to 105-4886)

$2.99

$

In Stock, only 1 left!

0
