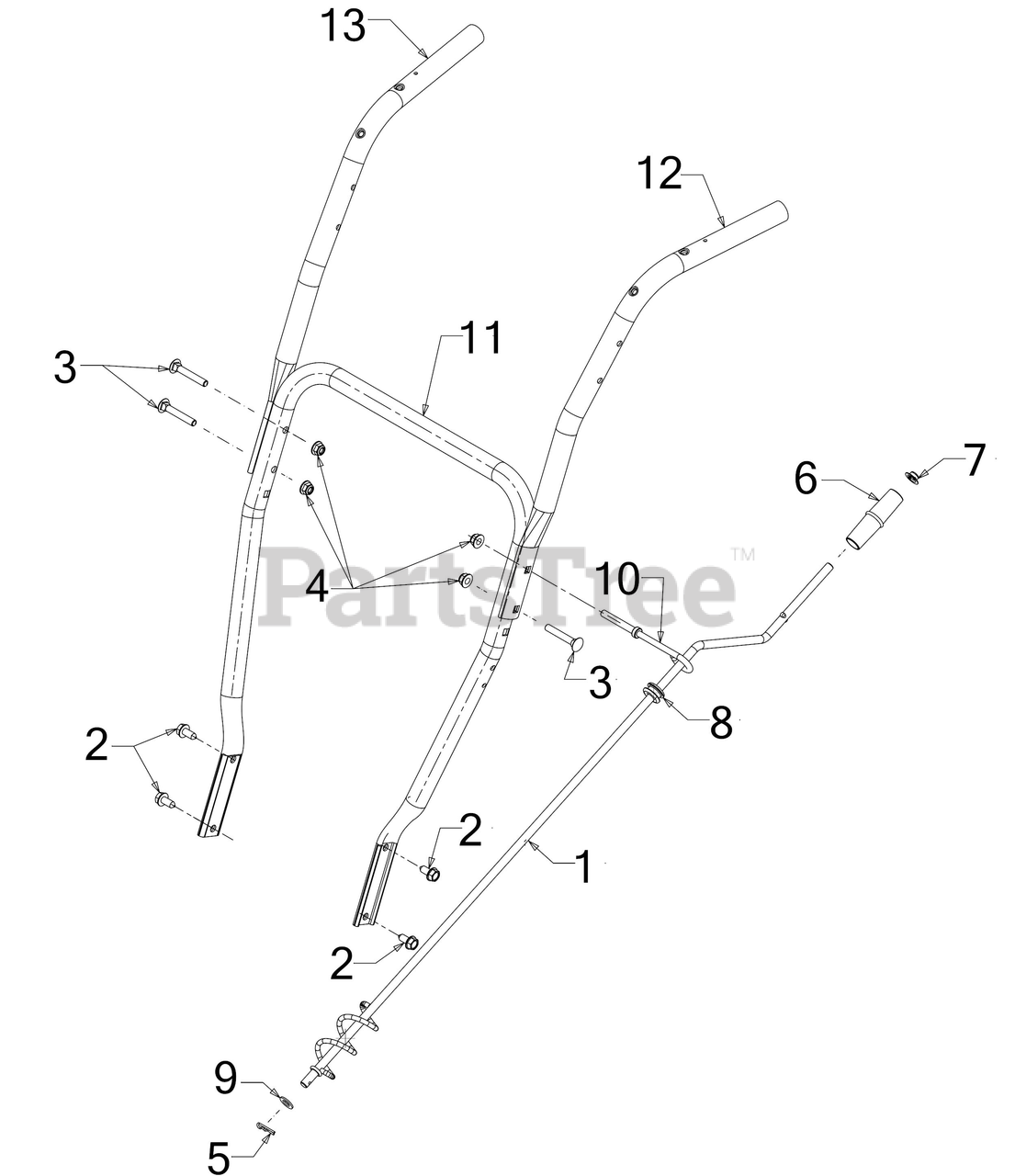

2410 (31BS6BN2711) - Troy-Bilt Storm 24" Snow Thrower (2016) Handle Parts Diagram

Storm 24" Snow Thrower

Handle Parts Diagram

  • Title

1

Troy-Bilt 684-04104-0637

CHUTE CRANK ASSEMBLY

$62.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-04532

CARRIAGE BOLT 5/16-18 x 2.00 GR5

$6.49

$

In Stock, Qty 6

0

4

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 914-0104

COTTER PIN .072 DIA
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 720-0201A

CHUTE CRANK KNOB

$10.99

$

In Stock, Qty 6

0

7

Troy-Bilt 926-0100

PUSH NUT
(Superseded to 726-0100)

$

$

Not available

8

Troy-Bilt 735-0234

GROMMET

$5.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 15

0

10

Troy-Bilt 747-04263

CHUTE CRANK EYEBOLT

$9.49

$

In Stock, only 3 left!

0

11

Troy-Bilt 749-04138C

LOWER HANDLE

Variations

Troy-Bilt 749-04138C-0637

Lower Handle, Snow - POWDER BLACK (0637)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138C-0662

HANDLE-LOWER SNO - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138C-0689

HANDLE-LOWER SNO - POLO GREEN (0689)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138C-0729

HANDLE-LOWER SNO - STORM GRAY (0729)

$77.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04138C-0638

Lower Handle, Snow - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 749-04138C-0650

HANDLE-LOWER SNO - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 749-04138C-0665

HANDLE-LOWER SNO - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 749-04138C-0668

HANDLE-LOWER SNO - MOSS GREEN (0668)

$

$

Not available

Troy-Bilt 749-04138C-0691

HANDLE-LOWER SNO - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 749-04138C-0709

HANDLE-LOWER SNO - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 749-04138C-4033

HANDLE-LOWER SNO - FLINT MICA (4033)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 749-05671

UPPER HANDLE (LH)

Variations

Troy-Bilt 749-05671-0637

HANDLE-UPPER LH - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-05671-0638

HANDLE-UPPER LH - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-05671-0691

HANDLE-UPPER LH - BLACK JACK (0691)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-05671-4033

HANDLE-UPPER LH - FLINT MICA (4033)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 749-05672

UPPER HANDLE (RH)

Variations

Troy-Bilt 749-05672-0637

HANDLE-UPPER RH - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-05672-0638

HANDLE-UPPER RH - MTD/TROY-BILT RED (0638)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-05672-4033

HANDLE-UPPER RH - FLINT MICA (4033)

$37.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-05672-0691

HANDLE-UPPER RH - BLACK JACK (0691)

$

$

Not available

$37.99

$

Usually ships in 3-6 days

0
