242 - Husqvarna Chainsaw (SN: 19900100001 - 19941400000) CLUTCH & OIL PUMP Parts Diagram

Chainsaw

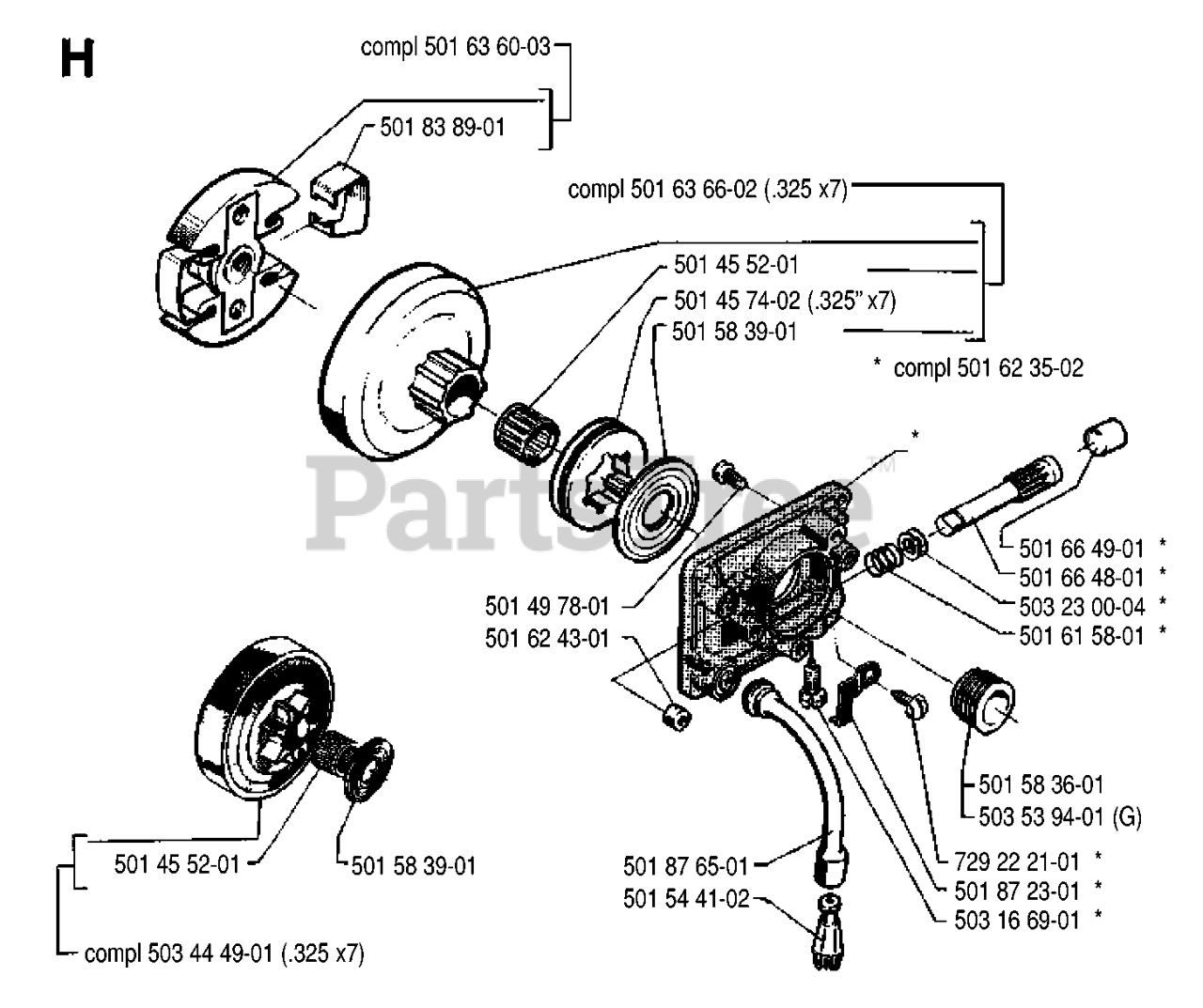

CLUTCH & OIL PUMP Parts Diagram

  • Title

501 58 39-01

Husqvarna 501583901

PROTECTOR

$

$

Not available

501 66 48-01

Husqvarna 501664801

PUMP PLUNGER

$

$

Not available

503 44 49-01

Husqvarna 503444901

29105 DRUM
(Superseded to 640200097)

Note: .325 X7

$

$

Not available

501 87 23-01

Husqvarna 501872301

Catch Adj.Screw

$

$

Not available

501 62 43-01

Husqvarna 501624301

GASKET

$

$

Not available

501 61 58-01

Husqvarna 501615801

SPRING

$6.49

$

Usually ships in 3-10 days

0

501 49 78-01

Husqvarna 501497801

SCREW
(Superseded to 725529406)

$5.99

$

In Stock, Qty 5

0

729 22 21-01

Husqvarna 729222101

SCREW CSK B4X6

$

$

Not available

501 66 49-01

Husqvarna 501664901

PLUG

$

$

Not available

501 63 60-03

Husqvarna 501636003

CLUTCH ASS'Y
(Superseded to 503657101)

$

$

Not available

503 23 00-04

Husqvarna 503230004

WASHER 6.1X9

$7.49

$

Usually ships in 3-10 days

0

501 87 65-01

Husqvarna 501876501

OIL HOSE

$11.99

$

Usually ships in 3-10 days

0

501 63 66-02

Husqvarna 501636602

CLUTCH DRUM
(Superseded to 501636604)

Note: .325 X7

$

$

Not available

501 54 41-02

Husqvarna 501544102

OIL SCREEN

$17.99

$

In Stock, Qty 5

0

503 53 94-01

Husqvarna 503539401

GEAR WHEEL

Note: G

$

$

Not available

501 62 35-02

Husqvarna 501623502

OIL PUMP

$

$

Not available

501 83 89-01

Husqvarna 501838901

SPRING

$

$

Not available

501 45 52-01

Husqvarna 501455201

19535 BEARING
(Superseded to 640200038)

$

$

Not available

501 45 74-02

Husqvarna 501457402

RIM SPROCKET 7T .325
(Superseded to 640200010)

Note: .325 X7

$8.49

$

In Stock, Qty 20+

0

503 16 69-01

Husqvarna 503166901

SCREW

$

$

Not available

501 58 36-01

Husqvarna 501583601

GEAR WHEEL

$

$

Not available
