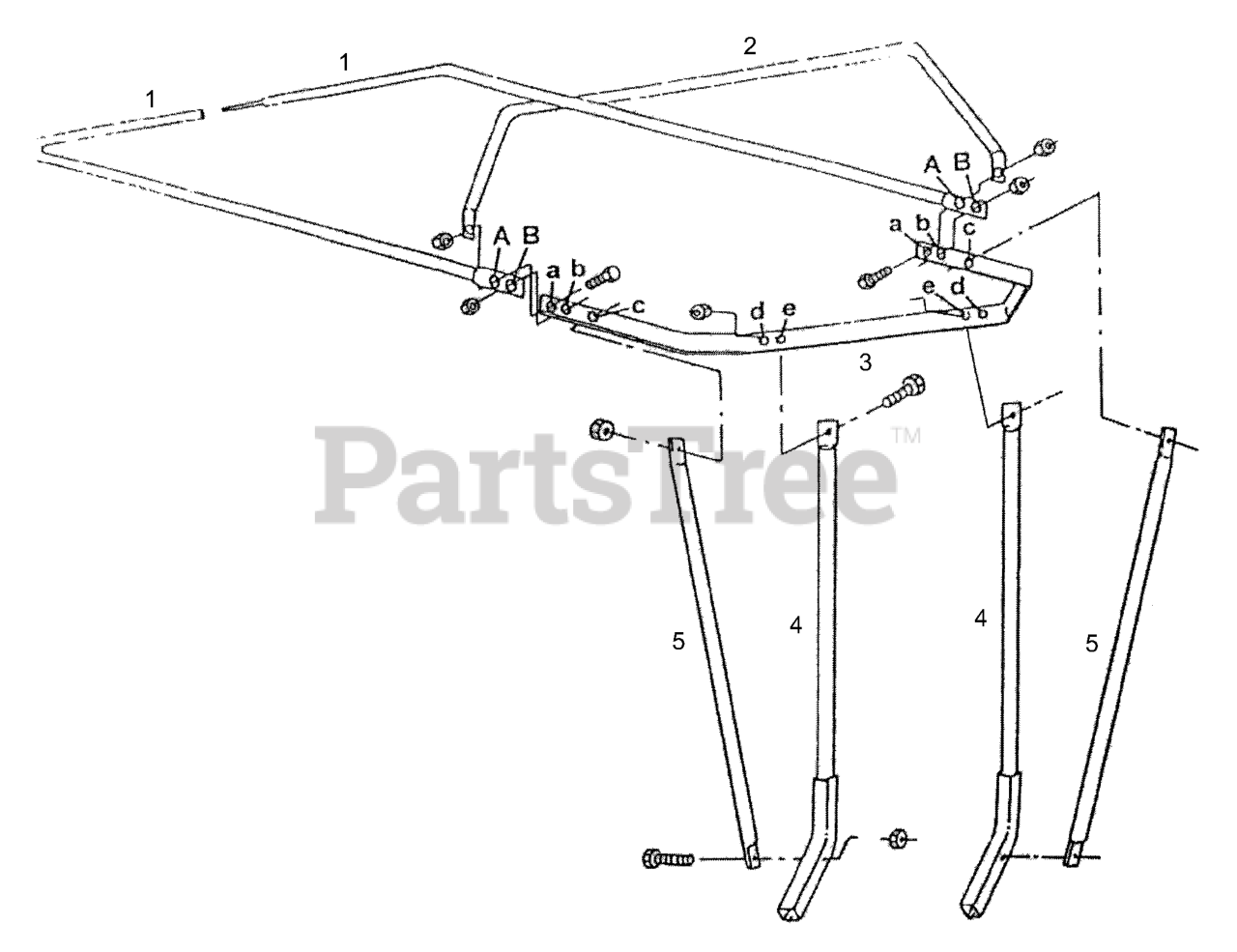

243001x00 - Murray Sun Shade (2001) Frame Assembly Parts Diagram

Sun Shade

Frame Assembly Parts Diagram

  • Title

A

Murray 7101243

RECEIVER, RH
(Superseded to 7101243YP)

$51.99

$

Usually ships in 2-12 days

0

B

Murray 7101244

RECEIVER, LH

$

$

Currently unavailable

C

Murray 7101236

CROSS BAR(Flat Fender LT Tractor ONLY)

$

$

Currently unavailable

D

UNKNOWN

$

$

Not available

E

UNKNOWN

$

$

Not available

1

Murray 7101237

BOW, FRONT (Tapered end)

$

$

Currently unavailable

1

Murray 7101238

BOW, FRONT

$

$

Currently unavailable

2

Murray 7101239

BOW, TOP
(Superseded to 7101239YP)

$

$

Not available

3

Murray 7101240

BOW, REAR
(Superseded to 7101240YP)

$34.99

$

Usually ships in 2-12 days

0

4

Murray 7101241

POST
(Superseded to 7101241YP)

$6.99

$

In Stock, Qty 6

0

5

Murray 7101246

BRACE
(Superseded to 7102573YP)

$128.99

$

Usually ships in 2-12 days

0

--

Murray 7101235

VINYL COVER

$

$

Currently unavailable

HWP

Murray 7101245

HARDWARE PACKAGE (Contents listed below)
(Superseded to 7101245YP)

$136.99

$

Usually ships in 2-12 days

0

HWP

BOLT, 1/4"-20x5/8" hex

$

$

Not available

HWP

BOLT, 1/4"-20 x 3/4" hex

$

$

Not available

HWP

BOLT, 1/4"-20 x 1 1/4" hex

$

$

Not available

HWP

WASHER, 1/4" FLAT

$

$

Not available

HWP

WASHER, 1/4" X 1 1/4" X 3/16" FENDER

$

$

Not available

HWP

LOCK NUT, 1/4"-20 TWO WAY

$

$

Not available

HWP

LOCK NUT, 1/4"-20 FLANGE

$

$

Not available

HWP

BOLT, 5/16"-18 x 3/4" hex

$

$

Not available

HWP

BOLT, 5/16"-18 x 1" hex

$

$

Not available

HWP

WASHER, 5/16" FLAT

$

$

Not available

HWP

NUT, 5/16" hex

$

$

Not available
