245-315B190 - White Outdoor Walk-Behind Lawn Vacuum, 8hp (1995) Wheel Pivot Bracket Assembly Parts Diagram

Walk-Behind Lawn Vacuum, 8hp

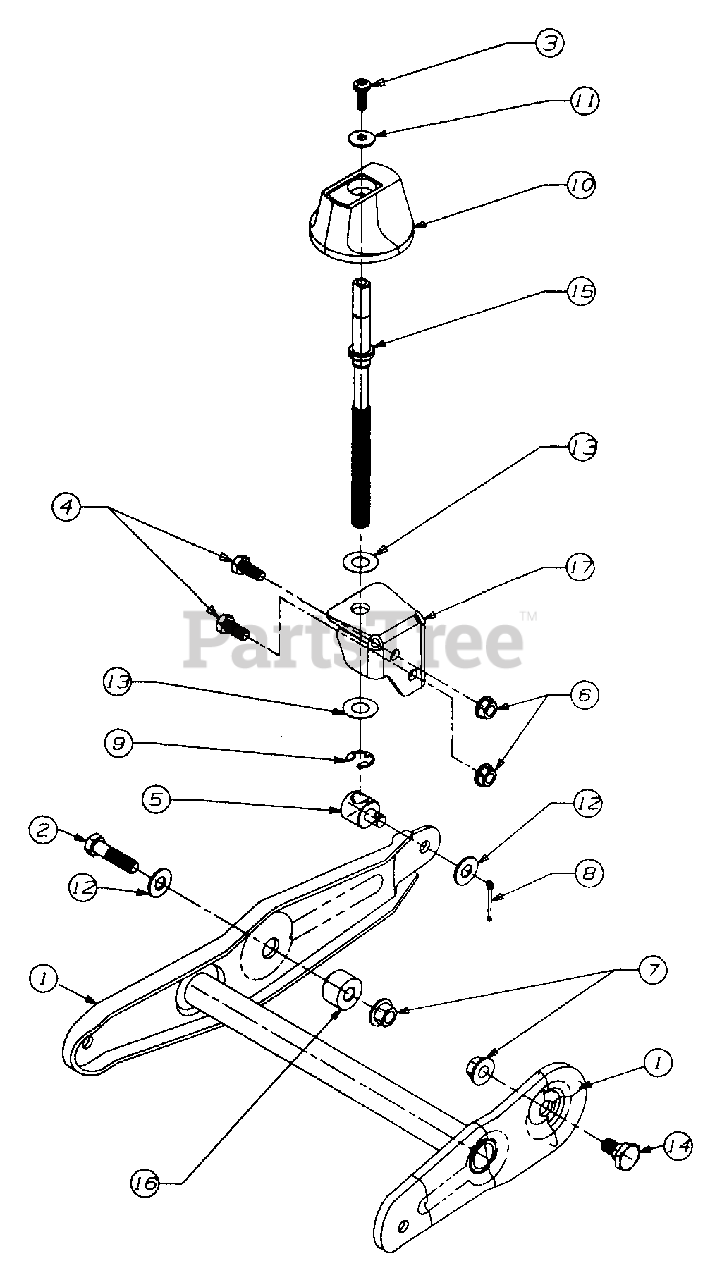

Wheel Pivot Bracket Assembly Parts Diagram

  • Title

1

White Outdoor 681-0070

BRKT ASSY - WHEEL PIVOT

Variations

White Outdoor 681-0070-0483

No Longer Available BRKT ASSY-WHL PIVO - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 681-0070-0498

No Longer Available BRKT ASSY-WHL PIVO - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 681-0070-0637

No Longer Available BRKT ASSY-WHL PIVO - POWDER BLACK (0637)

$

$

Not available

White Outdoor 681-0070-0638

No Longer Available BRKT ASSY-WHL PIVO - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 681-0070-0662

No Longer Available BRKT ASSY-WHL PIVO - OYSTER GRAY (0662)

$

$

Not available

$

$

2

White Outdoor 710-0520

SCREW - HEX

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0924

SCREW - MACHINE PAN HD

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-3008

SCREW - HEX

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 711-1041

FERRULE - ADJUSTABLE

$

$

Not available

6

White Outdoor 712-3004A

NUT - HEX FLANGE

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-3005

NUT - HEX FLANGE LOCK

$6.99

$

Usually ships in 3-6 days

0

8

White Outdoor 714-0115

PIN - COTTER

$3.99

$

Usually ships in 3-6 days

0

9

White Outdoor 716-0104

RING - E
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 17

0

10

White Outdoor 720-0236

KNOB - PLASTIC
(Superseded to 920-0236)

$18.99

$

Usually ships in 3-6 days

0

11

White Outdoor 736-0270

WASHER - BELL

$3.99

$

In Stock, Qty 9

0

12

White Outdoor 736-0300

WASHER - FLAT

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 736-0369

WASHER - FLAT

$4.49

$

In Stock, Qty 6

0

14

White Outdoor 738-0258

SCREW - SHOULDER
(Superseded to 938-0258)

$

$

Not available

15

White Outdoor 747-0631

ROD - ADJUSTABLE

$

$

Not available

16

White Outdoor 750-0985

SPACER

$

$

Not available

17

White Outdoor 781-0605

BRACKET - HEIGHT ADJ

Variations

White Outdoor 781-0605-0637

BRACKET-HGT-ADJ - POWDER BLACK (0637)

$

$

Not available

White Outdoor 781-0605-0662

BRACKET-HGT-ADJ - OYSTER GRAY (0662)

$

$

Not available

$

$

788-0637

BLACK

$

$

Not available

788-0662

OYSTER GRAY

$

$

Not available
