247.203730 (13AD78XS099) - Craftsman T1400 Lawn Tractor (2014) Engine Accessories Parts Diagram

T1400 Lawn Tractor

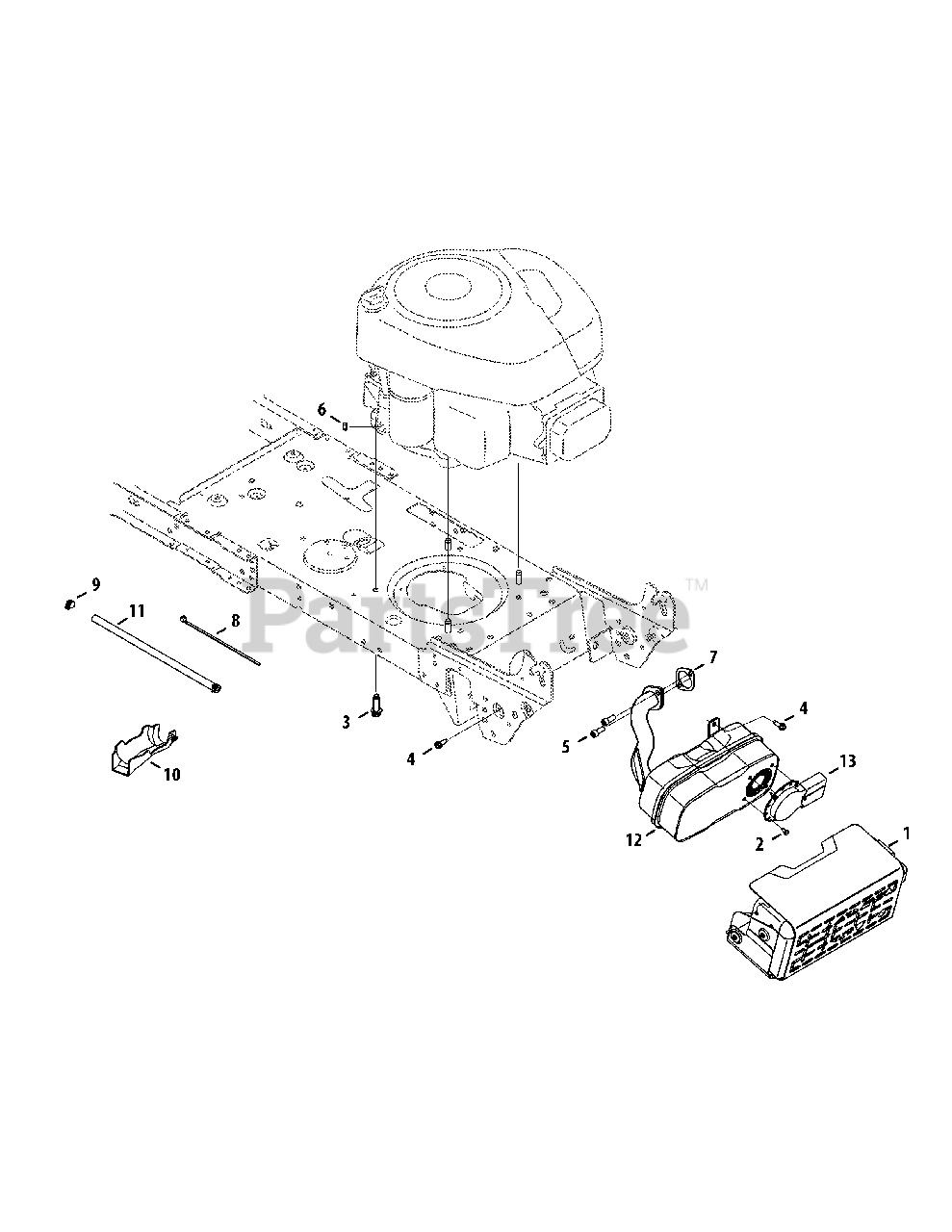

Engine Accessories Parts Diagram

  • Title

1

MTD 683-04549-0637

Muffler Shield
(Superseded to 683-05460A-0637)

$80.99

$

Usually ships in 3-6 days

0

1

MTD 710-05070A

Tan Torx Screw 1/4

Note: Not Shown

$6.99

$

In Stock, Qty 12

0

1

MTD 747-06404

Muffler Shield Rod
(Superseded to 747-06404A-0637)

Note: Not Shown

$7.49

$

Usually ships in 3-6 days

0

2

MTD 710-0227

Screw, #8-18 x .500

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-04683A

Tap Screw, 3/8-16 x 1.000
(Superseded to 710-04683C)

$6.49

$

In Stock, Qty 8

0

4

MTD 710-0642

Tap Screw, 1/4-20 x 7.50

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-1314A

SOC Head Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-0271

SEMS Nut, 1/4-20

$4.49

$

In Stock, Qty 18

0

7

MTD BS-692236

Exhaust Gasket

$5.49

$

In Stock, Qty 20+

0

8

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 3 left!

0

9

MTD 726-0205

Hose Clamp, .490 Dia.

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-05628

Oil Drain Sleeve

$8.49

$

Usually ships in 3-6 days

0

11

MTD 751-10349-13

Fuel Hose, 1/4

$17.99

$

In Stock, Qty 7

0

12

MTD 751-10448D

Muffler
(Superseded to 951-10448D)

$

$

Not available

13

MTD 751-11053A

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 16

0

Engine

Note: (B&S Model Number 31R977-0017-G1)(purchase locally)

$

$

Not available
