247.270200 (13A-328-099) - Craftsman Lawn Tractor (2003) (Sears) Grass Bag Assembly Parts Diagram

Lawn Tractor

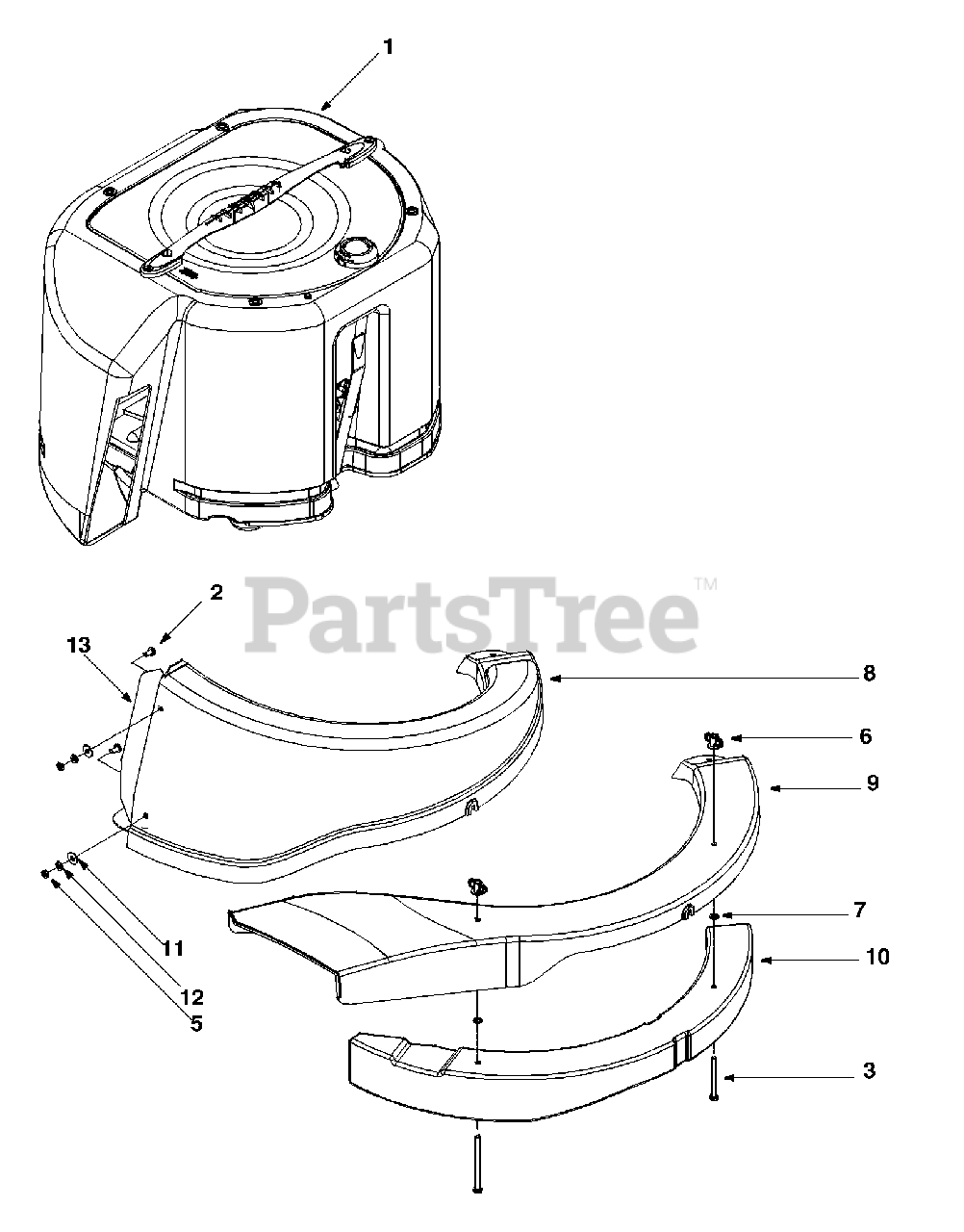

Grass Bag Assembly Parts Diagram

  • Title
1

MTD 631-0084

Grass Bag Assembly

$

$

Not available

2

MTD 710-0286

Pan Hd. Machine Screw 1/4-20 x 0.5

$4.49

$

Usually ships in 3-6 days

0

3

MTD 710-0564

Hex Screw 1/4-20 x 2.75

$6.99

$

In Stock, only 3 left!

0

?4

MTD 710-0825

Hex Screw 1/4-20 x 3.75

$5.49

$

In Stock, only 1 left!

0

5

MTD 712-0298

Jam Nut
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

6

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

7

MTD 726-0271

Push Nut
(Superseded to 926-0271)

$6.49

$

In Stock, only 2 left!

0

8

MTD 731-1743A

Chute: Bagger

$

$

Not available

9

MTD 731-1744

Discharge Chute: Side-Discharge

$

$

Not available

10

MTD 731-1745A

Mulching Plug

$

$

Not available

11

MTD 736-0173

Flat Washer

$4.49

$

In Stock, only 4 left!

0

12

MTD 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

13

MTD 783-0645A

Deflector Plate: Bagger Chute

Variations

MTD 783-0645A-0637

Deflector Plate - POWDER BLACK (0637)

$

$

Not available

$

$
