247.777630 (24A-203D099) - Craftsman Shredder Vacuum (1999) (Sears) Impeller Assembly (Part 1) Parts Diagram

Shredder Vacuum

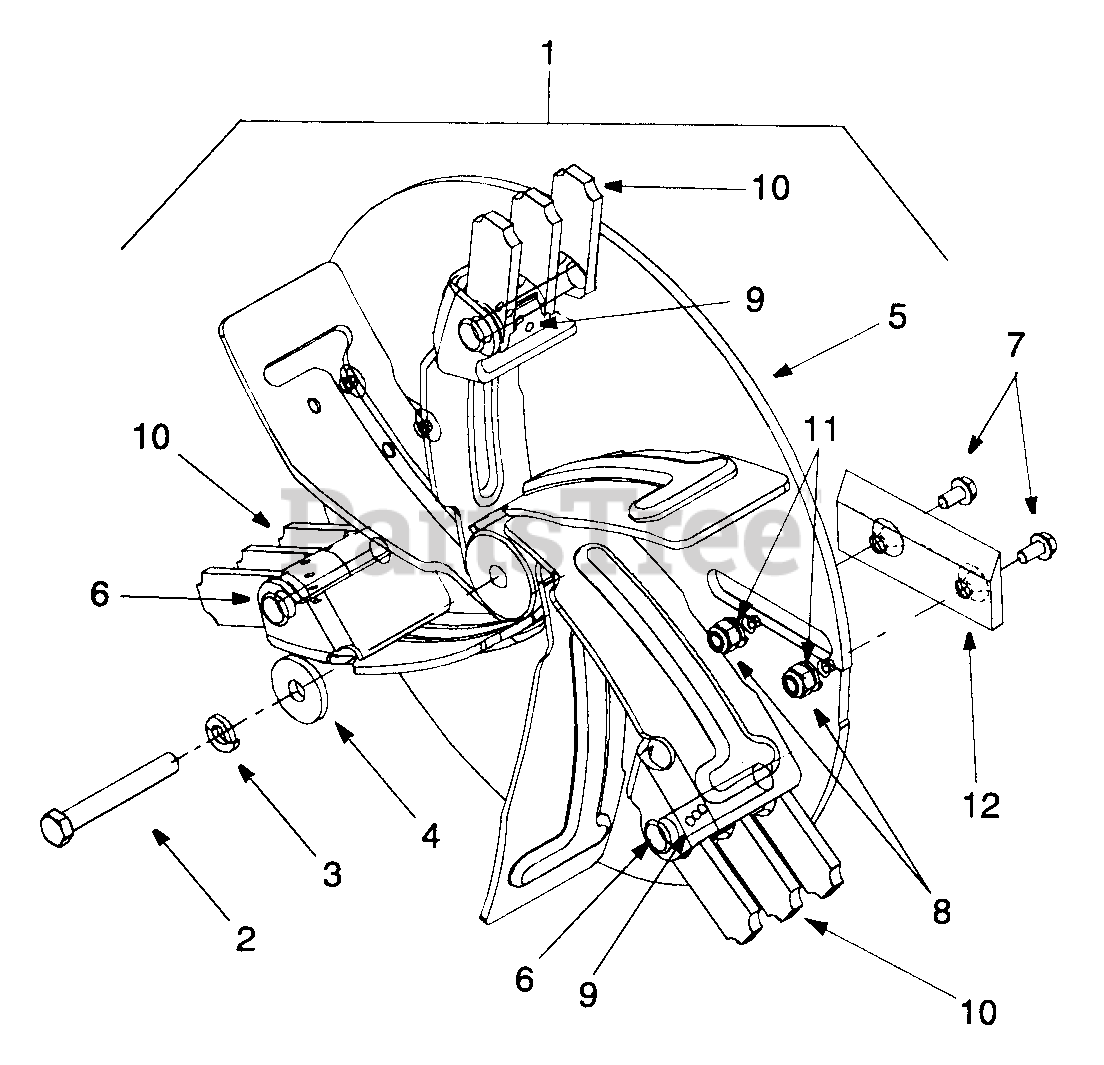

Impeller Assembly (Part 1) Parts Diagram

  • Title

1

MTD 681-0108

Impeller Ass'y
(Superseded to 981-04090)

Note: (Includes Keys 5-13)

$372.99

$

Usually ships in 3-6 days

0

2

MTD 710-1273

Screw, Hex Cap, 3/8-24 x 2.75 GR5

$7.49

$

Usually ships in 3-6 days

0

3

MTD 736-0217

Washer, Lock, 3/8 Heavy Duty

$3.99

$

In Stock, Qty 13

0

4

MTD 736-0247

Washer, Flat, .406 x 1-1/4 HD

$8.99

$

In Stock, Qty 20+

0

5

MTD 681-0107

Impeller
(Superseded to 981-04090)

$372.99

$

Usually ships in 3-6 days

0

6

MTD 711-0833B

Pin, Clevis
(Superseded to 911-0833B)

$11.99

$

In Stock, only 3 left!

0

7

MTD 710-1054

Screw, Flat Hd. Cap, 5/16-24 x 1.0

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-0411

Nut, Hex Insert Lock, 5/16-24

$3.99

$

In Stock, Qty 20+

0

9

MTD 715-0166

Pin, Spirol,.156x1.000 Std.

$6.49

$

In Stock, Qty 20+

0

10

MTD 719-0329

Blade, Flail

$31.99

$

In Stock, Qty 20+

0

11

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

MTD 781-0490

Blade, Chipper
(Superseded to 981-0490)

$30.99

$

In Stock, Qty 20+

0

MTD 781-0735

Clip, Retainer

Note: (Not Shown)

$3.99

$

In Stock, Qty 20+

0
