247.883963 (31AH5DTH799) - Craftsman Snow Thrower (2016) Chute Parts Diagram

Snow Thrower

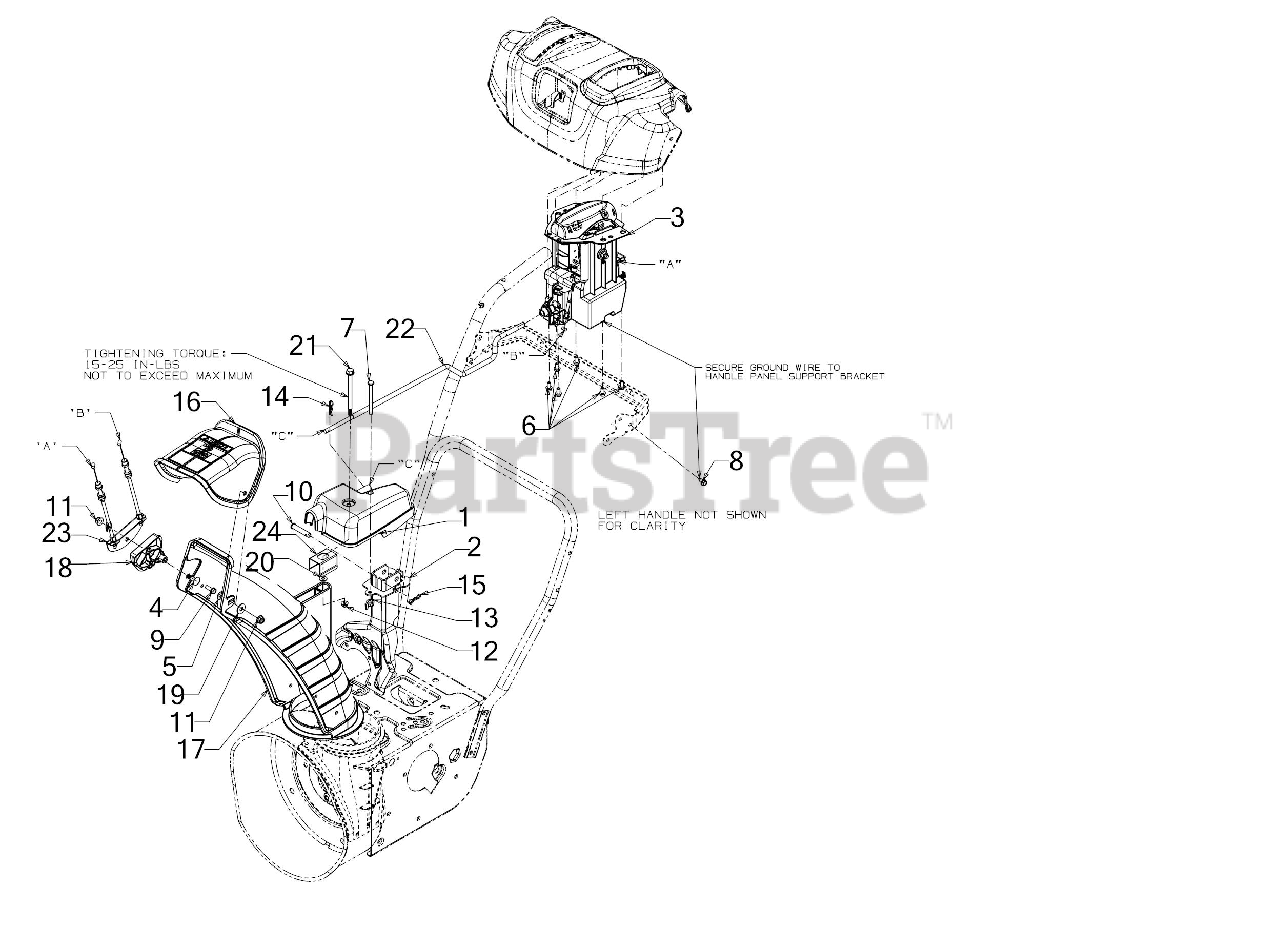

Chute Parts Diagram

  • Title

1

MTD 918-04932B

WORM GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$77.99

$

Usually ships in 3-6 days

0

2

MTD 684-04310A-0637

CHUTE SUPPORT BRACKET ASSEMBLY
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

3

MTD 984-05051

4-WAY CHUTE CONTROL ASSEMBLY

Note: (See Separate Breakdown)

$414.99

$

In Stock, only 1 left!

0

4

MTD 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

5

MTD 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.49

$

In Stock, Qty 16

0

6

MTD 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 10

0

7

MTD 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, only 1 left!

0

8

MTD 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 20+

0

10

MTD 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, Qty 8

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-3087

WING NUT 1/4-20

$3.99

$

Usually ships in 3-6 days

0

14

MTD 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

15

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

MTD 731-04427A

UPPER REMOTE CHUTE WITH LABEL
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

17

MTD 731-06440A

LOWER CHUTE 5" DIA

$51.99

$

In Stock, Qty 20+

0

18

MTD 731-06451

CABLE CHUTE GUIDE

$4.99

$

In Stock, only 1 left!

0

19

MTD 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

20

MTD 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 6

0

21

MTD 738-04367

SHOULDER SCREW

$4.99

$

In Stock, only 1 left!

0

22

MTD 747-05721

ELECTRIC CHUTE CRANK ROD

$28.99

$

Usually ships in 3-6 days

0

23

MTD 784-5594-0637

CABLE BRACKET

$11.99

$

In Stock, only 1 left!

0

24

MTD 790-00503

CHUTE BRACKET

$6.49

$

In Stock, only 1 left!

0
