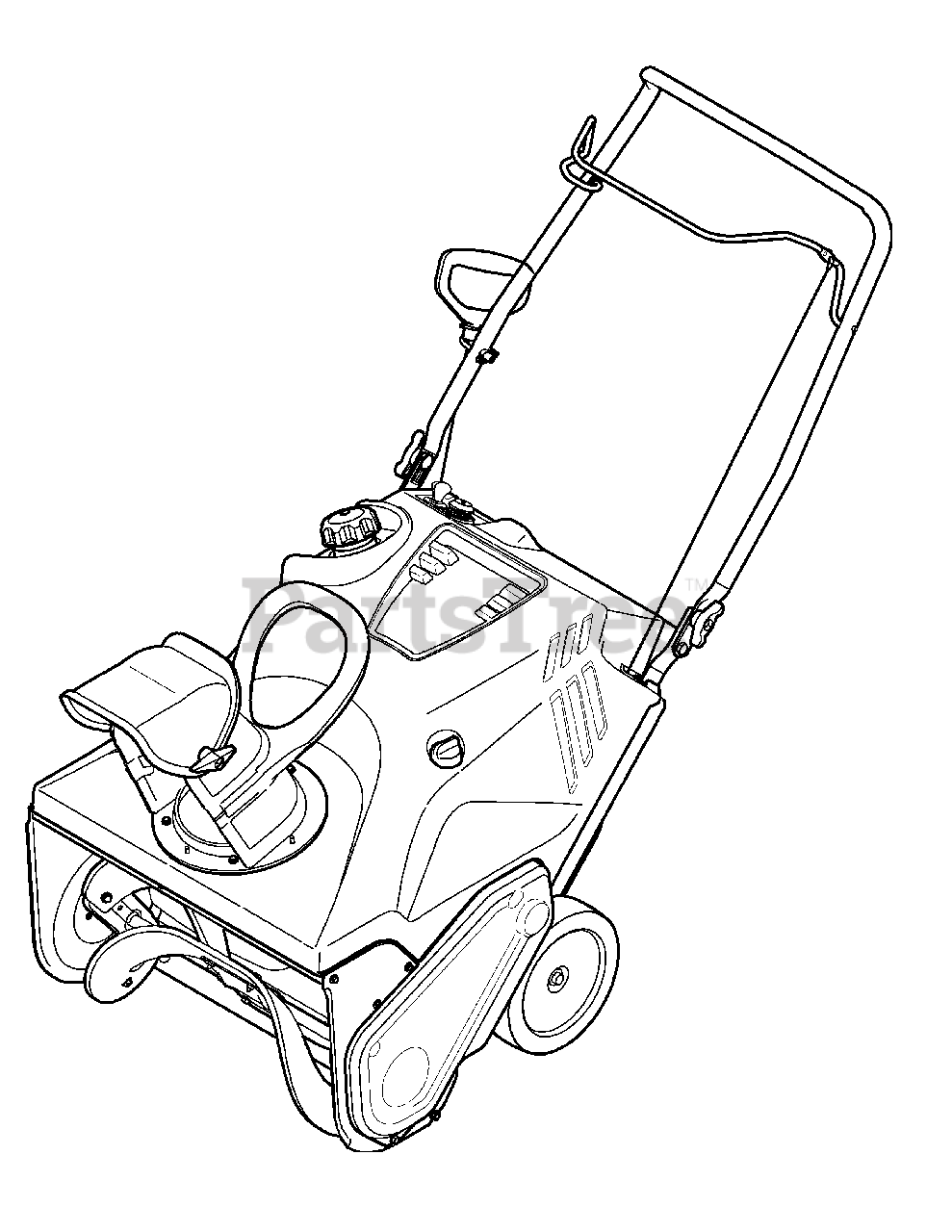

247.887801 (31AS2S5D799) - Craftsman Snow Thrower (2011) (Sears) .Quick Reference Parts Diagram

Snow Thrower

.Quick Reference Parts Diagram

  • Title

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

MTD 731-05632

Key, Ignition
(Superseded to 951-10630)

$6.49

$

In Stock, Qty 18

0

MTD 929-0071A

Extension Cord
(Superseded to 929-0071B)

$22.99

$

Usually ships in 3-6 days

0

MTD 946-04701

Auger Cable

$21.99

$

In Stock, only 1 left!

0

MTD 984-04364

Auger Paddle Assembly Complete

$230.99

$

Usually ships in 3-6 days

0

MTD 731-08171

Shave Plate

$17.99

$

In Stock, Qty 20+

0

MTD 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

MTD 735-04237

Rubber Paddle

$22.99

$

In Stock, only 2 left!

0

MTD 753-06469

Auger Rubber Paddle Replacement Kit

Note: (Inc. 2 Paddles and 12 Hex Washer Screws)

$86.99

$

In Stock, Qty 20+

0

MTD 734-1781

Wheel

$30.99

$

In Stock, Qty 10

0
