247.887870 (31A-62BD799) - Craftsman Snow Thrower (2011) (Sears) Drive Assembly Parts Diagram

Snow Thrower

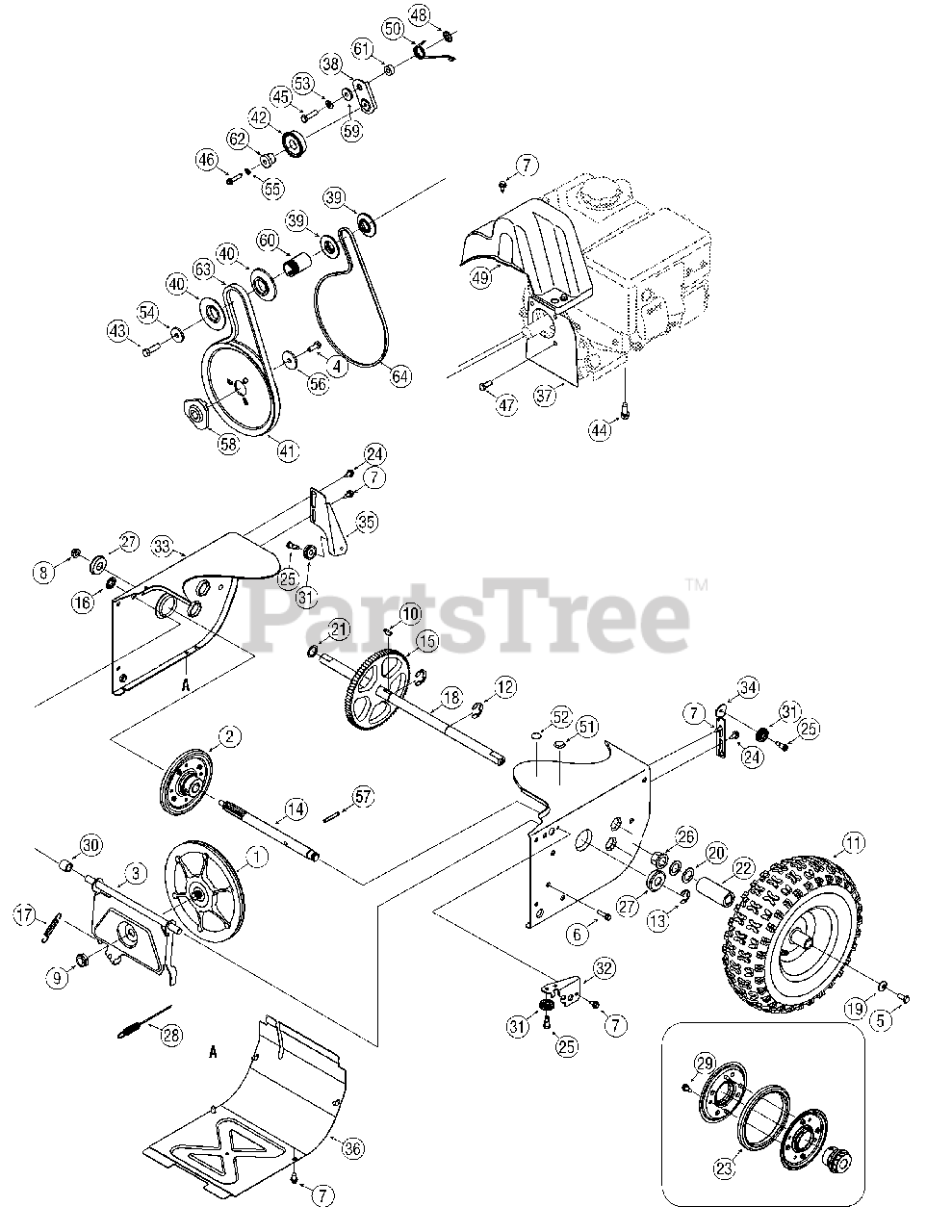

Drive Assembly Parts Diagram

  • Title

1

MTD 656-04055

Disc Assembly, Friction Wheel
(Superseded to 656-04055A)

$55.99

$

In Stock, only 2 left!

0

2

MTD 684-04360

Friction Wheel Assembly
(Superseded to 684-04360A)

$67.99

$

Usually ships in 3-6 days

0

3

MTD 684-04154B-0637

Friction Wheel Support Bracket

$38.99

$

Usually ships in 3-6 days

0

4

MTD 710-1245B

Screw, 5/16-24 x .875

$7.99

$

In Stock, only 4 left!

0

5

MTD 710-0627

Hex Head Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0788

Taptite Screw, 1/4-20 x 1.000

$6.99

$

In Stock, only 4 left!

0

7

MTD 710-1652

Taptite Screw, 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

10

MTD 914-0126

Hi-pro Key, 3/16 x 3/4 Dia.
(Superseded to 714-0126)

$4.49

$

In Stock, Qty 20+

0

11

MTD 634-04144A-0911

Snow Hog Wheel, 13 x 4 x 6

$178.99

$

Usually ships in 3-6 days

0

12

MTD 716-0136

Retaining E-Ring, .875 Dia.

$8.49

$

In Stock, Qty 9

0

13

MTD 916-0231

E-Ring, .750 Dia.
(Superseded to 716-0231)

$

$

Not available

14

MTD 917-04793

Shaft, Single-Speed

$59.99

$

Usually ships in 3-6 days

0

15

MTD 917-04230

Gear, 80-Tooth

$100.99

$

Usually ships in 3-6 days

0

16

MTD 726-0221

Speed Nut, .500

$5.99

$

In Stock, only 2 left!

0

17

MTD 932-0264

Extension Spring

$4.49

$

In Stock, Qty 20+

0

18

MTD 938-04181

Axle, .75 x 20

$53.99

$

Usually ships in 3-6 days

0

19

MTD 736-0242

Bell Washer, .340 x .872 x .060

$3.99

$

In Stock, Qty 20+

0

20

MTD 936-0287

Flat Washer, .793 x 1.24 x .060
(Superseded to 736-0287)

$

$

Not available

21

MTD 736-04161

Flat Washer, .75 x 1.00 x .060

$6.49

$

In Stock, only 2 left!

0

22

MTD 731-04877

Spacer, 1.25 x .75 x 2.0

$3.99

$

Usually ships in 3-6 days

0

23

MTD 935-04054

Friction Wheel Rubber
(Superseded to 935-04054A)

$37.99

$

In Stock, Qty 8

0

24

MTD 738-04184A

Shoulder Screw, .368 x .113, 1/4-20

$6.49

$

In Stock, Qty 20+

0

25

MTD 738-0924A

Shoulder Screw, 1/4-28, .340 x .355

$6.49

$

In Stock, Qty 6

0

26

MTD 941-0245

Hex Flange Bearing

$9.49

$

In Stock, Qty 20+

0

27

MTD 941-0563

Ball Bearing, 17 x 40 x 12

$33.99

$

In Stock, Qty 20+

0

28

MTD 946-04229B

Wheel Clutch Cable, 44.95"

$20.99

$

In Stock, only 1 left!

0

29

MTD 710-0896

Screw, 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

30

MTD 748-0190

Spacer, .508 ID x .75 OD x .68

$5.99

$

In Stock, only 1 left!

0

31

MTD 756-0625

Cable Roller

$8.99

$

In Stock, Qty 20+

0

32

MTD 790-00096-0637

Auger Cable Front Guide Bracket
(Superseded to 790-00096B-0637)

$8.99

$

In Stock, only 1 left!

0

33

MTD 790-00180A-4044

Frame
(Superseded to 790-00180D-4044)

$142.99

$

Usually ships in 3-6 days

0

34

MTD 790-00206A-0637

Auger Cable Guide Bracket
(Superseded to 790-00206B)

$7.99

$

In Stock, only 1 left!

0

35

MTD 790-00207B

Drive Cable Guide Bracket
(Superseded to 790-00207D)

$10.99

$

In Stock, only 3 left!

0

36

MTD 790-00316-4044

Frame Cover

$44.99

$

Usually ships in 3-6 days

0

37

MTD 790-00289A-0637

Cover Plate, Standard
(Superseded to 790-00289B-0637)

$24.99

$

Usually ships in 3-6 days

0

38

MTD 790-00208C

Wheel Drive Idler Bracket
(Superseded to 790-00208D)

$8.49

$

In Stock, only 2 left!

0

39

MTD 756-04252

Pulley Half, 3/8 x 1.716 OD

$5.99

$

In Stock, only 3 left!

0

40

MTD 756-04113

Pulley Half, 2.600 OD

$12.99

$

In Stock, only 4 left!

0

41

MTD 756-04109

Auger Drive Pulley, 8.1 x .5

$50.99

$

In Stock, only 3 left!

0

42

MTD 684-04169

Idler Pulley Assembly

$31.99

$

Usually ships in 3-6 days

0

43

MTD 710-0191

Hex Screw, 3/8-24 x 1.25

$4.49

$

In Stock, Qty 8

0

44

MTD 710-0654A

Sems Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

45

MTD 710-0672

Hex Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-0809

Hex Screw, 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

47

MTD 738-04439

Shoulder Screw, 5/16-24 x .5

$3.99

$

In Stock, Qty 7

0

48

MTD 926-04012

Push-on Nut, .25 Dia.
(Superseded to 726-04012)

$

$

Not available

49

MTD 731-04792A

Belt Cover
(Superseded to 731Z04792F)

$23.99

$

In Stock, only 2 left!

0

50

MTD 732-04308A

Torsion Spring, .850 ID x .333
(Superseded to 732-04308C)

$4.99

$

In Stock, Qty 12

0

51

MTD 735-04099

Plug, 3/8 ID

$5.49

$

Usually ships in 3-6 days

0

52

MTD 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

53

MTD 936-0119

Lock Washer, 5/16

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0247

Flat Washer, .406 x 1.25 x .157

$8.99

$

In Stock, Qty 20+

0

55

MTD 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 12

0

56

MTD 736-0505

Flat Washer, .34 x 1.50 x .150

$5.99

$

In Stock, Qty 6

0

57

MTD 715-04020

Pin, Spirol, 2.5"

$11.99

$

In Stock, only 2 left!

0

58

MTD 748-04053A

Adapter Pulley, .75 Dia.

$20.99

$

In Stock, only 1 left!

0

59

MTD 748-04112B

Shoulder Spacer, .3175 x .5 x .0975

$3.99

$

In Stock, only 1 left!

0

60

MTD 750-04303

Spacer, .875 ID x 1.185 OD

$16.99

$

In Stock, only 1 left!

0

61

MTD 750-04477A

Spacer, .340 x .750 x .330

$4.99

$

In Stock, Qty 6

0

62

MTD 750-04571

Shoulder Spacer, .260 x .785 x .538

$6.49

$

In Stock, Qty 6

0

63

MTD 954-04050

Auger Drive Belt
(Superseded to 954-04050A)

$27.99

$

In Stock, Qty 20+

0

64

MTD 954-04260

Wheel Drive Belt

$28.99

$

In Stock, Qty 6
