247.985370 (31AS53SF793) - Craftsman Snow Thrower (2013) Chute Control Parts Diagram

Snow Thrower

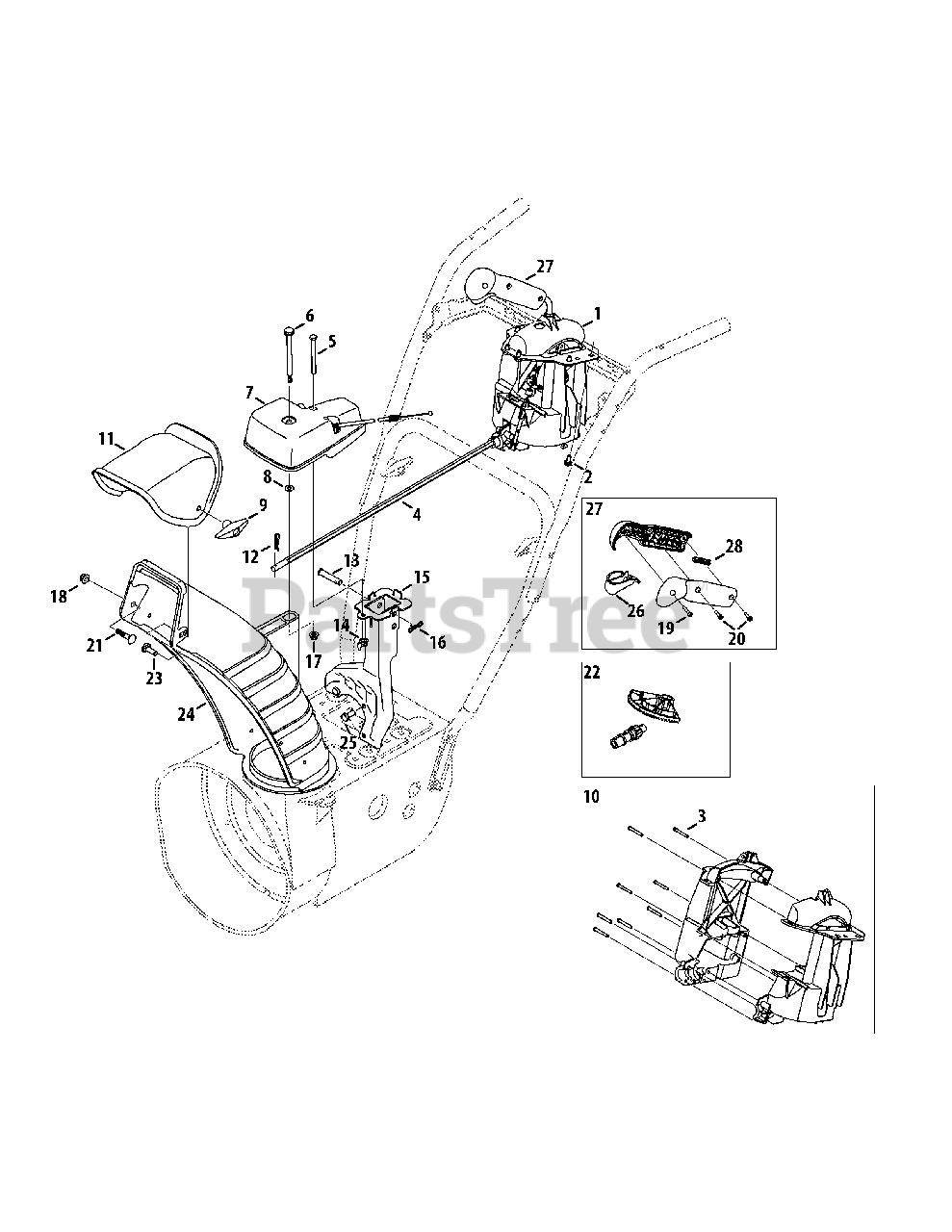

Chute Control Parts Diagram

  • Title

1

MTD 984-04348

2-Way Chute Control Assembly

$130.99

$

In Stock, only 3 left!

0

2

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

3

MTD 710-1256

Screw, #8-18 x 1.250

$5.99

$

In Stock, Qty 5

0

4

MTD 747-05116

Chute Rod

$30.99

$

In Stock, only 1 left!

0

5

MTD 710-04370

Hex Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

6

MTD 738-04367

Flange Shoulder Screw

$4.99

$

In Stock, only 1 left!

0

7

MTD 918-04801A

Gearbox Assembly
(Superseded to 918-04801B)

$128.99

$

In Stock, only 3 left!

0

7

MTD 710-04373A

Screw-Hl #12-16 .7

$4.49

$

In Stock, Qty 15

0

7

MTD 711-05186

Shaft-Worm Drv Hex

$10.99

$

In Stock, only 4 left!

0

7

MTD 712-0896

Nut-Hex Ins-L

$4.99

$

In Stock, Qty 6

0

7

MTD 717-04667

Gear-14T Helical
(Superseded to 717-04667B)

$10.99

$

In Stock, Qty 9

0

7

MTD 717-04672

Gear-Worm
(Superseded to 717-04672A)

$9.49

$

In Stock, Qty 5

0

7

MTD 731-06906

Cover-Chute Grbx

$19.99

$

Usually ships in 3-6 days

0

7

MTD 732-04638C

Spring-Torsion
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

7

MTD 736-0290

Washer-Fl

$6.99

$

In Stock, Qty 20+

0

7

MTD 738-04391

Bolt-Shoulder

$5.99

$

In Stock, only 3 left!

0

7

MTD 941-0225

Flange Bearing

$7.49

$

In Stock, Qty 20+

0

7

MTD 946-04619B

Cable-Chute Lock

$34.99

$

In Stock, only 1 left!

0

7

MTD 790-00342B-0637

Bracket-Rotate Grb
(Superseded to 790-00342C-0637)

$28.99

$

Usually ships in 3-6 days

0

7

MTD 731-06943A

Pawl-Chute Lock

$4.99

$

In Stock, Qty 9

0

7

MTD 741-04388A

Brg-Hex Flange

$7.49

$

In Stock, only 1 left!

0

8

MTD 736-04446

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, Qty 6

0

9

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

10

MTD 753-06153

Handle Housing Assembly

$85.99

$

In Stock, only 1 left!

0

11

MTD 731-04426A

Upper Chute
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 6

0

12

MTD 914-0101

Cotter Pin
(Superseded to 714-0101)

$

$

Not available

13

MTD 711-04469A

Clevis Pin

$5.99

$

In Stock, Qty 8

0

14

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 684-04311A-0637

Chute Support Bracket

$42.99

$

Usually ships in 3-6 days

0

16

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

17

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

20

MTD 710-04879

Screw, Mach., #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

21

MTD 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

22

MTD 753-06152

Gear Set Assembly

$25.99

$

In Stock, only 3 left!

0

23

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

24

MTD 731-06440A

Lower Chute

$51.99

$

In Stock, Qty 20+

0

25

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

26

MTD 731-07031

Handle Lever

$7.49

$

In Stock, only 1 left!

0

27

MTD 753-06151

Handle Assembly

$28.99

$

In Stock, only 2 left!

0

28

MTD 731-04893A

Handle Plunger

$6.49

$

In Stock, only 1 left!

0
