247.985390 (31AH55TH793) - Craftsman Snow Thrower (2013) Chute Control Parts Diagram

Snow Thrower

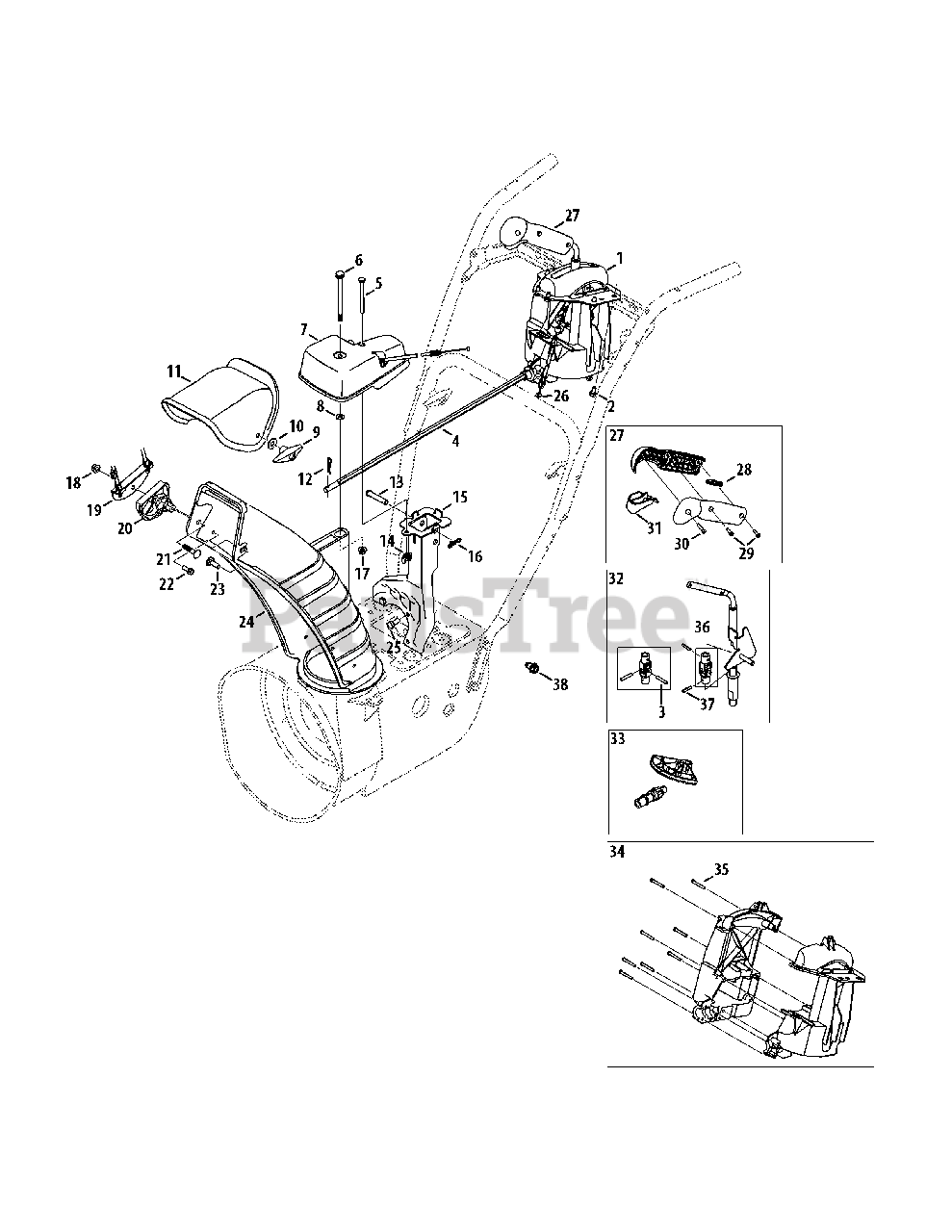

Chute Control Parts Diagram

  • Title

1

MTD 984-04338A

4-Way Chute Control™ Assembly

$217.99

$

In Stock, only 1 left!

0

2

MTD 710-04187

Hi-Lo Screw, 1/4-15 x 0.5
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

3

MTD 715-0150

Roll Pin

$4.49

$

In Stock, Qty 20+

0

4

MTD 747-05116

Chute Rod

$30.99

$

In Stock, only 1 left!

0

5

MTD 710-04370

Hex Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

6

MTD 738-04367

Flange Shoulder Screw

$4.99

$

In Stock, only 1 left!

0

7

MTD 918-04801A

4-Way Chute Gearbox Assembly
(Superseded to 918-04801B)

$128.99

$

In Stock, only 3 left!

0

7

MTD 710-04373A

Screw-Hl #12-16 .7

$4.49

$

In Stock, Qty 15

0

7

MTD 711-05186

Shaft-Worm Drv Hex

$10.99

$

In Stock, only 4 left!

0

7

MTD 712-0896

Nut-Hex Ins-L

$4.99

$

In Stock, Qty 6

0

7

MTD 717-04667

Gear-14T Helical
(Superseded to 717-04667B)

$10.99

$

In Stock, Qty 9

0

7

MTD 717-04672

Gear-Worm
(Superseded to 717-04672A)

$9.49

$

In Stock, Qty 5

0

7

MTD 731-06906

Cover-Chute Grbx

$19.99

$

Usually ships in 3-6 days

0

7

MTD 732-04638C

Spring-Torsion
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

7

MTD 736-0290

Washer-Fl

$6.99

$

In Stock, Qty 20+

0

7

MTD 738-04391

Bolt-Shoulder

$5.99

$

In Stock, only 3 left!

0

7

MTD 941-0225

Flange Bearing

$7.49

$

In Stock, Qty 20+

0

7

MTD 946-04619B

Cable-Chute Lock

$34.99

$

In Stock, only 1 left!

0

7

MTD 790-00342B-0637

Bracket-Rotate Grb
(Superseded to 790-00342C-0637)

$28.99

$

Usually ships in 3-6 days

0

7

MTD 731-06943A

Pawl-Chute Lock

$4.99

$

In Stock, Qty 9

0

7

MTD 741-04388A

Brg-Hex Flange

$7.49

$

In Stock, only 1 left!

0

8

MTD 736-04446

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, Qty 6

0

9

MTD 920-0284

Wing Knob
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

10

MTD 936-0159

Flat Washer, .349 x .879 x .063
(Superseded to 736-0159)

$

$

Not available

11

MTD 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

12

MTD 914-0101

Cotter Pin
(Superseded to 714-0101)

$

$

Not available

13

MTD 711-04469A

Clevis Pin

$5.99

$

In Stock, Qty 8

0

14

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

16

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

17

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

MTD 784-5594-0637

Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

20

MTD 731-06451

Chute Tilt Cable Guide

$4.99

$

Usually ships in 3-6 days

0

21

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 13

0

22

MTD 710-0895

Hi-Lo Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 20+

0

23

MTD 710-04071

Carriage Bolt, 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

24

MTD 731-06440A

Lower Chute

$51.99

$

In Stock, Qty 20+

0

25

MTD 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

26

MTD 946-04528A

4-Way Cable
(Superseded to 946-04528B)

$41.99

$

In Stock, only 1 left!

0

26

MTD 946-04477

4-Way Cable w/Clip (Not Shown)

$44.99

$

In Stock, only 2 left!

0

27

MTD 753-06151

Handle Assembly

$28.99

$

In Stock, only 2 left!

0

28

MTD 731-04893A

Handle Plunger

$6.49

$

In Stock, only 1 left!

0

29

MTD 710-04879

Screw, Mach., #8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

30

MTD 710-04353

Screw, #8 x 1.00

$6.99

$

Usually ships in 3-6 days

0

31

MTD 731-07031

Handle Lever

$7.49

$

In Stock, only 1 left!

0

32

MTD 984-04324A

Shift Assembly

$108.99

$

Usually ships in 3-6 days

0

33

MTD 753-06152

Gear Set Assembly

$25.99

$

In Stock, only 3 left!

0

34

MTD 753-06153

Handle Housing Assembly

$85.99

$

In Stock, only 1 left!

0

35

MTD 710-1256

Screw, #8-18 x 1.250

$5.99

$

In Stock, Qty 5

0

36

MTD 684-04350

Joint Block Assembly

$29.99

$

In Stock, only 4 left!

0

37

MTD 715-04095

Pin

$5.49

$

In Stock, only 2 left!

0

38

MTD 710-0599

Screw (For ground wire)

$4.49

$

In Stock, Qty 20+

0
