24764A - Murray Accessory Kit (1998) Grass Bagger Parts Diagram

Accessory Kit

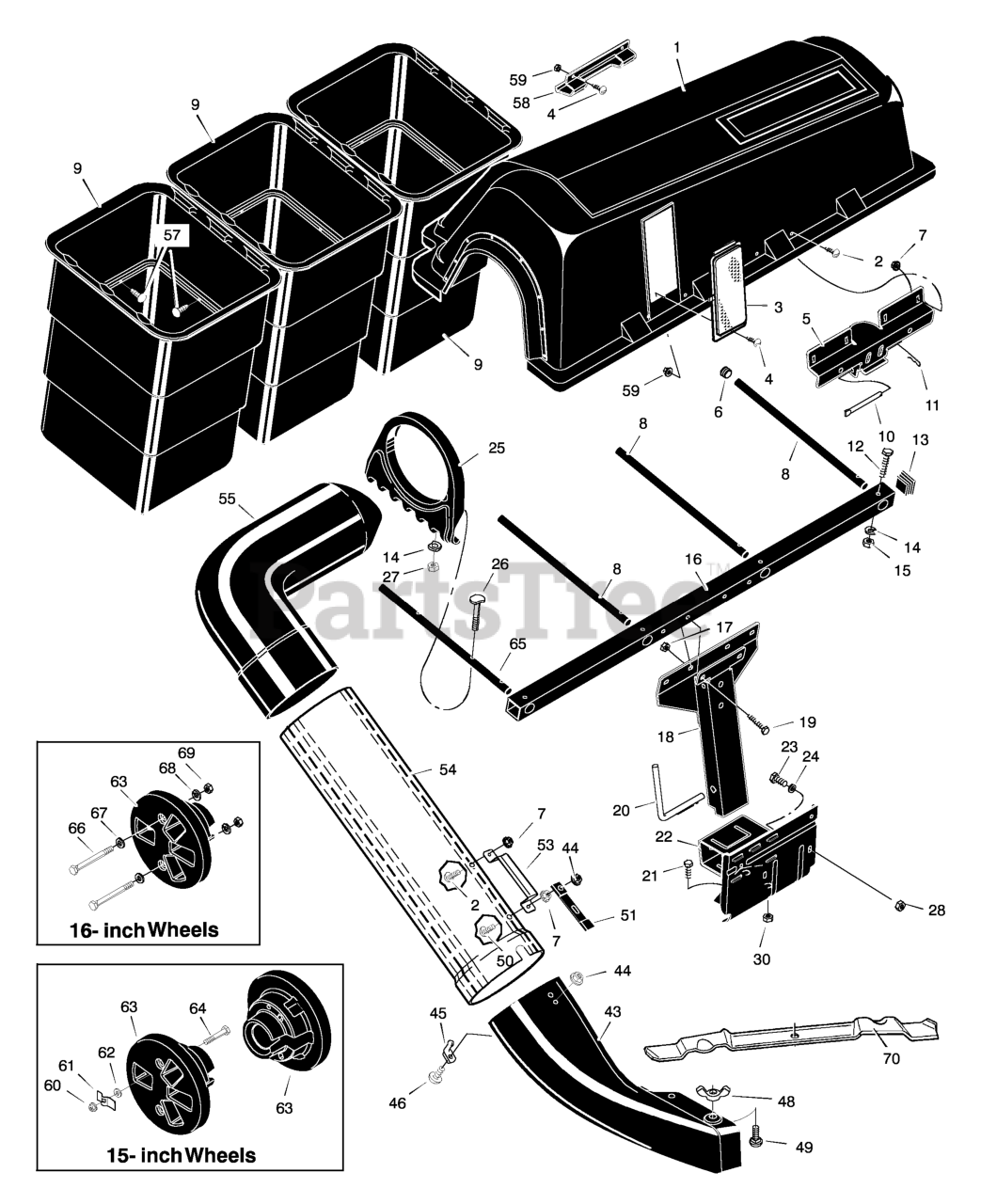

Grass Bagger Parts Diagram

  • Title

1

Murray 094374

Cover, Bagger

$

$

Not available

2

Murray 004X24MA

Screw

$4.49

$

Usually ships in 2-12 days

0

3

Murray 054575MA

Window

$11.99

$

Usually ships in 2-12 days

0

4

Murray 004X21MA

Screw

$3.99

$

Usually ships in 2-12 days

0

5

Murray 054754E701

Hinge, Bracket

$33.99

$

Usually ships in 2-12 days

0

6

Murray 054776MA

Plug

$3.99

$

Usually ships in 2-12 days

0

7

Murray 015X66MA

Nut, Hex
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

8

Murray 054753

Tube, Container

$

$

Not available

9

Murray 054752

Container

$444.99

$

Usually ships in 2-12 days

0

10

Murray 054407ZMA

Pin, Cover Hinge

$14.99

$

In Stock, only 1 left!

0

11

Murray 0031X6MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

12

Murray 001X98MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

13

Murray 054777

Plug
(Superseded to 054777MA)

$4.49

$

Usually ships in 2-12 days

0

14

Murray 018X15MA

Lockwasher

$3.99

$

In Stock, only 1 left!

0

15

Murray 0015X2MA

Nut

$3.99

$

In Stock, only 1 left!

0

16

Murray 054761E701MA

Tube, Support

$25.99

$

Usually ships in 2-12 days

0

17

Murray 15X118MA

Nut

$4.49

$

Usually ships in 2-12 days

0

18

Murray 054757E701

Assembly, Channel

$148.99

$

Usually ships in 2-12 days

0

19

Murray 01X138MA

Bolt

$9.99

$

In Stock, only 1 left!

0

20

Murray 054408 Z

Pin, Channel Mount

$

$

Currently unavailable

21

Murray 01X125MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

22

Murray 094690E701MA

Assembly, Bagger Mount
(Superseded to 7400298BMYP)

$216.99

$

Usually ships in 2-12 days

0

23

Murray 01X141MA

Bolt, Hex

$3.49

$

Usually ships in 2-12 days

0

24

Murray 010851 Z

Washer

$

$

Currently unavailable

25

Murray 054362E701

Holder, Elbow

$

$

Currently unavailable

26

Murray 006X93MA

Screw

$4.49

$

In Stock, Qty 5

0

27

Murray 018X15MA

Washer

$3.99

$

In Stock, only 1 left!

0

28

Murray 15X108MA

Nut, Super Flange

$3.99

$

Usually ships in 2-12 days

0

30

Murray 015X41MA

Nut, Hex

$5.49

$

Usually ships in 2-12 days

0

43

Murray 094325

Tube, Extension

$

$

Currently unavailable

44

Murray 015X89MA

Locknut, Flange

$4.49

$

Usually ships in 2-12 days

0

45

Murray 054563MA

Pin, Latch

$23.99

$

In Stock, only 2 left!

0

46

Murray 002X39MA

Bolt, Carriage

$3.49

$

In Stock, only 1 left!

0

48

Murray 014X86MA

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, Qty 12

0

49

Murray 002X64MA

Bolt, Carriage

$4.49

$

In Stock, only 3 left!

0

50

Murray 004X71MA

Screw

$4.99

$

In Stock, only 4 left!

0

51

Murray 054695MA

Latch, Rubber

$10.99

$

Usually ships in 2-12 days

0

53

Murray 054416ZMA

HANDLE, Connect Tube

$20.99

$

In Stock, only 4 left!

0

54

Murray 094329

Tube, Connecting

$

$

Not available

55

Murray 094332

Elbow

$

$

Currently unavailable

57

Murray 0193X1MA

Fastener, Panel

$3.99

$

In Stock, only 1 left!

0

58

Murray 054537MA

Handle, Plastic

$18.99

$

Usually ships in 2-12 days

0

59

Murray 015X81MA

Nut, Hex

$4.99

$

Usually ships in 2-12 days

0

60

Murray 015X88MA

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

61

Murray 094784MA

Clip, Wheel

$3.99

$

Usually ships in 2-12 days

0

62

Murray 028X64MA

Retainer
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

63

Murray 094783

Weight, Wheel

$

$

Currently unavailable

64

Murray 01X141MA

Bolt

$3.49

$

Usually ships in 2-12 days

0

65

Murray 095384

Tube, Right Container

$

$

Currently unavailable

66

Murray 01X116

Bolt

$

$

Currently unavailable

67

Murray 017X44MA

Washer

$3.49

$

Usually ships in 2-12 days

0

68

Murray 018X15MA

Washer

$3.99

$

In Stock, only 1 left!

0

69

Murray 0015X2MA

Nut

$3.99

$

In Stock, only 1 left!

0

70

Murray 094119E701MA

Blade, High Lift

$

$

Not available

--

Murray F-98944

Book, Instruction

$

$

Currently unavailable
