25430 W (RT 600) - Toro Trencher (SN: 315000501 - 315999999) (2015) BULKHEAD AND HOSE MOUNTING ASSEMBLY Parts Diagram

Trencher

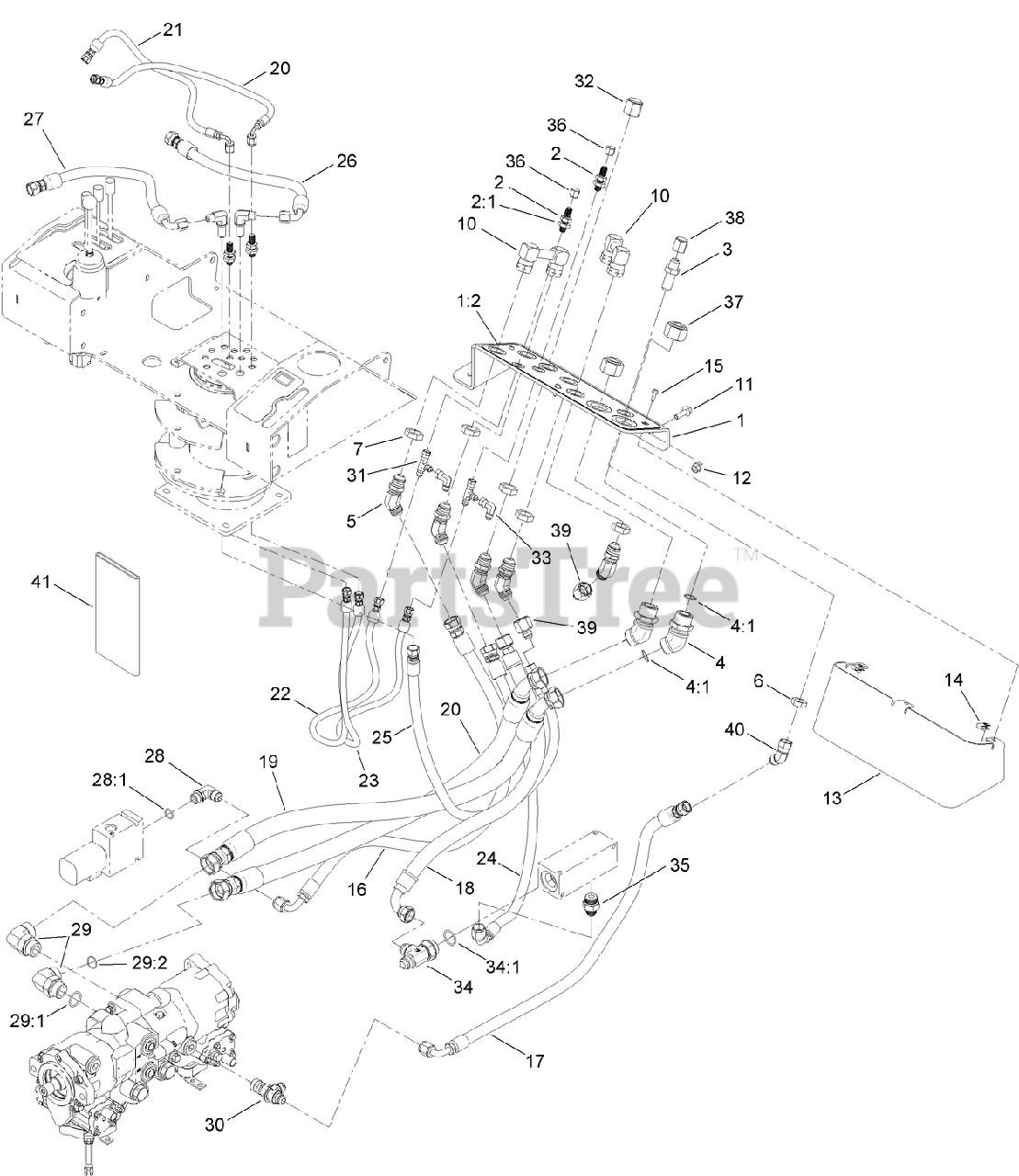

BULKHEAD AND HOSE MOUNTING ASSEMBLY Parts Diagram

  • Title
1

Toro 127-1241

BULKHEAD MOUNT PLATE ASM

$

$

Currently unavailable

1:2

Toro 130-8815

DECAL-REAR HYDRAULIC PORTS

$

$

Currently unavailable

2

Toro AU218-673

UNION-BULKHEAD

$6.99

$

Usually ships in 3-6 days

0

2:1

Toro AU218-1254

NUT-LOCK, BULKHEAD

$3.99

$

Usually ships in 3-6 days

0

3

Toro AU218-675

UNION-BULKHEAD

$20.99

$

Usually ships in 3-6 days

0

4

Toro AU201-366

ELBOW-BULKHEAD, 45

$96.99

$

Usually ships in 3-6 days

0

4:1

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 6

0

5

Toro AU218-717

ELBOW-BULKHEAD, 45

$35.99

$

Usually ships in 3-6 days

0

6

Toro AU218-1251

NUT-LOCK, BULKHEAD

$3.49

$

Usually ships in 3-6 days

0

7

Toro AU218-1256

NUT-LOCK, BULKHEAD

$3.99

$

Usually ships in 3-6 days

0

10

Toro AUH673212

FITTING-SPECIAL

$119.99

$

Usually ships in 3-6 days

0

11

Toro AU100877

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

12

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

13

Toro AU126562-03

PLATE-COVER

$

$

Currently unavailable

14

$5.99

$

Usually ships in 3-6 days

0

15

Toro AU100869

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

16

Toro 125-6717

HOSE ASM

$

$

Currently unavailable

17

Toro 125-6768

HOSE ASM

$

$

Currently unavailable

18

Toro 125-6720

HOSE ASM

$

$

Currently unavailable

19

Toro 125-6721

HOSE ASM

$

$

Currently unavailable

20

Toro 125-6771

HOSE ASM

$

$

Currently unavailable

21

Toro 125-6774

HOSE ASM

$

$

Currently unavailable

22

Toro 125-6783

HOSE ASM

$

$

Currently unavailable

23

Toro 125-6784

HOSE ASM

$

$

Currently unavailable

24

Toro 125-6722

HOSE ASM

$

$

Currently unavailable

25

Toro 125-6728

HOSE ASM

$

$

Currently unavailable

26

Toro 125-6769

HOSE ASM

$

$

Currently unavailable

27

Toro 125-6775

HOSE ASM

$

$

Currently unavailable

28

Toro 353-370

FITTING-ELBOW, 90 DEG

$75.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-80

O-RING

$6.49

$

In Stock, Qty 9

0

29

Toro 340-129

FITTING-ELBOW, 90 DEG

$138.99

$

Usually ships in 3-6 days

0

29:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

29:2

Toro 340-65

O-RING

$4.99

$

In Stock, Qty 6

0

30

Toro AU218-5294

FITTING-TEE

$173.99

$

Usually ships in 3-6 days

0

31

Toro 353-877

FITTING-HYD, TEE

$23.99

$

Usually ships in 3-6 days

0

$7.49

$

Usually ships in 3-6 days

0

33

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

34

Toro AU218-5585

FITTING-TEE

$126.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

35

Toro AU218-5063

FITTING-STRAIGHT

$14.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

37

Toro AU201-901

FITTING-CAP

$

$

Currently unavailable

38

Toro AU218-756

FITTING-CAP

$6.49

$

Usually ships in 3-6 days

0

39

Toro AU218-767

FITTING-STRAIGHT

$16.99

$

Usually ships in 3-6 days

0

40

Toro 127-0519

FITTING-ELBOW, 45 DEG

$

$

Currently unavailable

41

Toro 127-1063

SLEEVE-PROTECTIVE

$

$

Currently unavailable
