261 - Husqvarna Chainsaw (SN: 19981000001 - 19992399999) CRANKCASE Parts Diagram

Chainsaw

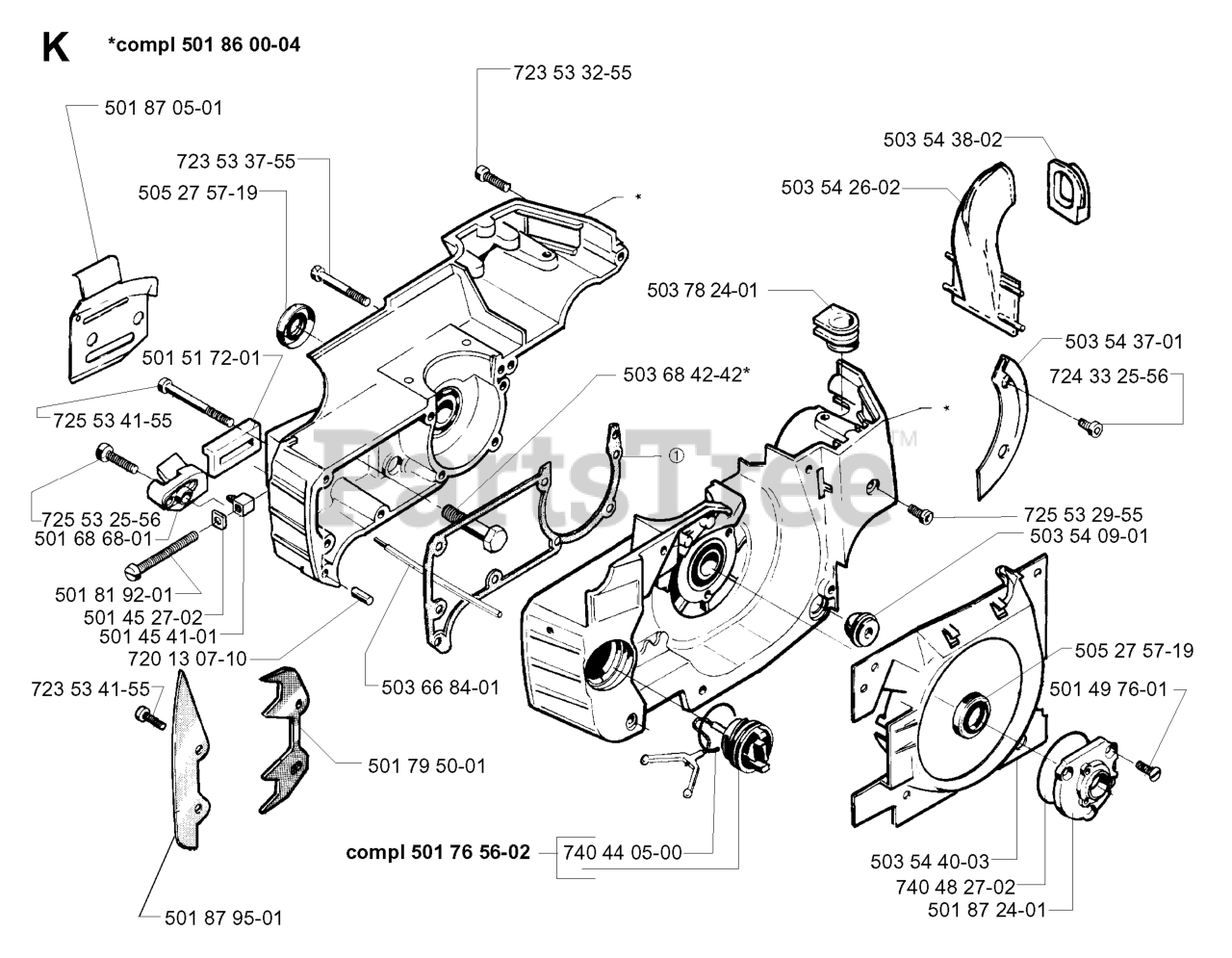

CRANKCASE Parts Diagram

  • Title

501 45 41-01

Husqvarna 501454101

PAWL

$6.49

$

In Stock, Qty 20+

0

503 54 37-01

Husqvarna 503543701

PLATE

$

$

Not available

503 54 09-01

Husqvarna 503540901

BUFFER

$8.99

$

Usually ships in 3-10 days

0

740 44 05-00

Husqvarna 740440500

O-RING

$7.49

$

In Stock, Qty 8

0

723 53 32-55

Husqvarna 723533255

$

$

Currently unavailable

723 53 41-55

Husqvarna 723534155

$

$

Currently unavailable

501 81 92-01

Husqvarna 501819201

SCREW

$6.49

$

In Stock, Qty 13

0

503 54 38-02

Husqvarna 503543802

GROMMET

$

$

Not available

501 87 05-01

Husqvarna 501870501

CHAIN GUIDE PLATE

$10.99

$

In Stock, only 1 left!

0

501 86 00-04

Husqvarna 501860004

CRANKCASE

$

$

Not available

501 87 95-01

Husqvarna 501879501

Felling Dog

$

$

Not available

501 76 56-02

Husqvarna 501765602

OIL CAP

$10.99

$

In Stock, Qty 17

0

723 53 37-55

Husqvarna 723533755

$

$

Currently unavailable

501 51 72-01

Husqvarna 501517201

CHAIN GUIDE

$8.99

$

In Stock, Qty 9

0

505 27 57-19

Husqvarna 505275719

SEAL RING

$17.99

$

In Stock, Qty 20+

0

501 68 68-01

Husqvarna 501686801

CHAIN CATCHER

$8.99

$

In Stock, Qty 6

0

501 45 27-02

Husqvarna 501452702

NUT

$4.99

$

In Stock, Qty 20+

0

720 13 07-10

Husqvarna 720130710

PIN 5X14

$4.99

$

Usually ships in 3-10 days

0

501 87 24-01

Husqvarna 501872401

BEARING COVER

$

$

Not available

503 54 40-03

Husqvarna 503544003

AIR CONDUCTOR

$31.99

$

In Stock, only 2 left!

0

503 68 42-42

Husqvarna 503684242

BAR BOLT

$9.99

$

In Stock, only 2 left!

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$6.49

$

In Stock, Qty 20+

0

501 79 50-01

Husqvarna 501795001

FELLING DOG

$

$

Not available

740 48 27-02

Husqvarna 740482702

O-RING

$

$

Not available

503 78 24-01

Husqvarna 503782401

BELLOWS

$

$

Not available

503 54 26-02

Husqvarna 503542602

AIR JET

$

$

Not available

725 53 41-55

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 10

0

724 33 25-56

Husqvarna 724332556

SCREW ***

$

$

Not available

725 53 25-56

Husqvarna 725532556

RP SCREW MC6S 5X10
(Superseded to 725532555)

$7.99

$

In Stock, Qty 9

0

501 49 76-01

Husqvarna 501497601

SCREW

$

$

Not available

503 66 84-01

Husqvarna 503668401

OIL TANK VENT

$

$

Not available
