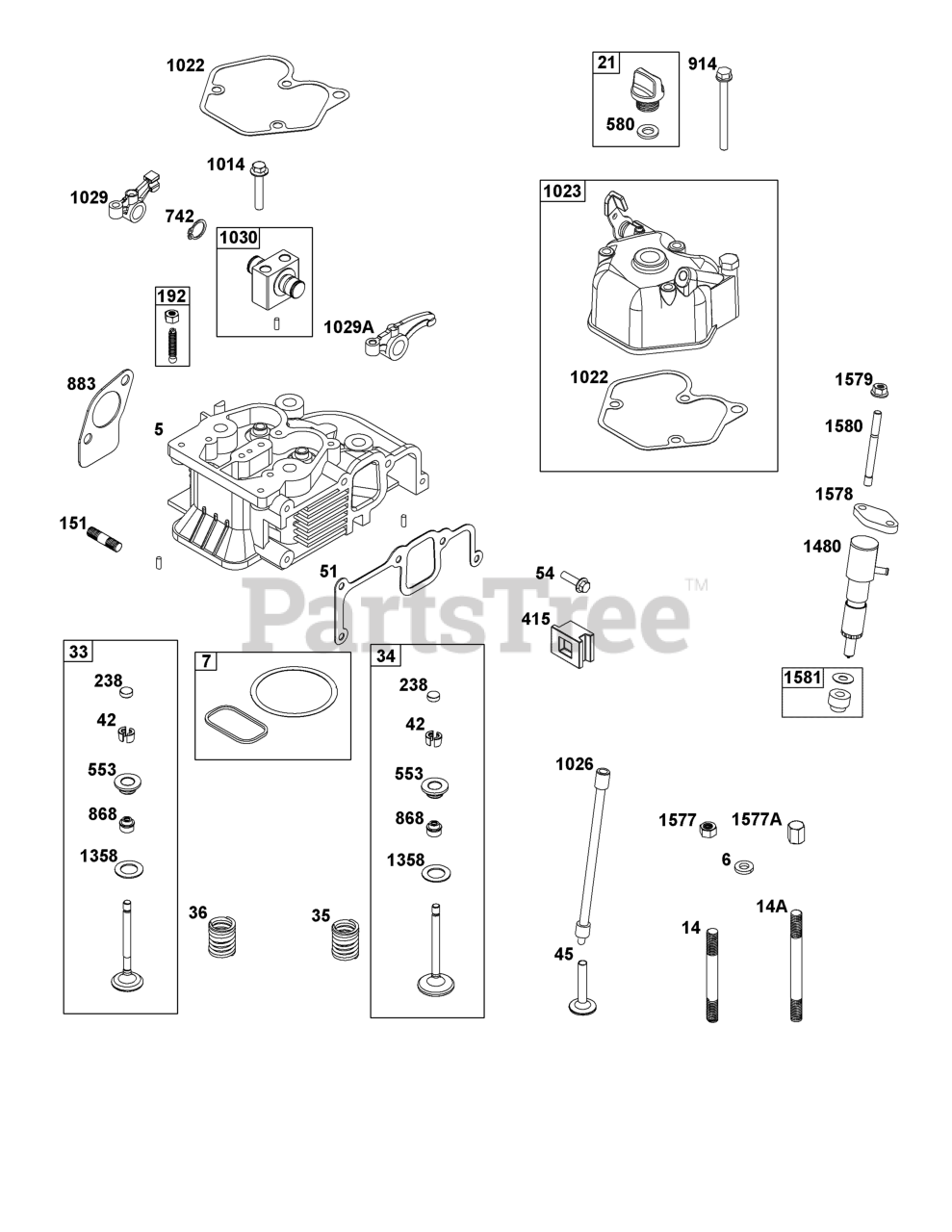

261D05-0001-01 - Briggs & Stratton Horizontal Engine Cylinder Head Group Parts Diagram

Horizontal Engine

Cylinder Head Group Parts Diagram

  • Title

5

Briggs & Stratton 84005631

HEAD, Cylinder

$167.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 84005638

WASHER

Note: (Cylinder Head)

$2.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84005637

GASKET, Cylinder Head

$16.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84005635

STUD

Note: (Cylinder Head)

$3.99

$

Usually ships in 2-12 days

0

14A

Briggs & Stratton 84005636

STUD

Note: (Cylinder Head)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84005527

CAP, Oil Fill

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 84005609

VALVE, Exhaust

$12.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 84005611

VALVE, Intake

$12.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84005617

SPRING, Valve

Note: (Intake)

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84005617

SPRING, Valve

Note: (Exhaust)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 84005619

KEEPER, Valve

$3.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 84005621

TAPPET, Valve

$4.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 84005629

GASKET, Intake

$12.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 84005283

SCREW

Note: (Intake Manifold)

$3.49

$

Usually ships in 2-12 days

0

151

Briggs & Stratton JUMPTO151

STUD

Note: (Part information located in Exhaust Group.)

$

$

Currently unavailable

192

Briggs & Stratton 84005610

ADJUSTER, Rocker Arm

$3.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 84005620

CAP, Valve

$3.49

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 84005628

PLUG

$3.49

$

Usually ships in 2-12 days

0

553

Briggs & Stratton 84005618

RETAINER, Valve Spring

$3.99

$

Usually ships in 2-12 days

0

580

Briggs & Stratton 84005529

SEAL, O-Ring

Note: (Oil Fill Cap)

$2.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 84005615

RETAINER, E Ring

$2.49

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 84005608

SEAL, Valve

$4.49

$

Usually ships in 2-12 days

0

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

914

Briggs & Stratton 84005537

SCREW

Note: (Rocker Cover)

$2.99

$

Usually ships in 2-12 days

0

1014

Briggs & Stratton 84005624

SCREW

Note: (Rocker Arm Support)

$2.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 84005678

GASKET, Rocker Cover

$10.99

$

Usually ships in 2-12 days

0

1023

Briggs & Stratton 84005677

COVER, Rocker

$29.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 84005622

ROD, Push

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 84005612

ARM, Rocker

$10.99

$

Usually ships in 2-12 days

0

1029A

Briggs & Stratton 84005613

ARM, Rocker

$10.99

$

Usually ships in 2-12 days

0

1030

Briggs & Stratton 84005623

SUPPORT, Rocker Arm

$10.99

$

Usually ships in 2-12 days

0

1358

Briggs & Stratton 84005616

SEAT, Valve Spring

$3.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 84005627

INJECTOR, Fuel

$42.99

$

Usually ships in 2-12 days

0

1577

Briggs & Stratton 84005639

NUT

Note: (Cylinder Head)

$2.99

$

Usually ships in 2-12 days

0

1577A

Briggs & Stratton 84005643

NUT

Note: (Cylinder Head)

$3.99

$

Usually ships in 2-12 days

0

1578

Briggs & Stratton 84005349

PLATE, Clamp

Note: (Fuel Injector)

$4.49

$

Usually ships in 2-12 days

0

1579

Briggs & Stratton 84005350

NUT

Note: (Clamp Plate)

$2.99

$

Usually ships in 2-12 days

0

1580

Briggs & Stratton 84005625

STUD

Note: (Clamp Plate)

$6.99

$

Usually ships in 2-12 days

0

1581

Briggs & Stratton 84005626

ADJUSTER, Height

Note: (Fuel Injector)

$11.99

$

Usually ships in 2-12 days

0
