2622 (2690971-02) - Massey Ferguson 44" Lawn Tractor, 22hp Hood, Grille & Dash Group Parts Diagram

44" Lawn Tractor, 22hp

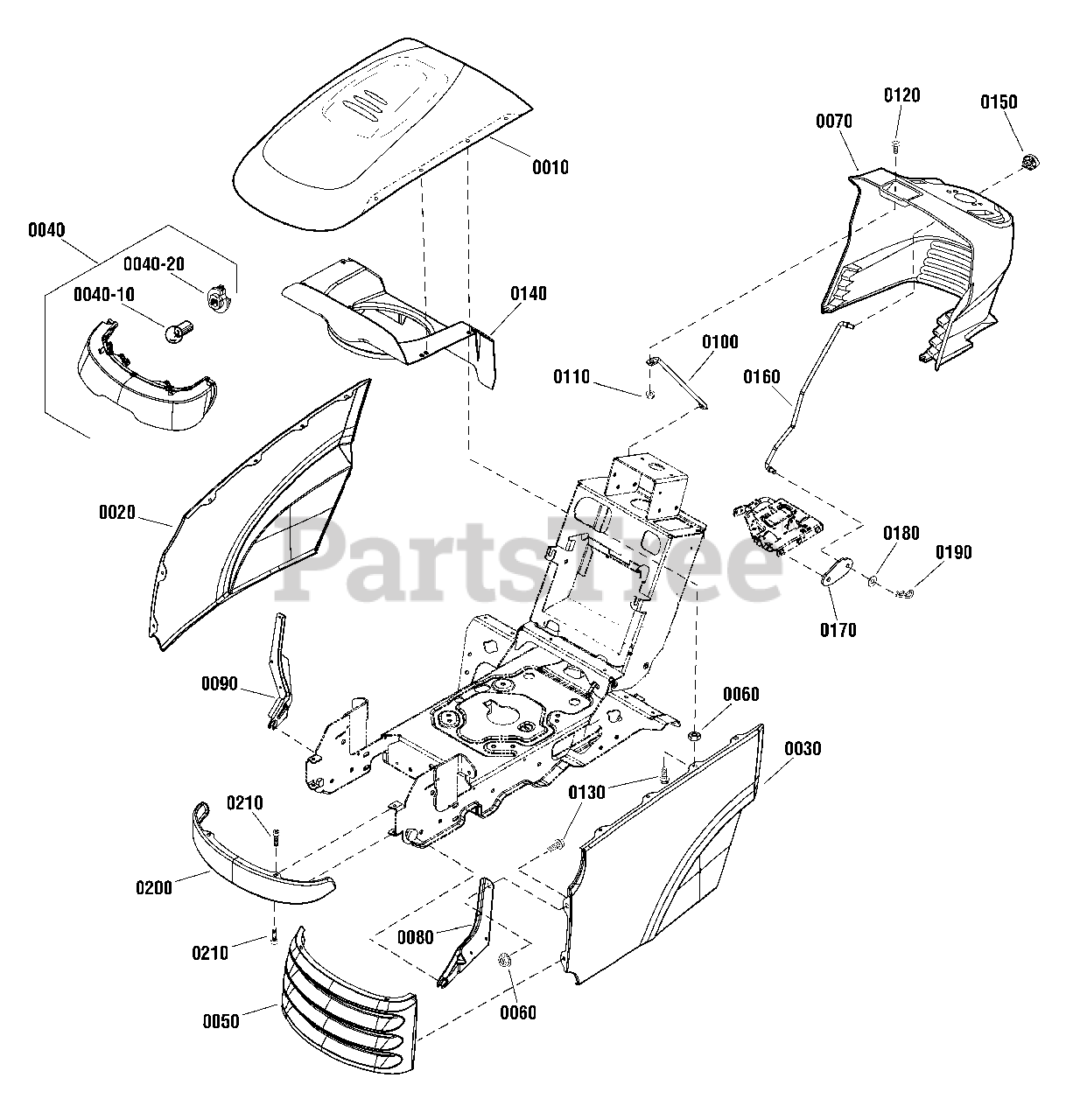

Hood, Grille & Dash Group Parts Diagram

  • Title

0010

Simplicity 1722110DSM

HOOD, 3 Louvers

$304.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1721804DSM

PANEL, Side RH

$170.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1721803DSM

PANEL, Side LH

$170.99

$

Usually ships in 2-12 days

0

0040

Simplicity 1721810SM

HEADLIGHT ASSEMBLY

Note: (Includes items 0140-10 & 0140-20)

$164.99

$

Usually ships in 2-12 days

0

0040-10

Simplicity 1677371SM

BULB, Incandescent

$30.99

$

In Stock, only 1 left!

0

0040-20

Simplicity 1723451SM

SOCKET

$28.99

$

In Stock, only 1 left!

0

0050

Simplicity 1721802DSM

GRILLE

$120.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1930641SM

NUT, Hex Flange, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0070

Simplicity 1726827SM

DASHBOARD

$

$

Not available

0080

Simplicity 5410606AYP

HINGE, LH

$43.99

$

Usually ships in 2-12 days

0

0090

Simplicity 5410607AYP

HINGE, RH

$43.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1723123SM

ROD, Dash

$11.99

$

Usually ships in 2-12 days

0

0110

Simplicity 1933896SM

NUT, Hex, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0120

Simplicity 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0130

Simplicity 1960295SM

SCREW, Hex, 1/4-20 5/8

$4.49

$

In Stock, only 1 left!

0

0140

Simplicity 7102326YP

DUCT, Air

$131.99

$

In Stock, only 1 left!

0

0150

Simplicity 1721891SM

KNOB, Push

$9.99

$

In Stock, only 1 left!

0

0160

Simplicity 1721353SM

KNOB, Brake

$18.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1721354ASM

LATCH, Brake

$6.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1919326SM

WASHER, Flat

$4.49

$

In Stock, Qty 9

0

0190

Simplicity 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0200

Simplicity 1721805ASM

BUMPER

$59.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1960086SM

SCREW, Truss, 5/16-18 x 7/8

$4.99

$

In Stock, only 2 left!

0
