265-SUA - Troy-Bilt Engine 265-SUA Flywheel & Blower Housing Parts Diagram

Engine

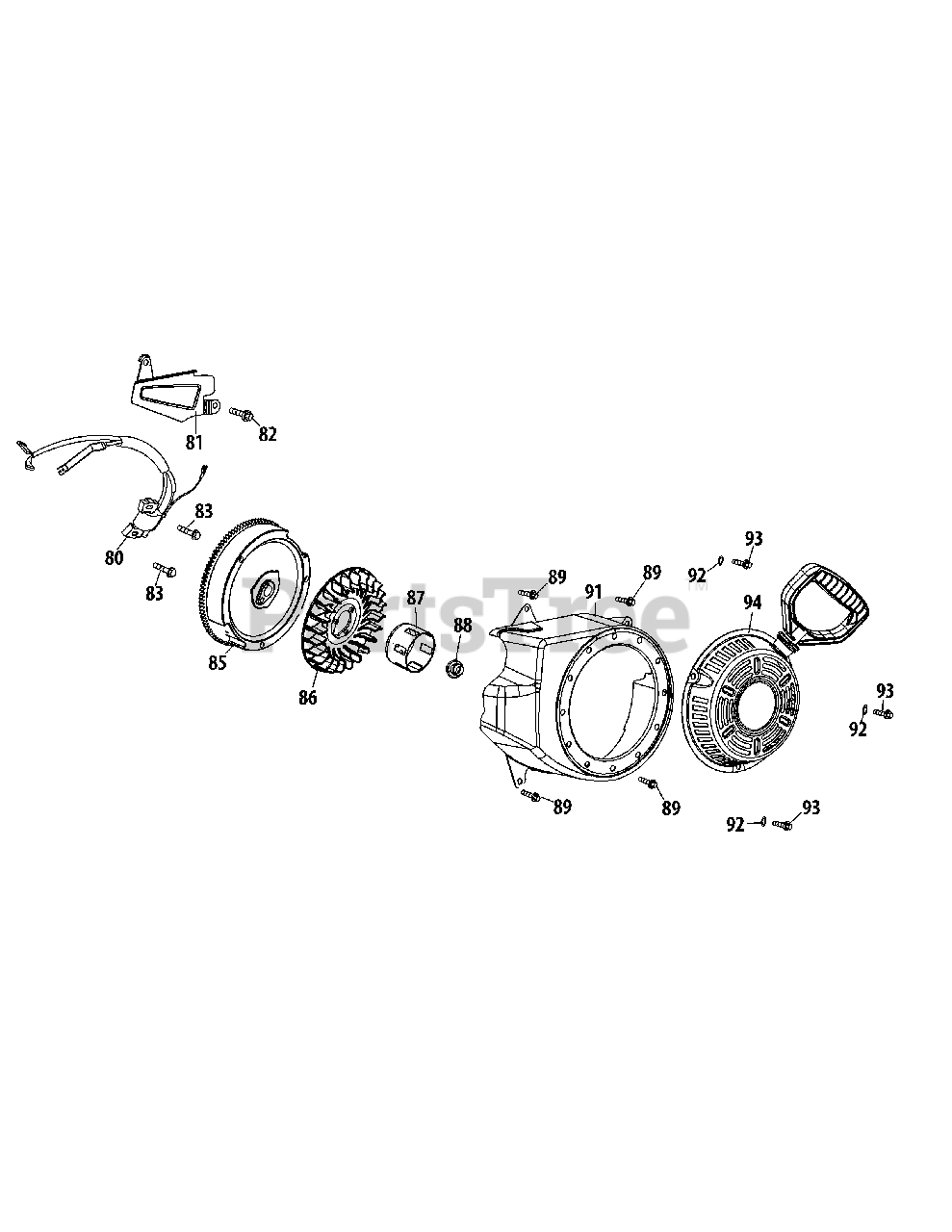

265-SUA Flywheel & Blower Housing Parts Diagram

  • Title
80

Troy-Bilt 951-10646

Ignition Coil Assembly
(Superseded to 951-10646A)

$98.99

$

In Stock, Qty 5

0

81

Troy-Bilt 951-11110

Air Flow Shield

$3.99

$

Usually ships in 3-6 days

0

82

Troy-Bilt 710-04940

Bolt M6×10

$4.99

$

In Stock, only 3 left!

0

83

Troy-Bilt 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

85

Troy-Bilt 951-12416

Flywheel
(Superseded to 751P12416A)

$55.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 951-10934

Cooling Fan
(Superseded to 951-10909A)

$20.99

$

In Stock, only 1 left!

0

87

Troy-Bilt 951-10911

Starter Cup

$16.99

$

Usually ships in 3-6 days

0

88

Troy-Bilt 712-04209

Nut, Special, M14×1.5
(Superseded to 712-04287)

$6.49

$

In Stock, only 1 left!

0

89

Troy-Bilt 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 8

0

91

Troy-Bilt 951-10663A

Blower Housing
(Superseded to 951-12644)

$60.99

$

Usually ships in 3-6 days

0

92

Troy-Bilt 736-04455

Gasket 6
(Superseded to 736-04455B)

$6.49

$

Usually ships in 3-6 days

0

93

Troy-Bilt 710-04974

Bolt M6×10

$6.49

$

In Stock, only 2 left!

0

94

Troy-Bilt 951-14151

Recoil Starter

$79.99

$

In Stock, Qty 20+

0
