2690 (31AM73Q3766) - Troy-Bilt Storm Tracker 26" Track Drive Snow Thrower (2008) Chute 4-Way Extended Parts Diagram

Storm Tracker 26" Track Drive Snow Thrower

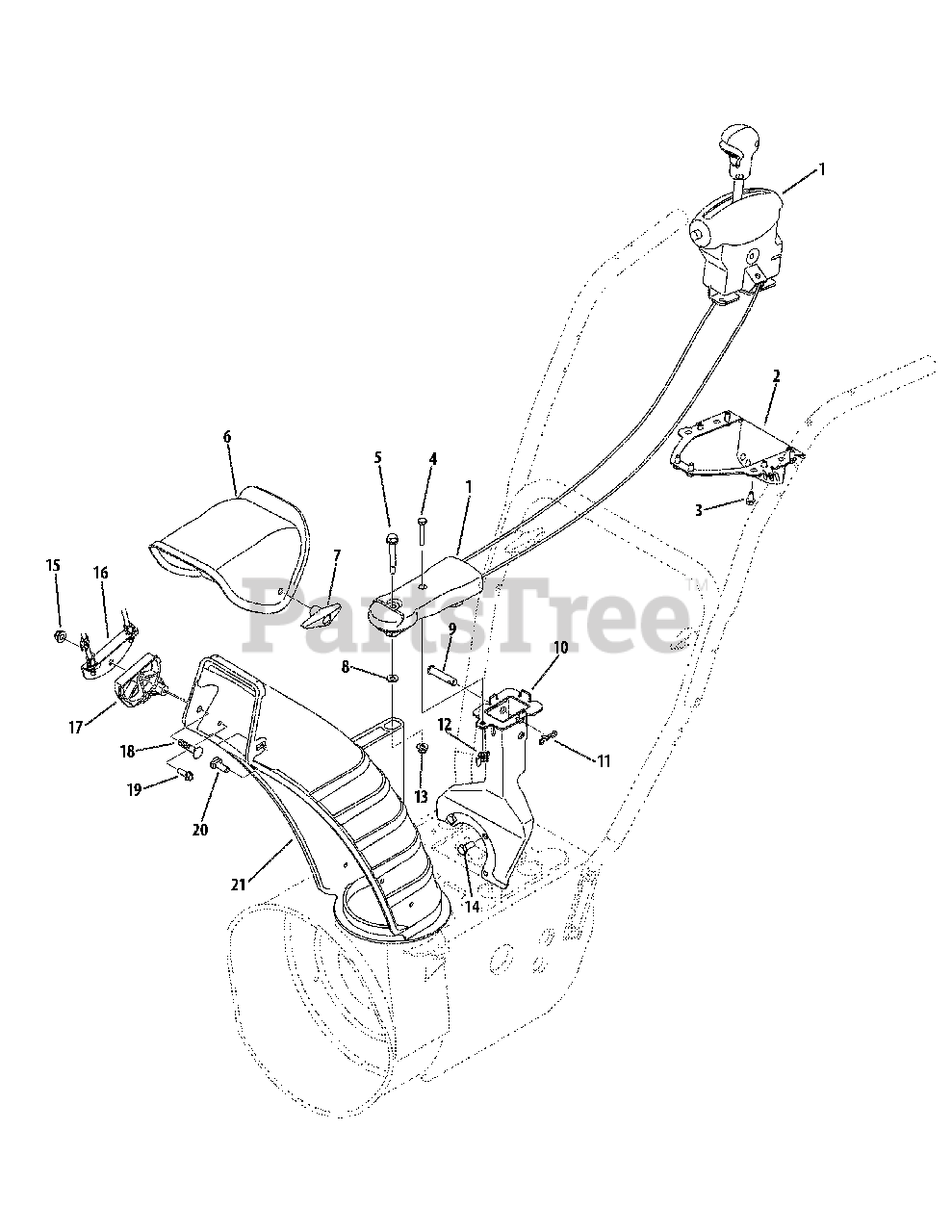

Chute 4-Way Extended Parts Diagram

  • Title

1

Troy-Bilt 684-04331

Chute Control Assembly
(Superseded to 753-08391)

$285.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 946-04551

Cable, Pitch Control with routing clip

Note: (not shown)

$38.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 946-04527

Cable, Pitch Control

Note: (not shown)

$38.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 731-07868

Clip, Routing

Note: (not shown)

$3.49

$

In Stock, only 1 left!

0

2

Troy-Bilt 790-00131

Joystick Bracket
(Superseded to 790-00131A-0637)

Variations

Cub Cadet 790-00131A-0637

BRACKET-LOCK CONTR - POWDER BLACK

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 10

0

4

Troy-Bilt 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 13

0

5

Troy-Bilt 738-04194

Shoulder Screw, .312 x 1.70 x 1/4-20

$6.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 720-0284

Wing Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-0463

Flat Washer, .25 x .630 x .0515

$4.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, Qty 8

0

10

Troy-Bilt 684-04311

Chute Support Bracket
(Superseded to 684-04311A-0637)

Variations

Troy-Bilt 684-04311-0637

Support Bracket Assembly - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0627

Hex Lock Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06451

Chute Tilt Cable Guide

$4.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

19

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 16

0

21

Troy-Bilt 731-06440

Lower Chute, 5.0
(Superseded to 731-06440A)

$51.99

$

In Stock, Qty 20+

0
