2690 (31BM73Q3766) - Troy-Bilt Storm Tracker 26" Track Drive Snow Thrower (2011) Chute Extended 4-Way Parts Diagram

Storm Tracker 26" Track Drive Snow Thrower

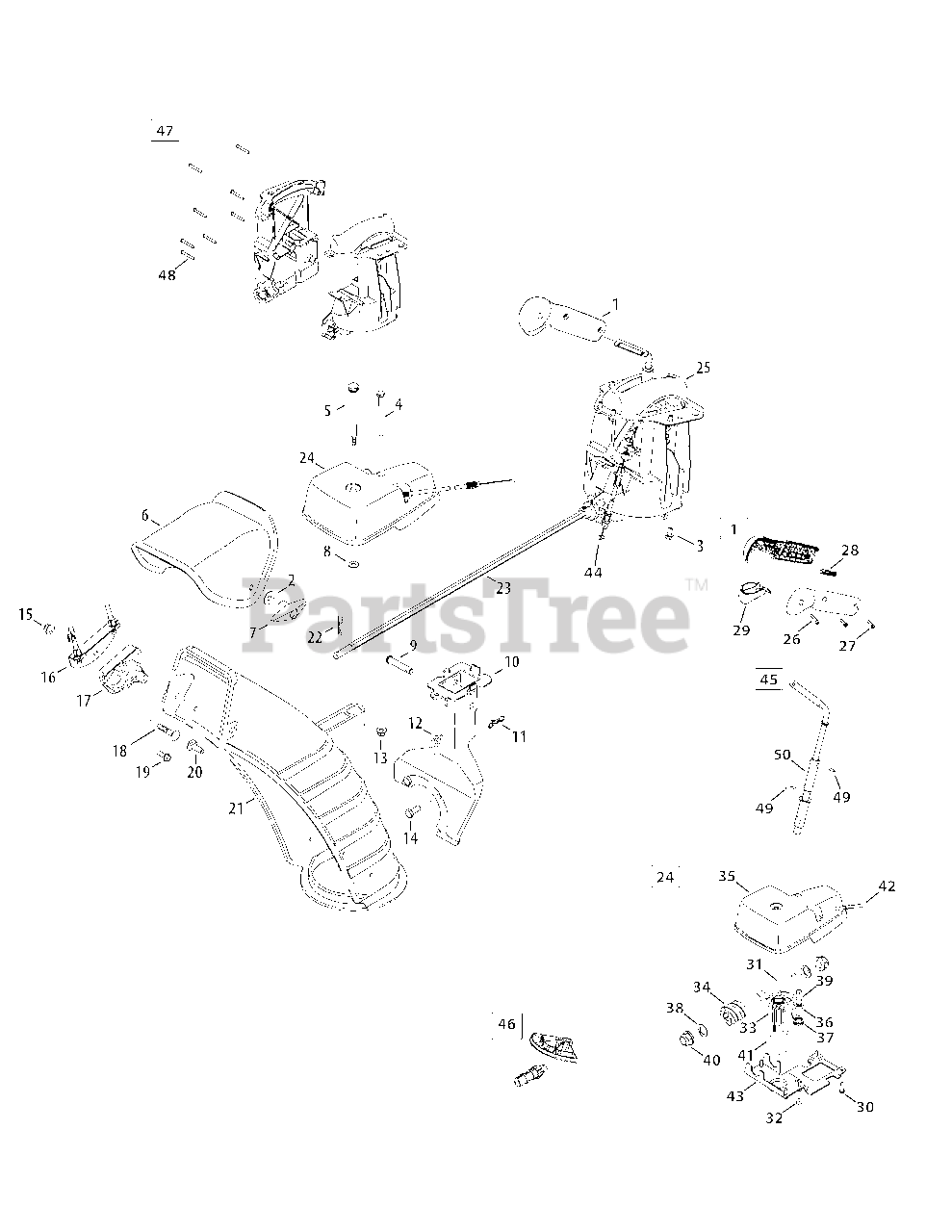

Chute Extended 4-Way Parts Diagram

  • Title

1

Troy-Bilt 753-06151

Trigger Handle Housing Assembly Kit

$26.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

3

Troy-Bilt 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.49

$

In Stock, Qty 10

0

4

Troy-Bilt 710-04370

Hex Head Screw, 1/4-20 x 3.00

$3.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 738-04367

Screw, Shoulder, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

6

Troy-Bilt 731-04427A

Upper Chute
(Superseded to 731-04427B)

$15.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 920-0284

Wing Knob
(Superseded to 720-0284)

$

$

Not available

8

Troy-Bilt 736-04446

Washer, Flat, .25 x .630

$3.99

$

In Stock, Qty 6

0

9

Troy-Bilt 711-04469A

Clevis Pin, 3/8 x 1.87

$5.49

$

In Stock, Qty 8

0

10

Troy-Bilt 684-04311A-0637

Chute Support Bracket

$39.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-0627

Hex Lock Screw, 5/16-24 x .750

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$10.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$10.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 731-06451

Chute Tilt Cable Guide

$4.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

19

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$5.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 16

0

21

Troy-Bilt 731-06440A

Lower Chute, 5.0

$48.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

23

Troy-Bilt 747-05116

Chute Rod, 3/8 Hex

$28.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 918-04801A

Gearbox Assembly, Chute Rotation
(Superseded to 918-04801B)

$119.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 984-04338A

4-Way Chute Control Assembly

$202.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 710-04353

Screw, #8 x 1.00

$6.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 710-04879

Screw, 8-32 x .750

$3.49

$

Usually ships in 3-6 days

0

28

Troy-Bilt 731-04893A

Joystick Plug

$5.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 731-07031

Joystick Trigger

$6.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

31

Troy-Bilt 711-05186

Hex Shaft

$9.99

$

In Stock, only 4 left!

0

32

Troy-Bilt 712-0896

Hexlock Nut, 1/4-28

$4.49

$

In Stock, Qty 6

0

33

Troy-Bilt 717-04667

Gear, 14 T
(Superseded to 717-04667B)

$9.99

$

In Stock, Qty 10

0

34

Troy-Bilt 717-04672

Worm
(Superseded to 717-04672A)

$8.99

$

In Stock, Qty 5

0

35

Troy-Bilt 731-06906

Gear Cover

$17.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 731-06943

Pawl Lock
(Superseded to 731-06943A)

$4.49

$

In Stock, Qty 9

0

37

Troy-Bilt 732-04638C

Torsion Spring, .721 ID x .474
(Superseded to 732-04638D)

$3.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 736-0290

Washer, Flat, .625 x 1.0 x .067

$6.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 738-04391

Screw, Shoulder, .340 x .950 x 1/4-28

$5.49

$

In Stock, only 3 left!

0

40

Troy-Bilt 941-0225

Hex Bearing

$6.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 741-04388

Flange Bearing
(Superseded to 741-04388A)

$6.99

$

Usually ships in 3-6 days

0

42

Troy-Bilt 946-04619B

Cable Lock

$32.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 790-00342B-0637

Gear Bracket
(Superseded to 790-00342C-0637)

$26.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 946-04528A

4-Way Cable
(Superseded to 946-04528B)

$38.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 946-04477

4-Way Cable w/Clip

$41.99

$

In Stock, only 2 left!

0

45

Troy-Bilt 984-04324A

Shift Assembly

$100.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 753-06152

Gear Set Assembly Kit

$23.99

$

In Stock, only 4 left!

0

47

Troy-Bilt 753-06153

Chute Control Housing Kit, 4-Way

$79.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 710-1256

Screw, #8-18 x 1.250

$5.99

$

In Stock, Qty 5

0

49

Troy-Bilt 715-04095

Pin, Roll

$4.99

$

In Stock, only 2 left!

0

50

Troy-Bilt 684-04350

Block, Assembly Joint

$26.99

$

In Stock, only 4 left!

0

Troy-Bilt 725-05213

Chute Ground Cable

Note: (not shown) (if equipped)

$4.99

$

Usually ships in 3-6 days

0

Troy-Bilt 912-0158

Nut, Center Lock, 5/16-18

Note: (not shown) (if equipped)

$3.49

$

In Stock, Qty 20+

0
