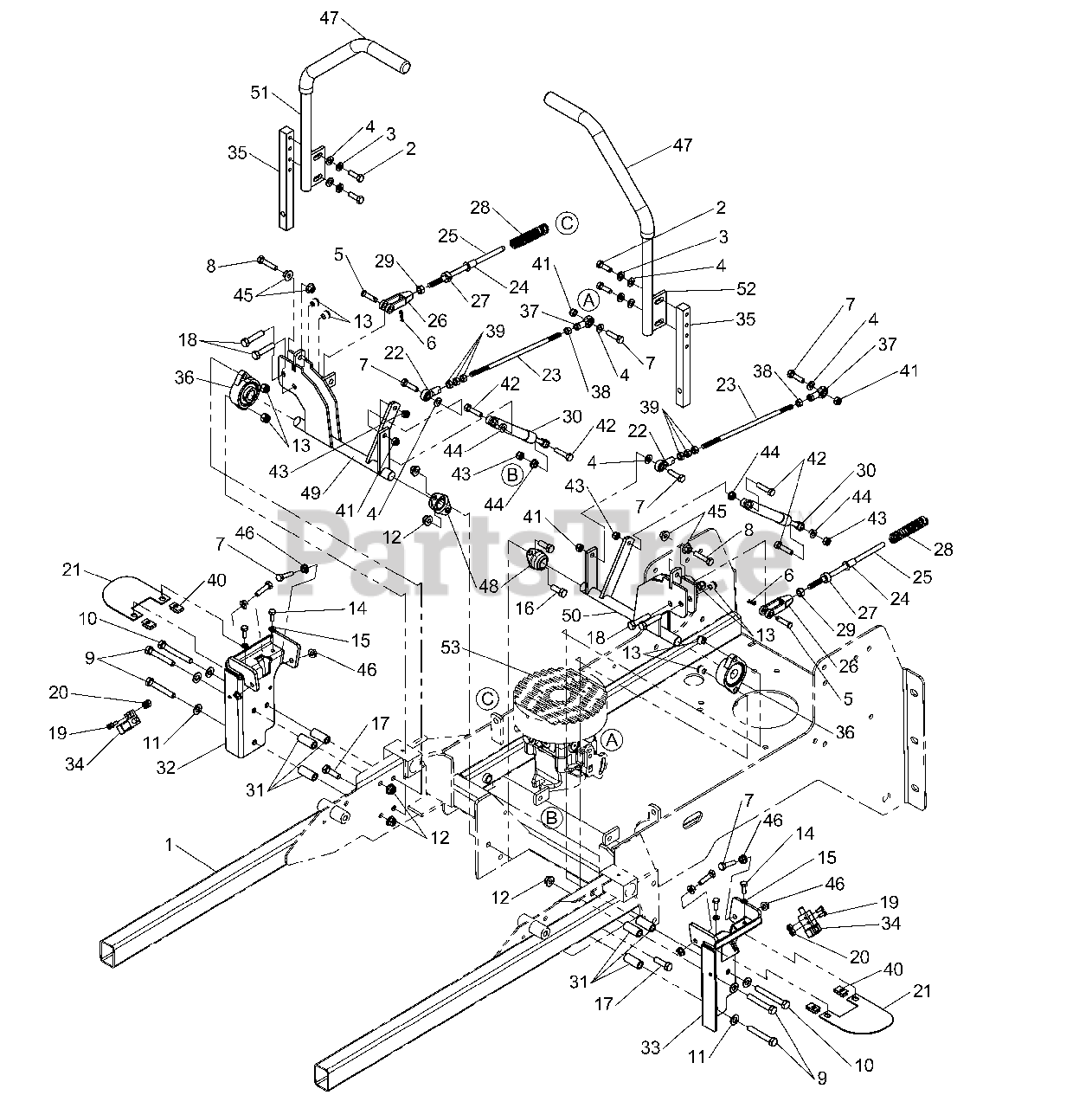

2690369 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Motion Control Group (197MCG0) Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

Motion Control Group (197MCG0) Parts Diagram

  • Title

1

MAIN FRAME (See Main Frame Group)

$

$

Not available

2

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1"
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

3

Simplicity 5025170SM

WASHER, 5/16" Lock

$3.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

5

Simplicity 502523210

CLEVIS PIN, 5/16" X 1-1/4"

$

$

Not available

6

Simplicity 5025211SM

HAIR PIN

$3.99

$

In Stock, only 1 left!

0

7

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4"

$3.99

$

In Stock, only 3 left!

0

8

Simplicity 5025011X12SM

BOLT, 5/16-18 X 1-1/2"
(Superseded to 5025055X12SM)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

10

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3"

$3.99

$

In Stock, Qty 5

0

11

Simplicity 5025156SM

WASHER, 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 5025394SM

NUT, 3/8-16 Hex Nylock Flange

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025096SM

NUT, 3/8-16 Hex Nylon Lock

$3.49

$

In Stock, Qty 7

0

14

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4"

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 17

0

16

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1"

$3.99

$

In Stock, only 4 left!

0

17

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4"

$3.99

$

In Stock, only 2 left!

0

18

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4"

$3.99

$

In Stock, Qty 5

0

19

Simplicity 5025179X4SM

SCREW, #10-24 X 1/2"

$3.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025029SM

NUT, #10-24 Hex

$2.99

$

Usually ships in 2-12 days

0

21

Simplicity 5061838CSM

MOTION CONTROL GUARD

$

$

Not available

22

Simplicity 5104578YP

BALL JOINT 5/16-24 RH FEMALE STAMPED STL

$11.99

$

In Stock, only 2 left!

0

23

Simplicity 5046420SM

HYDRO CONTROL ROD

$11.99

$

Usually ships in 2-12 days

0

24

Simplicity 5023260SM

BUSHING, Flange

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 5049969

NEUTRAL CONTROL ROD
(Superseded to 5049969SM)

$33.99

$

Usually ships in 2-12 days

0

26

Simplicity 5021171SM

CLEVIS, 3/8-24, Plastic

$15.99

$

Usually ships in 2-12 days

0

27

Simplicity 5010546SM

COLLAR, 3/8" Set

$5.99

$

Usually ships in 2-12 days

0

28

Simplicity 5022645SM

SPRING, Compression

$9.49

$

Usually ships in 2-12 days

0

29

Simplicity 5025035SM

NUT, 3/8-24 Hex

$3.49

$

Usually ships in 2-12 days

0

30

Simplicity 5100728SM

DAMPENER
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 5

0

31

Simplicity 5048264SM

SPACER, .63 X .39 X 1.50

$5.99

$

Usually ships in 2-12 days

0

32

Simplicity 5049872CSM

NEUTRAL LOCK PLATE, RH

$

$

Not available

33

Simplicity 5049873CSM

NEUTRAL LOCK PLATE, LH

$

$

Not available

34

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 11

0

35

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

36

Simplicity 5021499SM

BEARING, Flange

$55.99

$

In Stock, only 2 left!

0

37

Simplicity 5104579YP

BALL JOINT 5/16-24 LH FEMALE STAMPED STL

$

$

Not available

38

Simplicity 5023212SM

NUT, 5/16-24 Hex LH

$3.49

$

Usually ships in 2-12 days

0

39

Simplicity 5025033SM

NUT, 5/16-24 Hex
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

40

Simplicity 5022665SM

BODY CLIP, 1/4-20

$3.49

$

Usually ships in 2-12 days

0

41

Simplicity 5025057SM

NUT, 5/16-18 Hex Nylon Lock
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

42

Simplicity 5025335SM

BOLT, M8-1.25 x 35MM

$3.49

$

Usually ships in 2-12 days

0

43

Simplicity 5025354SM

NUT, M8-1.25 Hex Nylon Lock

$3.49

$

Usually ships in 2-12 days

0

44

Simplicity 5025355SM

NUT, M8-1.25 Hex Serrated Flange

$3.49

$

Usually ships in 2-12 days

0

45

Simplicity 5025139SM

NUT, 5/16-18 Hex Large Serrated Flange

$3.49

$

In Stock, only 2 left!

0

46

Simplicity 1931277SM

NUT, 5/16-18 Hex Small Serrated Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

47

Simplicity 5022068SM

GRIP, Foam

$11.99

$

Usually ships in 2-12 days

0

48

Simplicity 5021098SM

BEARING, Flange

$13.99

$

In Stock, Qty 8

0

49

Simplicity 5049843CSM

CONTROL SHAFT, RH

$

$

Not available

50

Simplicity 5049842CSM

WCONTROL SHAFT, LH

$87.99

$

Usually ships in 2-12 days

0

51

Simplicity 5047056A

WELD, HANDLE MOTION CONTROL, RH - BLK
(Superseded to 5047056AYP)

$61.99

$

Usually ships in 2-12 days

0

52

Simplicity 5047055A

WELD, HANDLE MOTION CONTROL, LH - BLK
(Superseded to 5047055AYP)

$61.99

$

In Stock, only 1 left!

0

53

HYDRAULIC PUMP (See Hydraulic Group)

$

$

Not available
