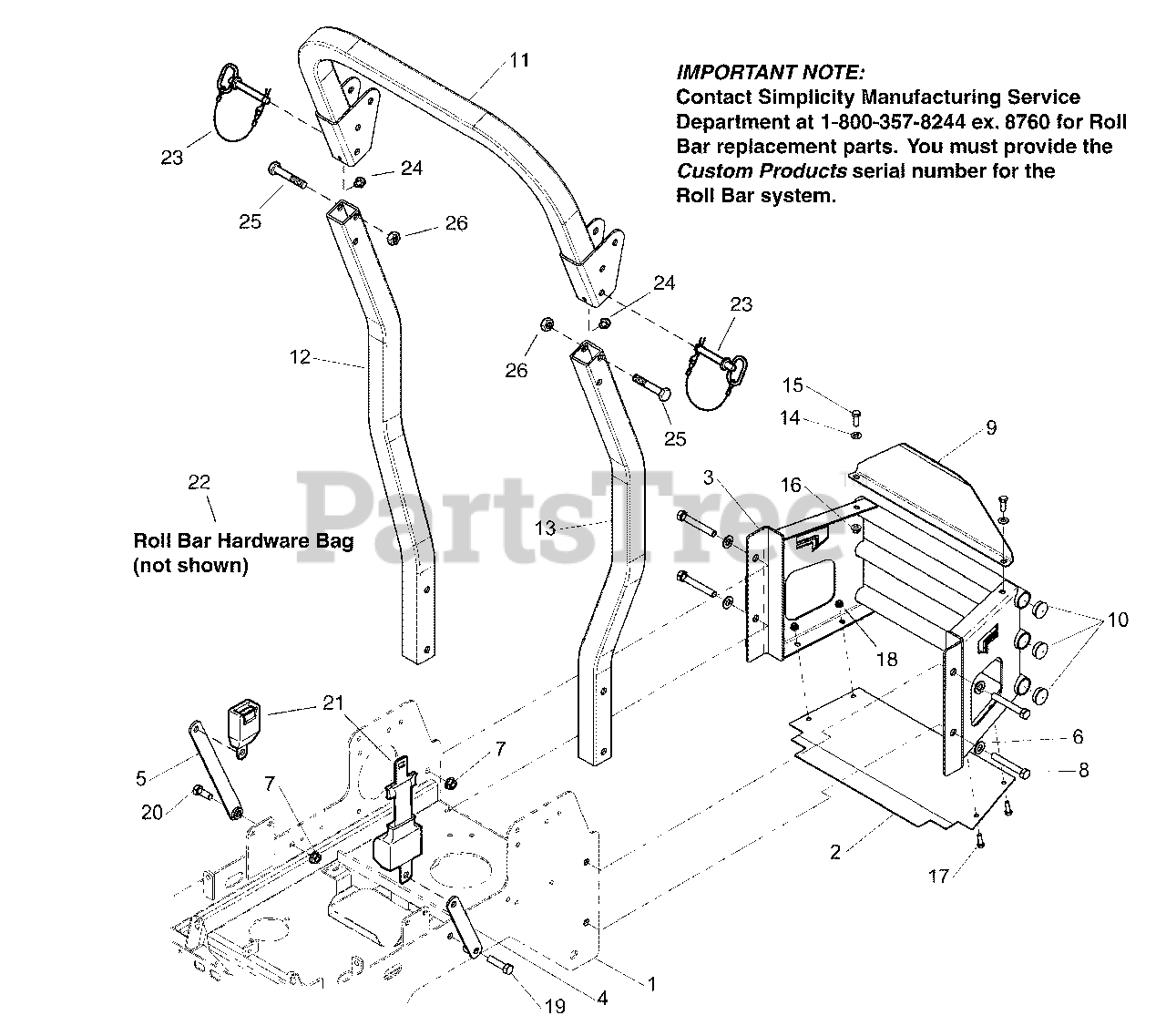

2690369 - Simplicity Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton Rear Bumper, Roll Bar & Seat Belt Group - Later Models (197BMP1) Parts Diagram

Citation 48" Zero-Turn Mower, 21hp Briggs & Stratton

Rear Bumper, Roll Bar & Seat Belt Group - Later Models (197BMP1) Parts Diagram

  • Title

1

MAIN FRAME

Note: (See Main Frame & Front Caster Group)

$

$

Not available

2

Simplicity 5401174CSM

PLATE, HEAT SHIELD

$44.99

$

Usually ships in 2-12 days

0

3

Simplicity 5400887C

WELD, SEAT BELT ANCHOR - LH

$

$

Not available

4

Simplicity 5400847AYP

MOUNT, SEAT BELT - RH - BLK

$26.99

$

Usually ships in 2-12 days

0

5

Simplicity 5400314C

WELD, BUMPER - CITATION

$

$

Not available

6

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 6

0

7

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

8

Simplicity 5025017X28SM

BOLT, 1/2-13 X 3-1/2" GD5

$5.99

$

In Stock, only 2 left!

0

9

Simplicity 5023484SM

PLUG, PANEL, 1.25 BLACK

$3.99

$

In Stock, only 1 left!

0

10

ROLL BAR TOP LOOP

Note: (Not Serviced. See drawing note)

$

$

Not available

11

ROLL BAR POST, RH

Note: (Not Serviced. See drawing note)

$

$

Not available

12

ROLL BAR POST, LH

Note: (Not Serviced. See drawing note)

$

$

Not available

13

Simplicity 25011-8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8)

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 25392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392)

$3.49

$

Usually ships in 2-12 days

0

15

Simplicity 25017-16

BOLT, 1/2-13 X 1-3/4" GD5

$

$

Not available

16

Simplicity 25017-10

BOLT, 1/2-13 X 2-1/4" GD5
(Superseded to 5025017X10)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 5100139SM

SEAT BELT ASSEMBLY, Standard

Note: (Includes mounting hardware)

$103.99

$

Usually ships in 2-12 days

0

17

Simplicity 5100397SM

SEAT BELT ASSEMBLY, Extra Long

Note: (Includes mounting hardware)

$122.99

$

Usually ships in 2-12 days

0

18

Simplicity 5100377

ROLL BAR HARDWARE BAG
(Superseded to 5100377SM)

Note: (Includes hitch pins)

$83.99

$

Usually ships in 2-12 days

0

19

Simplicity 5100013SM

PIN, Hitch, .50 x 3.25 W/ Lanyard

$35.99

$

Usually ships in 2-12 days

0

20

Simplicity 5100383SM

RUBBER BUMPER

$3.99

$

In Stock, only 2 left!

0

21

* BOLT

Note: (See Footnote)

$

$

Not available

22

* NUT

Note: (See Footnote)

$

$

Not available

23

Simplicity 5100079

PIN, HITCH, BLACK W/ PLASTIC LANYARD
(Superseded to 5100079SM)

$35.99

$

Usually ships in 2-12 days

0

24

Simplicity 5100383

RUBBER BUMPER
(Superseded to 5100383SM)

$3.99

$

In Stock, only 2 left!

0

25

*BOLT

$

$

Not available

26

*NUT

$

$

Not available

28

ROPS (Call 1-800-933-6175 x708 if replacing a ROPS)

$

$

Not available
