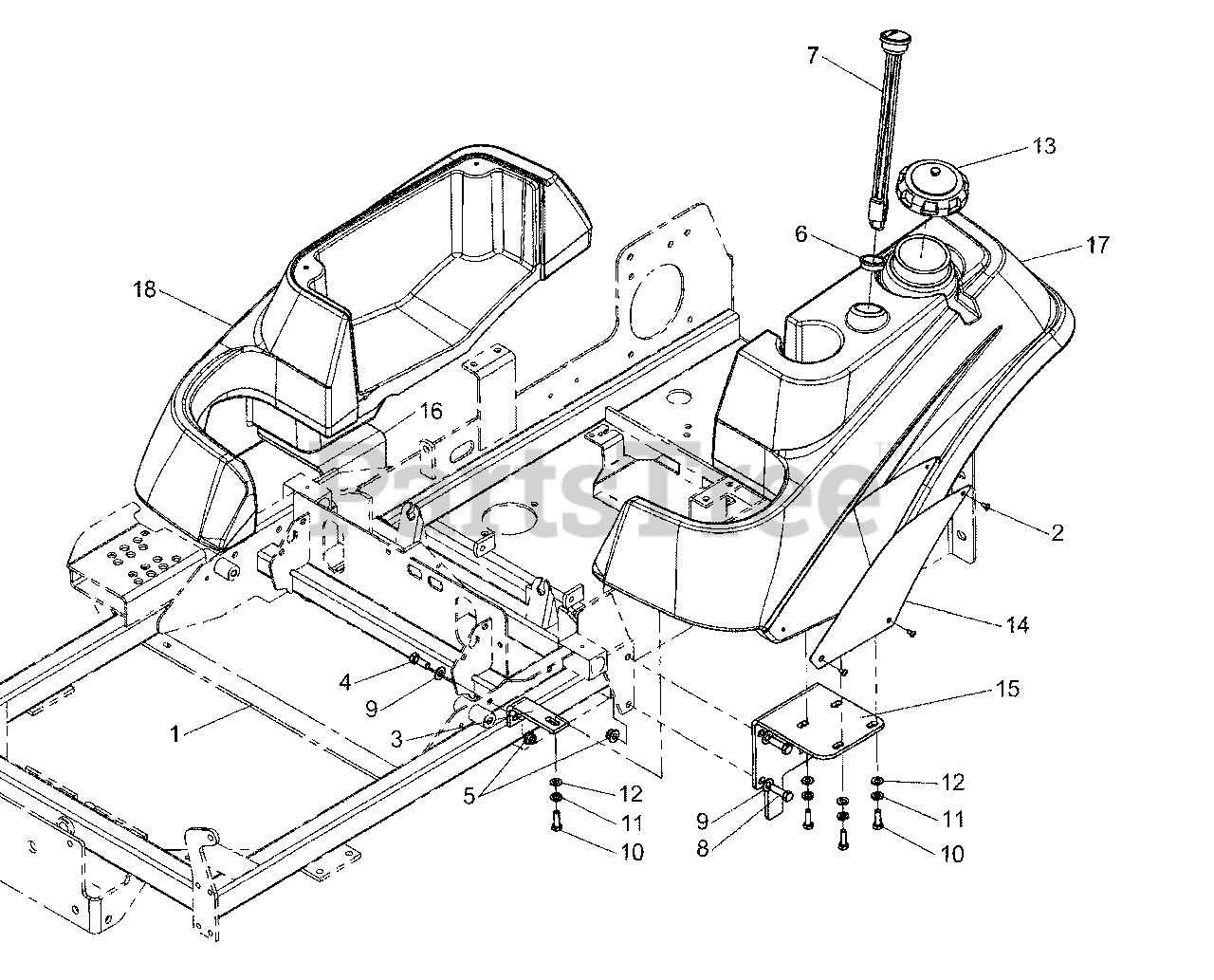

2690445 - Simplicity Citation 52" Zero-Turn Mower, 23hp Briggs & Stratton Fuel Tank & Mount Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

Citation 52" Zero-Turn Mower, 23hp Briggs & Stratton

Fuel Tank & Mount Group - 48" Models & 52" Models S/N: 2014624505 & Below Parts Diagram

  • Title

1

MAIN FRAME

$

$

Not available

2

Simplicity 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

3

Simplicity 5400012A

MOUNT, TANK, FRONT - BLK
(Superseded to 5400012AYP)

$14.99

$

Usually ships in 2-12 days

0

4

Simplicity 5025013X8

BOLT, 3/8-16 X 1" GD5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

5

Simplicity 5025394

NUT, 3/8-16 Hex Nylock Flange
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 5022917X1

GROMMET
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 4 left!

0

7

Simplicity 5022917

GAUGE, FUEL LEVEL
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025013X10

BOLT, 3/8-16 X 1-1/4"
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 2 left!

0

9

Simplicity 5025293

WASHER 3/8" GD.9 FLAT
(Superseded to 5025293SM)

$3.99

$

In Stock, Qty 7

0

10

Simplicity 5025011X8

BOLT, 5/16-18 X 1"
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025170

WASHER, 5/16" Lock
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025292

WASHER, 5/16" GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

13

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014923026 & Above)

$40.99

$

In Stock, only 2 left!

0

13

Simplicity 5022158

FUEL TANK CAP
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & Below)

$30.99

$

In Stock, Qty 5

0

14

Simplicity 5400250C

PLATE, BADGE
(Superseded to 5400250CSM)

$11.99

$

Usually ships in 2-12 days

0

15

Simplicity 5049942C

TANK MOUNT - LH
(Superseded to 5049942A)

$45.99

$

Usually ships in 2-12 days

0

16

Simplicity 5049941C

TANK MOUNT - RH
(Superseded to 5049941CSM)

$

$

Not available

17

Simplicity 5103176

TANK, FUEL, LH, 1500Z
(Superseded to 5103176YP)

Note: (S/N: 2014923026 & Above)

$551.99

$

Usually ships in 2-12 days

0

17

Simplicity 5049947

TANK, FUEL, CITATION/ZT400 - LH
(Superseded to 5103301YP)

Note: (S/N: 2014923025 & Below)

$555.99

$

Usually ships in 2-12 days

0

18

Simplicity 5049948

TANK, FENDER, CITATION/ZT4000 - RH
(Superseded to 5049948SM)

$308.99

$

In Stock, only 1 left!

0
