2690476 - Simplicity Javelin 38" Zero-Turn Mower, 20hp Kohler 38" & 42" Mower Deck - Lift Group (ja3842dl) Parts Diagram

Javelin 38" Zero-Turn Mower, 20hp Kohler

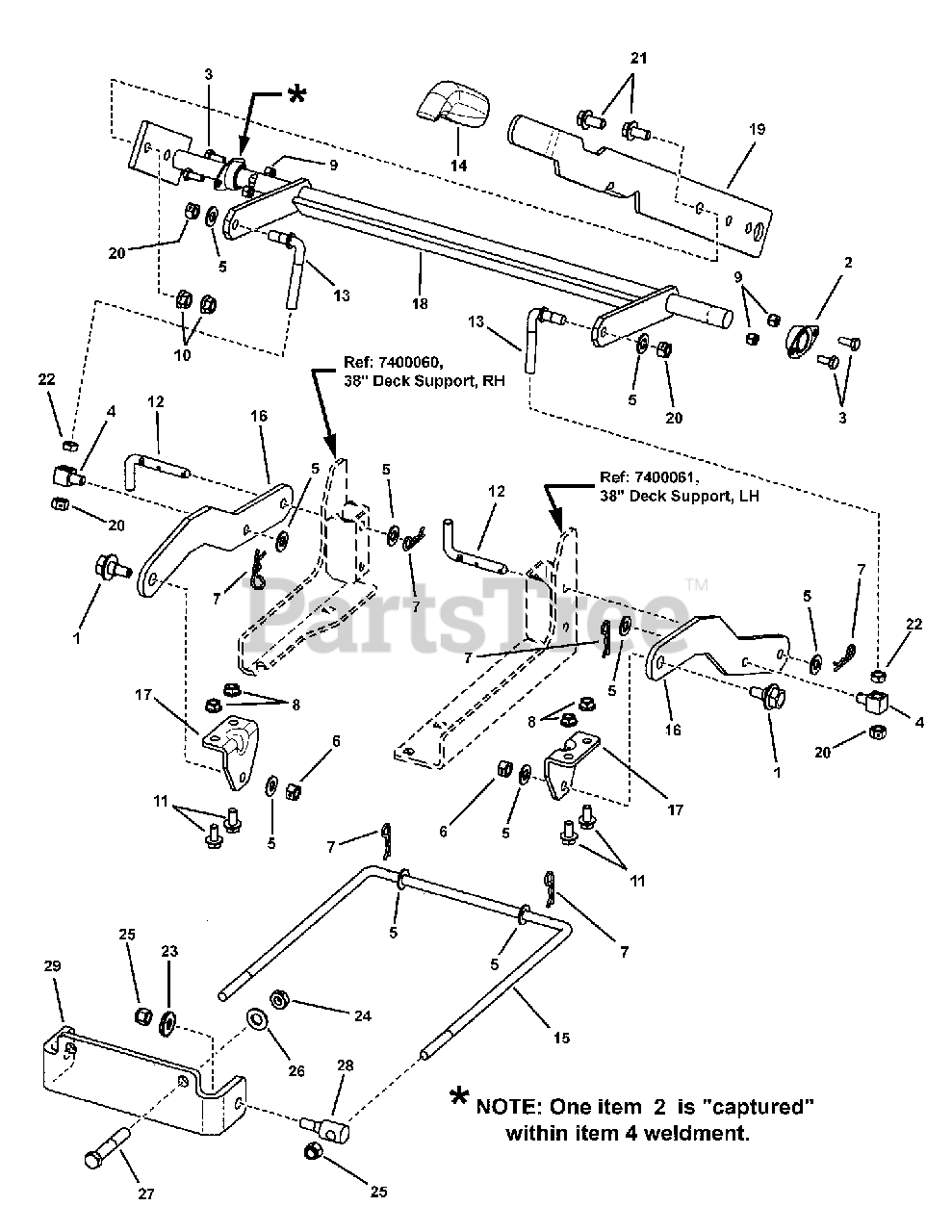

38" & 42" Mower Deck - Lift Group (ja3842dl) Parts Diagram

  • Title

1

Simplicity 7014981

HFB, 3/8F GR8
(Superseded to 7014981SM)

$14.99

$

In Stock, Qty 12

0

2

Simplicity 7026196SM

BEARING, Flange, .75 ID Powdered Metal

$7.49

$

In Stock, Qty 14

0

3

Simplicity 7090072SM

CAPSCREW, Hex Head, 1/4C X5/8 GR5 YZ
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 7028037SM

SWIVEL, In-Line Brake Arm, Yellow

$75.99

$

In Stock, only 1 left!

0

5

Simplicity 1924940SM

WASHER, 3/8 SAE YZ
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 7090289SM

NUT, Hex Center Lock, 3/8F GR5 YZ
(Superseded to 703458)

$4.99

$

In Stock, Qty 12

0

7

Simplicity 7091503SM

HAIR PIN, 3/32X1-1/2

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

9

Simplicity 7091603SM

NUT, Hex Lock Nylon, 1/4C YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8C YZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Simplicity 7091811SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 5/16C X5/8 GR5 YZ
(Superseded to 703823)

$3.99

$

In Stock, Qty 7

0

12

Snapper 7100125SM

PIN, Quick Hitch

$5.49

$

Usually ships in 2-12 days

0

13

Simplicity 7100210SM

LINK, Leveling, RZT

$11.99

$

Usually ships in 2-12 days

0

14

Simplicity 1722302SM

GRIP

$8.49

$

In Stock, Qty 11

0

15

Simplicity 7200019

ROD, Deck Hanger FrontT, 38/42
(Superseded to 7200019SM)

$38.99

$

In Stock, only 1 left!

0

16

Simplicity 7300024SM

BAR, Rear Lift, 38/42
(Superseded to 7300024BMYP)

$19.99

$

Usually ships in 2-12 days

0

17

Simplicity 7300028SM

BRACKET, Deck Hanger
(Superseded to 7300028BMYP)

$14.99

$

Usually ships in 2-12 days

0

18

Simplicity 7400011SM

WELD, Deck Lift, 38/42
(Superseded to 1757866BMYP)

$193.99

$

Usually ships in 2-12 days

0

19

Simplicity 7300037SM

HANDLE, Deck Lift

$25.99

$

Usually ships in 2-12 days

0

20

Simplicity 7091585SM

NUT, Hex Center Lock, 3/8C GR5 YZ
(Superseded to 703347)

$4.99

$

In Stock, Qty 17

0

21

Simplicity 7091588SM

CAPSCREW, Hex Head, Whiz Lock, Flange, 3/8C X3/4 GR5 YZ
(Superseded to 703955)

$4.49

$

In Stock, Qty 20+

0

22

Simplicity 7090665SM

NUT, Hex, Jam, 3/8C YZ
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

23

Simplicity 7032030SM

WASHER, .406X1.25X.132 ZP

$4.49

$

In Stock, only 1 left!

0

24

Simplicity 7090377SM

NUT, Hex Center Lock Jam, 7/16F GR5 YZ
(Superseded to 703348)

$5.49

$

In Stock, Qty 20+

0

25

Simplicity 7091299SM

NUT, Hex, 3/8C, Nylock YZ
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

26

Simplicity 7091595SM

WASHER, .47X.92X.065 YZ
(Superseded to 703183)

$3.99

$

In Stock, only 1 left!

0

27

Simplicity 7091703SM

CAPSCREW, Hex Head, 7/16F X2-1/2 GR5 YZ

$7.99

$

Usually ships in 2-12 days

0

28

Simplicity 7200028

SWIVEL, 3/8, Yellow
(Superseded to 7200028SM)

$73.99

$

In Stock, only 2 left!

0

29

Simplicity 7300080SM

BRACKET, Quick Hitch

$25.99

$

Usually ships in 2-12 days

0
