2690476 - Simplicity Javelin 38" Zero-Turn Mower, 20hp Kohler Transaxle Group (7500091) Parts Diagram

Javelin 38" Zero-Turn Mower, 20hp Kohler

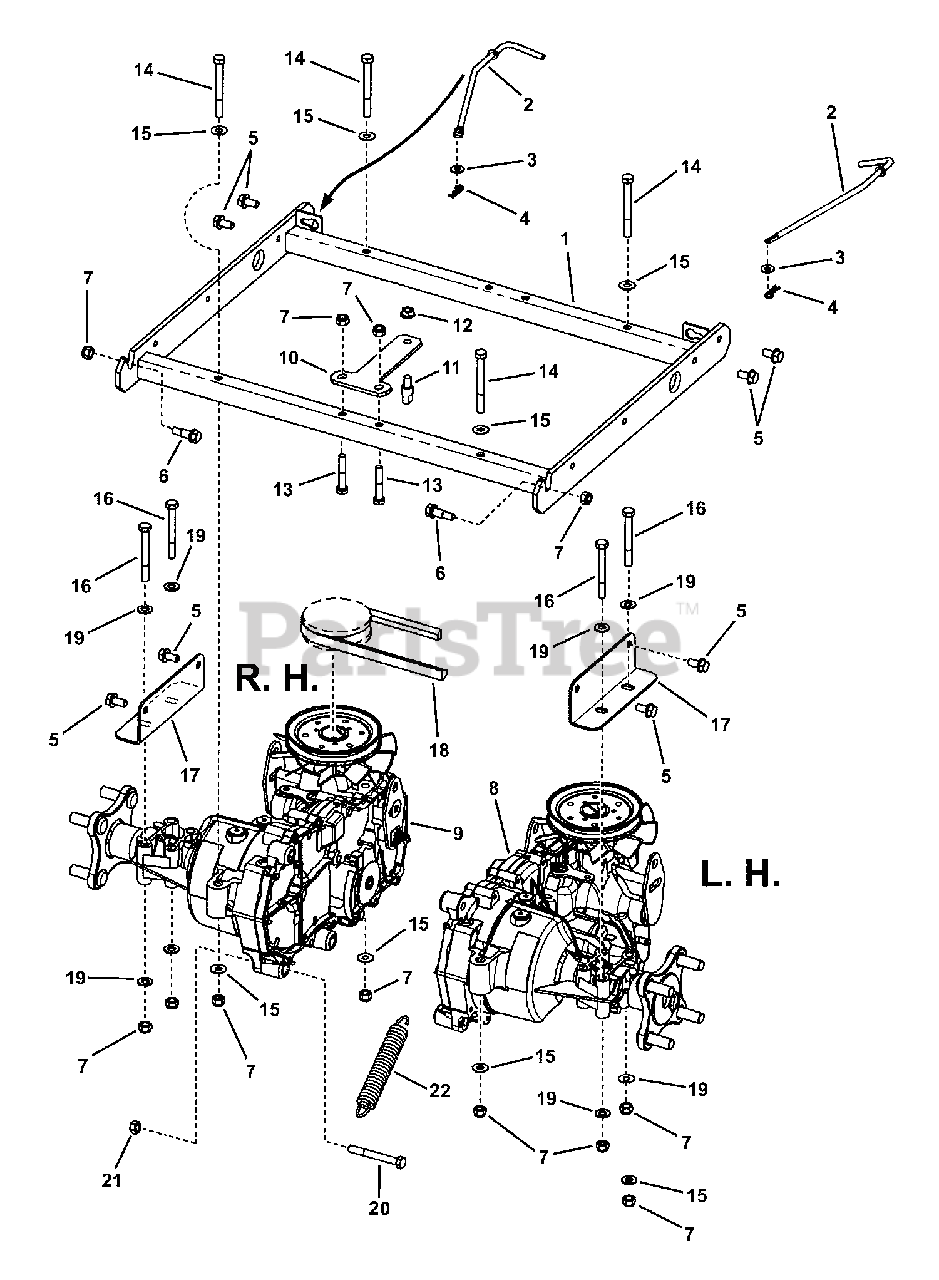

Transaxle Group (7500091) Parts Diagram

  • Title

1

Simplicity 7400020SM

WELD, Transaxle Support

$210.99

$

Usually ships in 2-12 days

0

2

Simplicity 7100229SM

ROD, Roll Release

$5.99

$

Usually ships in 2-12 days

0

3

Simplicity 7091294SM

WASHER, .28 x .63 x .065 YZ
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

4

Simplicity 7012431SM

HAIR PIN, 1.12

$2.99

$

In Stock, only 1 left!

0

5

Simplicity 1664847SM

CAPSCREW, Hex Head Flange Taptite, 5/16C x 3/4 YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 7014664SM

BOLT, Shoulder, 5/16C x 1/2, 3/8 DIA, YZ

$1.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025057SM

NUT, Hex, Lock, 5/16C ESNA YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

8

Simplicity 7078112SM

TRANSAXLE, RZT, LH

$1003.99

$

Usually ships in 2-12 days

0

9

Simplicity 7078111SM

TRANSAXLE, RZT, RH

$1003.99

$

Usually ships in 2-12 days

0

10

Simplicity 7300082SM

BRACKET, Anti-Rotation

$25.99

$

Usually ships in 2-12 days

0

11

Simplicity 7200046

PIN, Anti-Rotation, RZT Clutch, Yellow
(Superseded to 7200046SM)

$112.99

$

Usually ships in 2-12 days

0

12

Simplicity 1931277SM

NUT, Hex Flange Lock, 5/16C GR5 YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

13

Simplicity 1922127SM

CAPSCREW, Hex Head, 5/16C x 1-3/4 GR5 YZ
(Superseded to 704288)

$4.99

$

In Stock, only 2 left!

0

14

Simplicity 7091830SM

CAPSCREW, Hex Head, 5/16C x 3 GR5 YZ
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

15

Simplicity 7015686SM

WASHER, Shim, .314 x .75 x .032 BP

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 7091944SM

CAPSCREW, Hex Head, 5/16C x 2-3/4 GR5 YZ
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

17

Simplicity 7300000SM

BRACKET, Transaxle Support
(Superseded to 7300000BMYP)

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 7100102SM

V-BELT, Hydro Drive (HA section, 58.00" effective length)

$43.99

$

In Stock, only 3 left!

0

19

Simplicity 7090188SM

WASHER, .34 x .69 x .08 YZ
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

20

Simplicity 7091703SM

CAPSCREW, Hex Head, 7/16F x 2-1/2 GR5 YZ

$7.99

$

Usually ships in 2-12 days

0

21

Simplicity 7090377SM

NUT, Hex Center Lock Jam, 7/16F GR5 YZ
(Superseded to 703348)

$5.49

$

In Stock, Qty 20+

0

22

Simplicity 2159106SM

SPRING, Extension
(Superseded to 703144)

$5.99

$

In Stock, Qty 10

0
