2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler 61" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 2012617338 & Below) Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

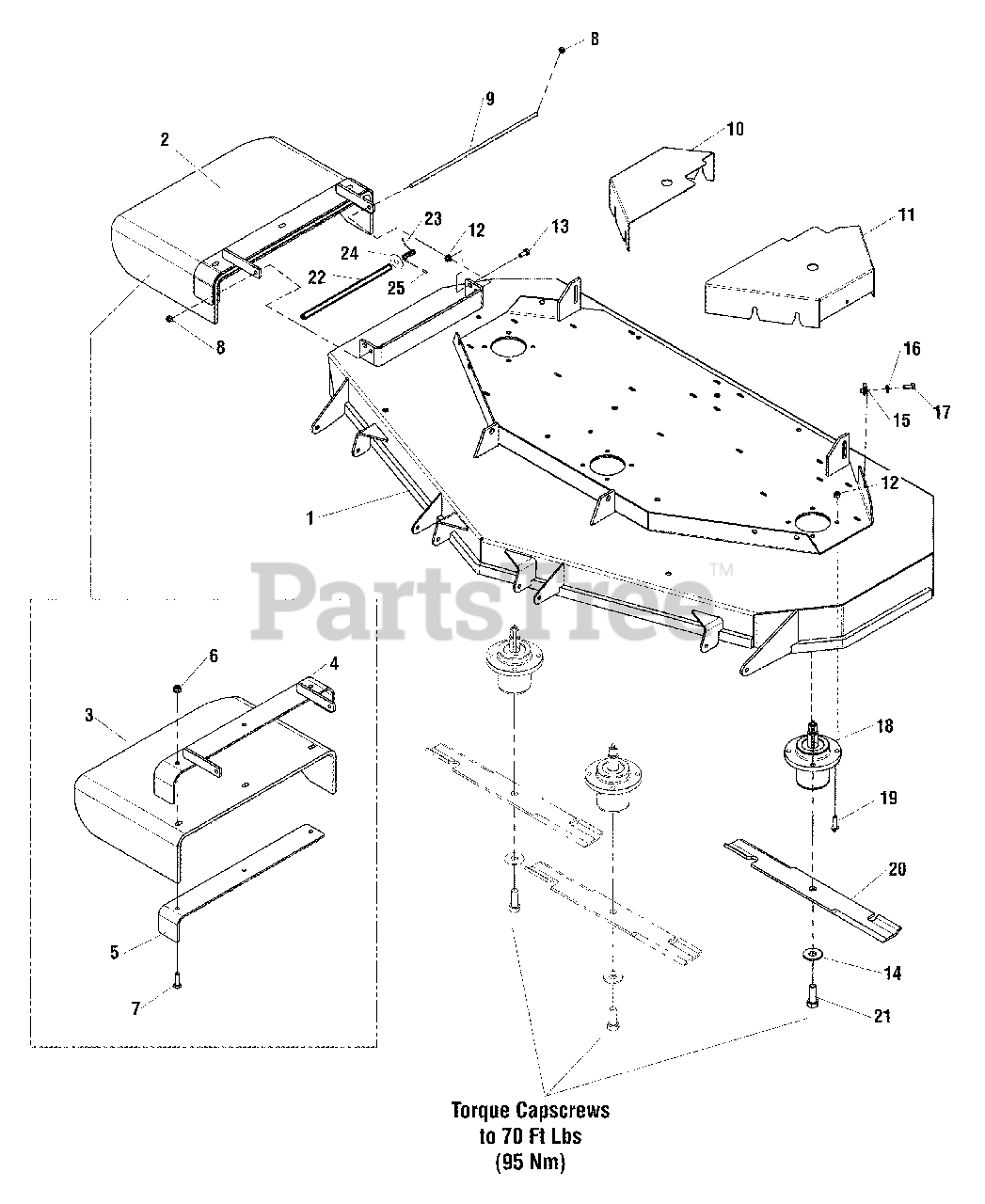

61" Mower Deck - Housing, Covers, Spindles & Blades (S/N: 2012617338 & Below) Parts Diagram

  • Title

1

Simplicity 5600110SM

DECK SHELL W/DECALS, 61" - ORANGE

Note: (Includes Safety Decals)

$1937.99

$

Usually ships in 2-12 days

0

2

ORDER INDIVIDUAL PIECES TO SERVICE DISCHARGE CHUTE COMPONENTS

Note: (Includes Ref No. 3 - 7)

$

$

Not available

3

Simplicity 5100525SM

CHUTE, DISCHARGE, RUBBER, 61
(Superseded to 5600087SM)

$

$

Not available

4

Simplicity 5061293CSM

WELD, FRAME, CHUTE, 61 - ORANGE

$45.99

$

In Stock, only 1 left!

0

5

Simplicity 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

In Stock, only 1 left!

0

6

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5

$3.99

$

In Stock, only 2 left!

0

8

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

9

Simplicity 5061300SM

ROD MOUNT, CHUTE 61"

$13.99

$

In Stock, only 1 left!

0

10

Simplicity 5400791CSM

GUARD, 61", RH - ORANGE

$54.99

$

Usually ships in 2-12 days

0

11

Simplicity 5400792CSM

GUARD, 61" - LH - ORANGE
(Superseded to 5405484CYP)

$79.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

13

Simplicity 1930591SM

SCREW-HEX WZ LOCK FLNG 5/16-18X0.750BLK
(Superseded to 703354)

$5.49

$

In Stock, Qty 12

0

14

Simplicity 5025159SM

WASHER, 5/8" USS
(Superseded to 5025477SM)

$3.99

$

In Stock, only 4 left!

0

15

Simplicity 5022308SM

BODY CLIP, 5/16-18 X 1/2" DEEP

$5.99

$

In Stock, Qty 9

0

16

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GD5

$3.99

$

In Stock, only 3 left!

0

18

Simplicity 5061095SM

ASSM, SPINDLE, LOW PROFILE

Note: (See Spindle Service Parts Group)(Nut and Washer sold seperately)

$222.99

$

In Stock, only 1 left!

0

19

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4" FLANGE

$3.99

$

In Stock, Qty 5

0

20

Simplicity 5020842ASM

BLADE, 21"

$28.99

$

In Stock, Qty 20+

0

21

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 19

0

22

Simplicity 5050086X8SM

TORSION SPRING SPACER

$8.99

$

In Stock, only 1 left!

0

23

Simplicity 5023385SM

TORSION SPRING

$8.49

$

Usually ships in 2-12 days

0

24

Simplicity 5025164SM

WASHER, 5/16" Fender

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 5023489SM

CAP

$3.99

$

Usually ships in 2-12 days

0
