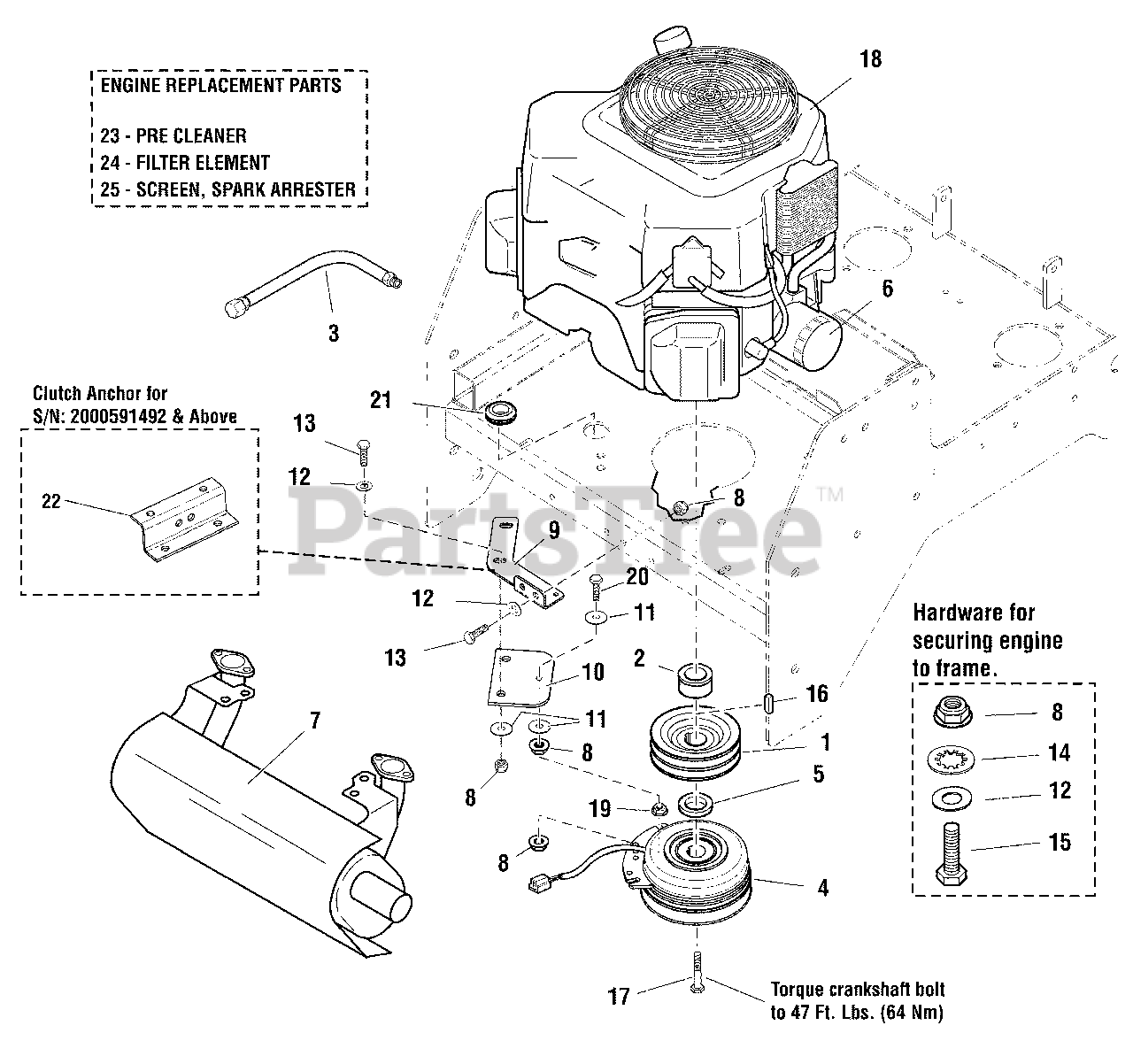

2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Engine Group - PTO Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

Engine Group - PTO Parts Diagram

  • Title

1

Simplicity 5047075SM

PULLEY, CRANKSHAFT (DOUBLE A)

Note: (See Pump Drive Group.)

$137.99

$

In Stock, only 1 left!

0

2

Simplicity 5047033SM

SPACER, 1.13 X 1.75 X 1.03

$13.99

$

Usually ships in 2-12 days

0

3

Simplicity 5048681SM

HOSE, OIL DRAIN

$18.99

$

In Stock, only 1 left!

0

4

Simplicity 5105090YP

CLUTCH,5218-134, WARNER

$456.99

$

In Stock, only 1 left!

0

5

Simplicity 5044062SM

SPACER, 1.13 X 1.75 X .50

$19.99

$

In Stock, only 1 left!

0

6

Simplicity 5021334X1SM

OIL FILTER (49065-2078)
(Superseded to 5213341SM)

$31.99

$

Usually ships in 2-12 days

0

7

Simplicity 5101275SM

MUFFLER, KOHLER

Note: (See your Kohler dealer for muffler gaskets.)

$329.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

9

Simplicity 5061857CSM

PLATE, CLUTCH ANCHOR

Note: (Serial No. 2000591491 & Below.)

$32.99

$

Usually ships in 2-12 days

0

10

Simplicity 5043636SM

CLUTCH ANCHOR PAD

$11.99

$

In Stock, only 1 left!

0

11

Simplicity 5044617SM

WASHER, .34 X 1.25 X 10 GA

$8.49

$

In Stock, only 2 left!

0

12

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

14

Simplicity 5025188SM

WASHER, 5/16" INT. TOOTH LOCK

$3.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4" GD5

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 5050407X8SM

KEY, 1/4" SQ. X 1

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 5045289SM

BOLT, CRANKSHAFT 7/16 X 2 3/4

$4.99

$

Usually ships in 2-12 days

0

18

ENGINE, KOHLER

$

$

Not available

19

Simplicity 5025139SM

NUT 5/16-18 HEX SERRATED FLANGE (LARGE)

$3.49

$

In Stock, only 2 left!

0

20

Simplicity 5025052X18SM

BOLT, 5/16-18 X 2-1/4" GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

21

Simplicity 5021379SM

GROMMET, 7/8

$6.99

$

Usually ships in 2-12 days

0

22

Simplicity 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

Note: (Serial No. 2000591492 & Above.)

$16.99

$

Usually ships in 2-12 days

0

23

Simplicity 5101254X1

PRE CLEANER, KOHLER ENGINE

Note: (NOT ILLUSTRATED)

$

$

Not available

24

Simplicity 5101254X2

FILTER ELEMENT, KOHLER ENGINE

Note: (NOT ILLUSTRATED)

$

$

Not available

25

Simplicity 5101641SM

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (NOT ILLUSTRATED)

$84.99

$

Usually ships in 2-12 days

0
