2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Fuel Tank & Mount Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

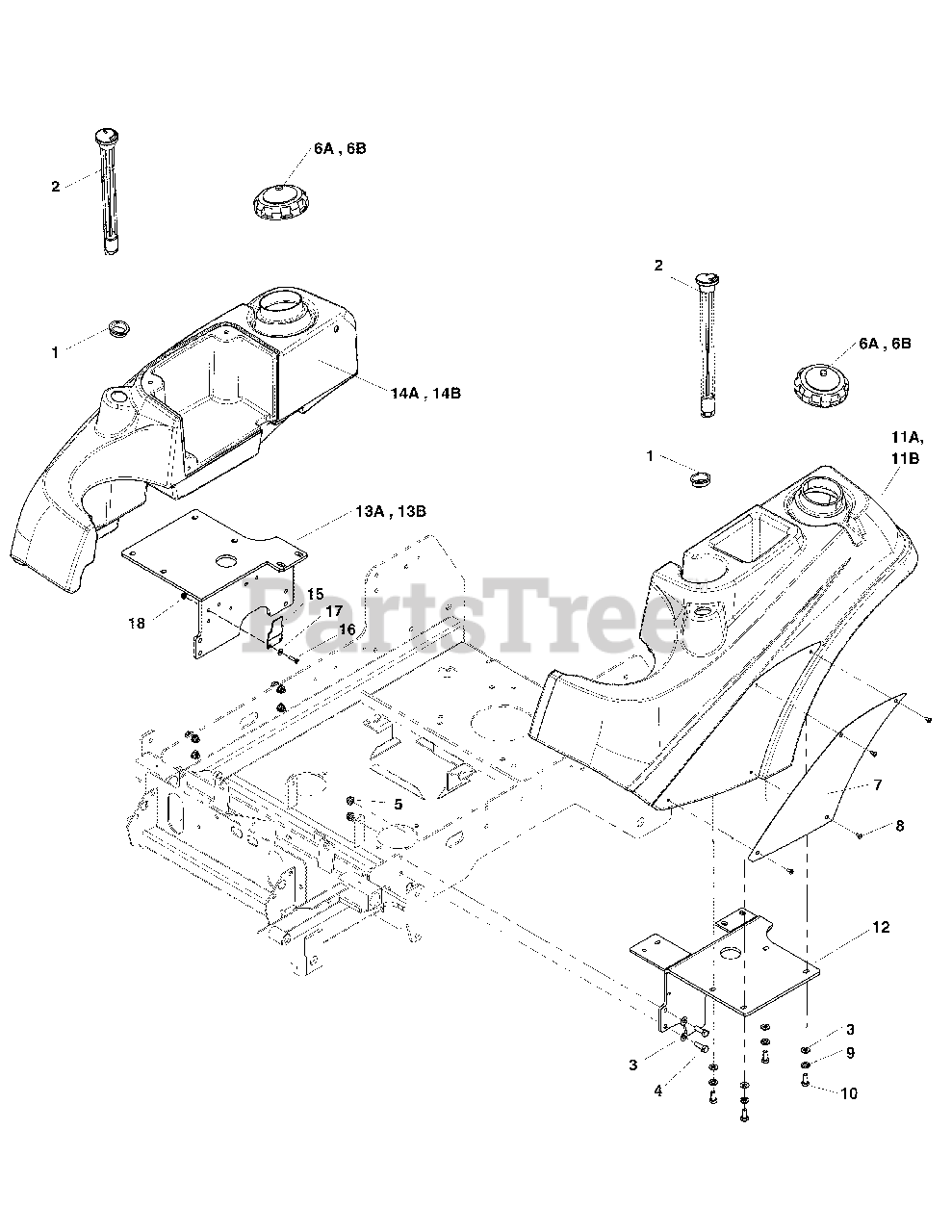

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Simplicity 5022917X1

GROMMET, FUEL GAGE
(Superseded to 5022917X1SM)

$6.99

$

In Stock, only 4 left!

0

2

Simplicity 5022917

GAUGE, FUEL 12"
(Superseded to 5022917FS)

$48.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Simplicity 5025011X8

BOLT, 5/16-18 X 1" GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

5

Simplicity 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

6a

Simplicity 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014923026 & ABOVE)

$40.99

$

In Stock, only 2 left!

0

6b

Simplicity 5022158

CAP, FUEL TANK, 3-1/2" NECK
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & BELOW)

$30.99

$

In Stock, Qty 5

0

7

Simplicity 5401095C

PLATE, TANK BADGE, COBALT - ORANGE
(Superseded to 5401095CSM)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025386

SCREW, Allen Head, #10-24 x 3/8"
(Superseded to 5025386SM)

$3.99

$

Usually ships in 2-12 days

0

9

Simplicity 5025170

WASHER, 5/16" LOCK
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

10

Simplicity 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 3 left!

0

11a

Simplicity 5103178

TANK, FUEL, LH
(Superseded to 5103178YP)

Note: (S/N: 2014923026 & ABOVE)

$652.99

$

Usually ships in 2-12 days

0

11b

Simplicity 5100176

TANK, FUEL, LH
(Superseded to 5102975YP)

Note: (S/N: 2014923025 & BELOW)

$384.99

$

Usually ships in 2-12 days

0

12

Simplicity 5408898A

WELD, TANK MOUNT, LH - BLK
(Superseded to 5408898AYP)

$159.99

$

Usually ships in 2-12 days

0

13a

Simplicity 5409577A

WELD, TANK MOUNT - RH - BLK
(Superseded to 5409577AYP)

Note: (S/N: 2015683595 & ABOVE)

$153.99

$

Usually ships in 2-12 days

0

13b

Simplicity 5408901A

WELD, TANK MOUNT - RH - BLK
(Superseded to 5408901AYP)

Note: (S/N: 2015683594 & BELOW)

$153.99

$

Usually ships in 2-12 days

0

14a

Simplicity 5103177

TANK, FUEL, RH
(Superseded to 5103177YP)

Note: (S/N: 2014923026 & ABOVE)

$604.99

$

Usually ships in 2-12 days

0

14b

Simplicity 5100175

TANK, FUEL, RH
(Superseded to 5102974)

Note: (S/N: 2014923025 & BELOW)

$604.99

$

Usually ships in 2-12 days

0

15

Simplicity 5409349A

PLATE, FUSE BLOCK TAB
(Superseded to 5409349AYP)

Note: (S/N: 2015683595 & ABOVE)

$6.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025179X6

SCREW, #10-24 X 3/4 ROUND
(Superseded to 5025179X6SM)

Note: (S/N: 2015683595 & ABOVE)

$3.99

$

Usually ships in 2-12 days

0

17

Simplicity 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

Note: (S/N: 2015683595 & ABOVE)

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 5025217

NUT, #10-24 HEX

Note: (S/N: 2015683595 & ABOVE)

$

$

Not available
