2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Hydraulic Mount Group Parts Diagram
Cobalt 61" Zero-Turn Mower, 27hp Kohler

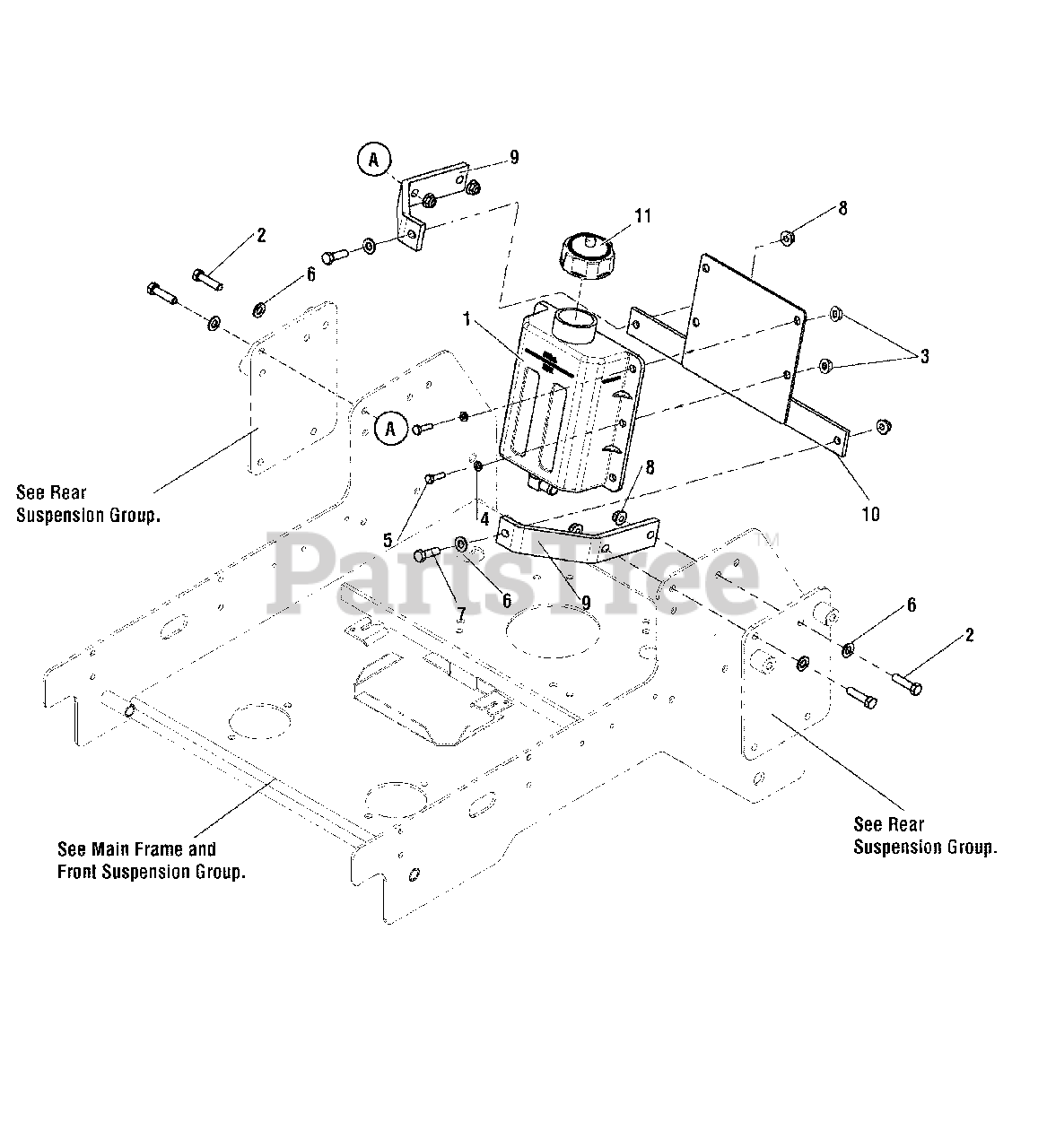

Hydraulic Mount Group Parts Diagram
Simplicity 5061712SM
TANK, HYDRAULIC, ASSEMBLY
$154.99
$
In Stock, Qty 5
Simplicity 5025013X12SM
BOLT, 3/8-16 X 1-1/2" GD5 YZ
$3.99
$
Usually ships in 2-12 days
Simplicity 703463
NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)
$4.49
$
In Stock, Qty 5
Simplicity 703332
WASHER, 1/4 SAE (5025154)
$4.49
$
In Stock, Qty 17
Simplicity 5025010X8SM
BOLT, 1/4-20 X 1", GD
$3.99
$
Usually ships in 2-12 days
$3.99
$
In Stock, Qty 20+
Simplicity 5025013X10SM
BOLT, 3/8-16 X 1-1/4" GD5
$3.99
$
In Stock, only 2 left!
Simplicity 5025394SM
NUT, 3/8-16 HEX NYLOCK FLANGE
$4.49
$
In Stock, Qty 20+
Simplicity 5061746CSM
BRACKET, HYDRAULIC TANK - ORANGE
$18.99
$
Usually ships in 2-12 days
Simplicity 5400654CSM
WELD, HYD TANK MOUNT - ORANGE
$93.99
$
Usually ships in 2-12 days
Simplicity 5100017SM
CAP, HYDRAULIC
$23.99
$
Usually ships in 2-12 days
