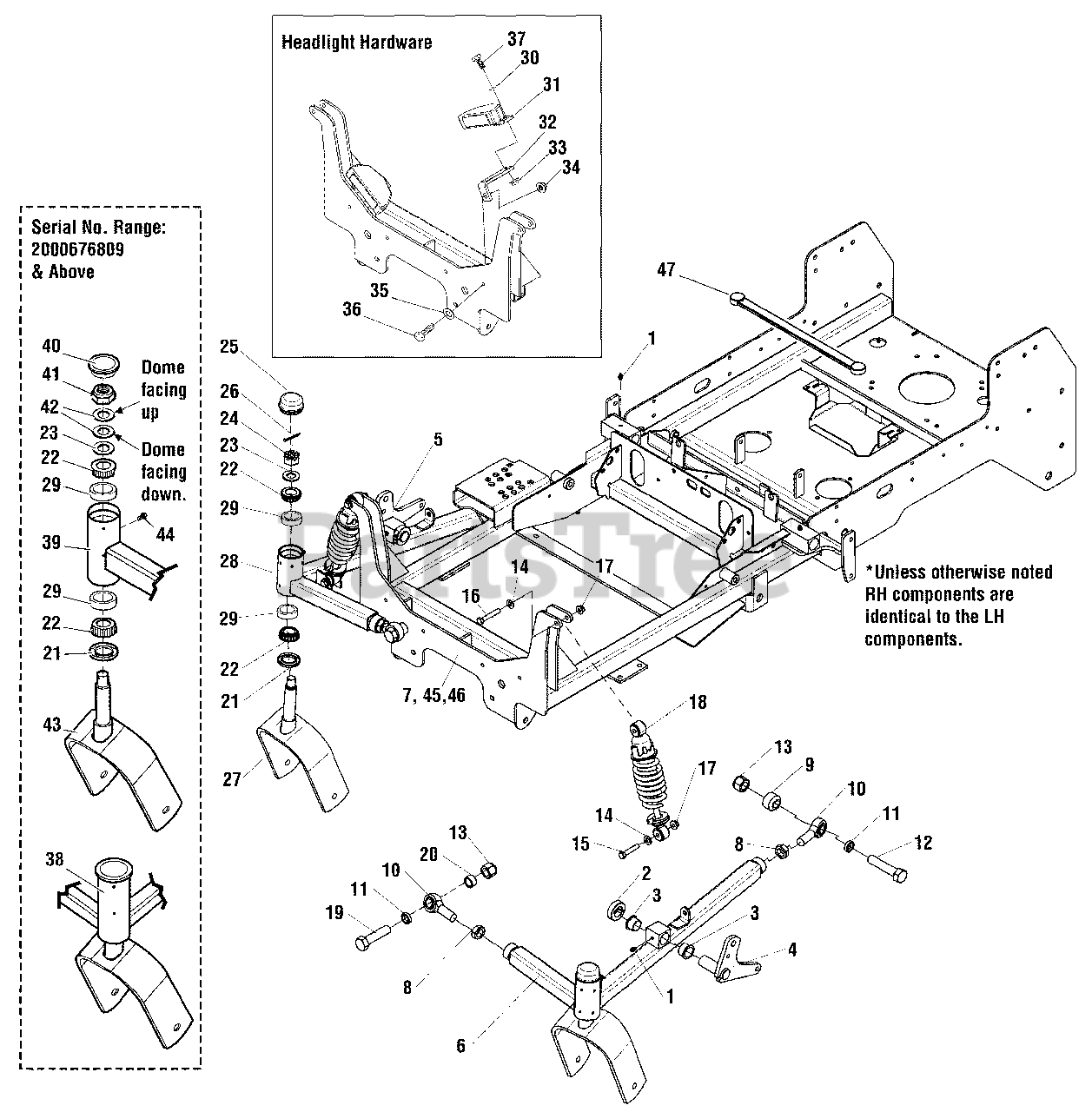

2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Main Frame & Front Suspension Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

Main Frame & Front Suspension Group Parts Diagram

  • Title

1

Simplicity 5020095SM

GREASE FITTING, 1/4-28 STR

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 5020602SM

COLLAR, 1" SPLIT

$22.99

$

In Stock, only 1 left!

0

3

Simplicity 5023356SM

BUSHING, 1.00 X 1.13 X .75, PLASTIC

Note: (Qty: 2 per suspension arm)

$6.49

$

Usually ships in 2-12 days

0

4

Simplicity 5400632CSM

WELD, DECK LIFT LEVER, LH - ORANGE

$43.99

$

Usually ships in 2-12 days

0

5

Simplicity 5400651CSM

WELD, DECK LIFT LEVER, RH - ORANGE

$43.99

$

Usually ships in 2-12 days

0

6

Simplicity 5400564CSM

WELD, FRONT A-ARM, LH - ORANGE

Note: (Includes Ref Nos. 1 and 3)

$170.99

$

Usually ships in 2-12 days

0

7

Simplicity 5400546CSM

WELD, MAIN FRAME - ORANGE

Note: (Serial No.: 2012612074 & Below)

$

$

Not available

8

Simplicity 5025093SM

NUT, HEX JAM, 3/4-16

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 5046093SM

SPACER, .75 X 1.50 X 1.00

$10.99

$

Usually ships in 2-12 days

0

10

Simplicity 5022039SM

BALL JOINT, 3/4-16 MALE

$37.99

$

In Stock, only 2 left!

0

11

Simplicity 5047461SM

SPACER, .76 X 1.00 X .25

$4.99

$

Usually ships in 2-12 days

0

12

Simplicity 5025265X28SM

3/4-16 X 3.5" HHCS YZP GR 5

$15.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025284SM

NUT, 3/4-16 HEX NYLON LOCK

$3.49

$

In Stock, only 1 left!

0

14

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5025013X16SM

BOLT, 3/8-16 X 2" GD5

$4.49

$

In Stock, Qty 6

0

16

Simplicity 5025013X18SM

BOLT, 3/8-16 X 2-1/4" GD5

$3.99

$

In Stock, only 2 left!

0

17

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

18

Simplicity 5023436SM

COIL - OVER SHOCK ASSEMBLY

$210.99

$

In Stock, only 1 left!

0

19

Simplicity 5025265X24SM

BOLT, 3/4-16 X 3" GD 5

$13.99

$

Usually ships in 2-12 days

0

20

Simplicity 5046092SM

SPACER, .76 X 1.00 X .50

$5.99

$

In Stock, only 1 left!

0

21

Simplicity 5021072SM

SEAL, GREASE

$7.49

$

In Stock, only 4 left!

0

22

Simplicity 5020884SM

BEARING, TAPPERD ROLLER, 1"

$25.99

$

In Stock, only 1 left!

0

23

Simplicity 5025160SM

WASHER, 3/4" SAE

$3.99

$

Usually ships in 2-12 days

0

24

Simplicity 5025104SM

NUT, 3/4-16 HEX SLOTTED
(Superseded to 1960387SM)

$6.49

$

Usually ships in 2-12 days

0

25

Simplicity 5021073SM

CAP, DUST

$7.49

$

In Stock, Qty 5

0

26

Simplicity 5025203X10SM

PIN, COTTER, 1/8" X 1-1/4"

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 5047049CSM

WELD, CASTER YOKE - ORANGE
(Superseded to 5600098SM)

$176.99

$

Usually ships in 2-12 days

0

28

Simplicity 5400567CSM

WELD, FRONT A-ARM, RH - ORANGE

Note: (Includes Ref Nos. 1 and 3)

$323.99

$

Usually ships in 2-12 days

0

29

Simplicity 5020883SM

BEARING CUP

$9.49

$

In Stock, only 3 left!

0

30

Simplicity 703332

WASHER, 1/4 SAE (5025154)

$4.49

$

In Stock, Qty 17

0

31

Simplicity 5023482SM

HEADLIGHT, 4" RECTANGULAR

$47.99

$

In Stock, only 1 left!

0

32

Simplicity 5401160CSM

MOUNT, HEAD LIGHT - ORANGE

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 703463

NUT, 1/4-20 HEX NYLOCK FLANGE (5025391)

$4.49

$

In Stock, Qty 5

0

34

Simplicity 5025392SM

NUT, 5/16-18" NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

35

Simplicity 5025155SM

WASHER, 5/16" SAE FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

36

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1"
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

37

Simplicity 5025010X8SM

BOLT, 1/4-20 X 1", GD

$3.99

$

Usually ships in 2-12 days

0

38

Simplicity 5402214CSM

WELD, FRONT A-ARM - LH - ORG

Note: (Serial No.: 2000676809 & Above)

$

$

Not available

39

Simplicity 5402215CSM

WELD. FRONT A-ARM - RH - ORG
(Superseded to 5400567CSM)

Note: (Serial No.: 2000676809 & Above)

$323.99

$

Usually ships in 2-12 days

0

40

Simplicity 5102929SM

CAP, LOW PROFILE, STEEL

Note: (Serial No.: 2000676809 & Above)

$

$

Not available

41

Simplicity 5025448SM

NUT, 3/4-16 HEX JAM NYLON LOCK

Note: (Serial No.: 2000676809 & Above)

$3.49

$

Usually ships in 2-12 days

0

42

Simplicity 5025449SM

BELLEVILLE WASHER, 1.500 X .755

Note: (Serial No.: 2000676809 & Above)

$4.99

$

In Stock, Qty 7

0

43

Simplicity 5402208CSM

WELD, CASTER YOKE - ORG

Note: (Serial No.: 2000676809 & Above)

$170.99

$

Usually ships in 2-12 days

0

44

Simplicity 5025457SM

BOLT, 1/4-28 X 1/2, GD5 YZ

Note: (Serial No.: 2000676809 & Above)

$3.99

$

Usually ships in 2-12 days

0

45

Simplicity 5403762CSM

WELD, MAIN FRAME

Note: (Serial No.: 2012612075 & 2013043646)

$

$

Not available

46

Simplicity 5404097CSM

WELD, MAIN FRAME, IS2000/COBALT - ORG

Note: (Serial No.: 2013043647 & Above.)

$

$

Not available

47

Simplicity 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0
