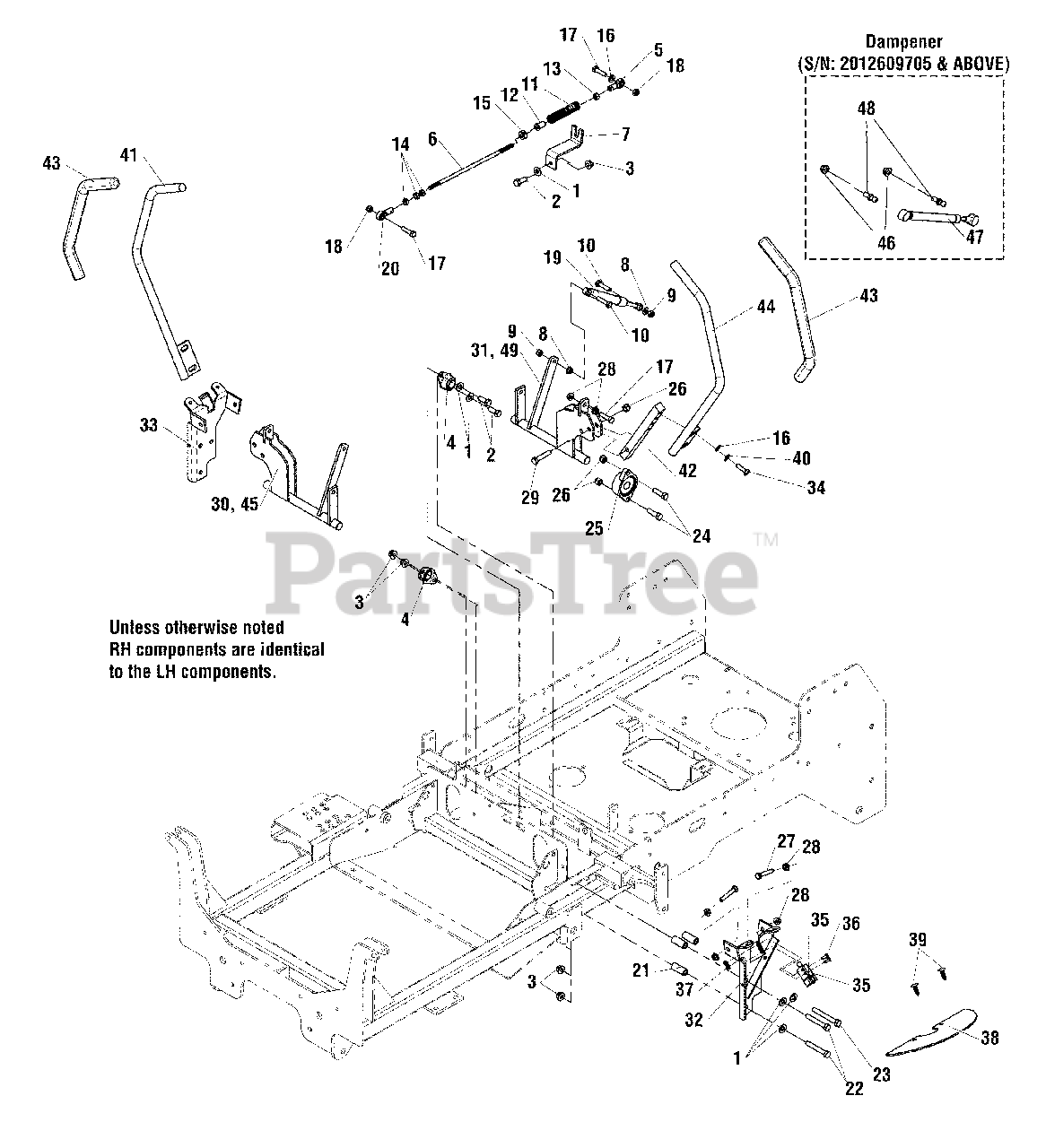

2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Motion Control Group Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

Motion Control Group Parts Diagram

  • Title

1

Simplicity 5025156SM

WASHER 3/8" SAE
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 5025013X8SM

BOLT, 3/8-16 X 1" GD5

$3.99

$

In Stock, only 4 left!

0

3

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

4

Simplicity 5021098SM

BEARING, BRONZE FLANGE 3/4"

$13.99

$

In Stock, Qty 8

0

5

Simplicity 5104494YP

BALL JOINT 5/16-24 LH FEMALE BRONZE RACE

$18.99

$

In Stock, only 1 left!

0

6

Simplicity 5046420SM

ROD, HYDRO LINKAGE

$11.99

$

Usually ships in 2-12 days

0

7

Simplicity 5400653A

MOUNT, REVERSE RETURN - BLK
(Superseded to 5400653AYP)

$10.99

$

Usually ships in 2-12 days

0

8

Simplicity 5025355SM

NUT, M8-1.25 Hex Serrated Flange

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 5025354SM

NUT, M8-1.25 Hex Nylon Lock

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 5025335SM

BOLT, M8-1.25 x 35MM

Note: (S/N: 2012609704 & BELOW)

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5022645SM

SPRING, COMPRESSION

$9.49

$

Usually ships in 2-12 days

0

12

Simplicity 5023260SM

BUSHING, FLANGE 3/8ID X 7/8 LONG

$6.49

$

Usually ships in 2-12 days

0

13

Simplicity 5023212SM

NUT, 5/16 HEX LH

$3.49

$

Usually ships in 2-12 days

0

14

Simplicity 5025033SM

NUT, HEX 5/16-24
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

15

Simplicity 5020047SM

SET COLLAR, 5/16"

$7.49

$

Usually ships in 2-12 days

0

16

Simplicity 5025155SM

WASHER, 5/16" SAE
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

17

Simplicity 5025011X10SM

BOLT, 5/16-18 X 1-1/4" GD5

$3.99

$

In Stock, only 3 left!

0

18

Simplicity 5025057SM

NUT 5/16-18 HEX NYLON LOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 13

0

19

Simplicity 5100728SM

DAMPENER
(Superseded to 5103511YP)

Note: (S/N: 2012609704 & BELOW)

$62.99

$

In Stock, Qty 5

0

20

Simplicity 5104493YP

BALL JOINT 5/16-24 RH FEMALE BRONZE RACE

$18.99

$

In Stock, only 1 left!

0

21

Simplicity 5048264SM

SPACER, .63 X .39 X 1.50

$5.99

$

Usually ships in 2-12 days

0

22

Simplicity 5025013X20SM

BOLT, 3/8-16 X 2-1/2" GD5
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

23

Simplicity 5025013X24SM

BOLT, 3/8-16 X 3" GD5

$3.99

$

In Stock, Qty 5

0

24

Simplicity 5025013X10SM

BOLT, 3/8-16 X 1-1/4" GD5

$3.99

$

In Stock, only 2 left!

0

25

Simplicity 5021499SM

BEARING, FLANGE

$55.99

$

In Stock, only 2 left!

0

26

Simplicity 5025096SM

NUT, 3/8-16 HEX NYLON LOCK

$3.49

$

In Stock, Qty 7

0

27

Simplicity 5025011X14SM

BOLT, 5/16-18 X 1-3/4" GD5

$3.99

$

Usually ships in 2-12 days

0

28

Simplicity 1931277SM

NUT, 5/16-18 HEX SM. SERR. FLG.
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

29

Simplicity 5025013X14SM

BOLT, 3/8-16 X 1-3/4" GD5

$3.99

$

In Stock, Qty 5

0

30

Simplicity 5400570CSM

WELD, CONTROL SHAFT, RH - ORANGE

Note: (S/N: 2012609704 & BELOW)

$84.99

$

Usually ships in 2-12 days

0

31

Simplicity 5400573CSM

WELD, CONTROL SHAFT, LH - ORANGE

Note: (S/N: 2012609704 & BELOW)

$84.99

$

Usually ships in 2-12 days

0

32

Simplicity 5409641A

WELD, NEUTRAL LOCK, LH - BLK

$60.99

$

Usually ships in 2-12 days

0

33

Simplicity 5409642A

WELD, NEUTRAL LOCK, RH - BLK

$

$

Not available

34

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1" GD5
(Superseded to 703585)

$4.99

$

In Stock, only 3 left!

0

35

Simplicity 1717050SM

SWITCH, PLUNGER, N.O./N.C.

$17.99

$

In Stock, Qty 11

0

36

Simplicity 5025179X4SM

10-24 X .5 SCREW

$3.99

$

Usually ships in 2-12 days

0

37

Simplicity 5025029SM

NUT, HEX, #10-24

$2.99

$

Usually ships in 2-12 days

0

38

Simplicity 5401248SM

GUARD, RUBBER MOTION CONTROLS

$8.49

$

Usually ships in 2-12 days

0

39

Simplicity 5025431SM

PUSH RIVET (TREE TYPE) BLACK

$4.49

$

Usually ships in 2-12 days

0

40

Simplicity 5025170SM

WASHER, 5/16" LOCK

$3.99

$

Usually ships in 2-12 days

0

41

Simplicity 5400637A

WELD, HANDLE MOTION CONTROL, RH - BLK
(Superseded to 5400637AYP)

$69.99

$

Usually ships in 2-12 days

0

42

Simplicity 5047004A

MOUNT, CONTROL ARM - BLK
(Superseded to 5047004SM)

$62.99

$

Usually ships in 2-12 days

0

43

Simplicity 5022068SM

GRIP, FOAM, 3/4" ID, 16" LONG

$11.99

$

Usually ships in 2-12 days

0

44

Simplicity 5400636A

WELD, HANDLE MOTION CONTROL-LH - BLK
(Superseded to 5400636AYP)

$50.99

$

Usually ships in 2-12 days

0

45

Simplicity 5403620A

WELD, CONTROL SHAFT, RH - BLK
(Superseded to 84008453)

Note: (S/N: 2012609705 & ABOVE)

$182.99

$

Usually ships in 2-12 days

0

46

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLON FLANGE
(Superseded to 703115)

Note: (S/N: 2012609705 & ABOVE)

$3.49

$

In Stock, Qty 17

0

47

Simplicity 5100940SM

DAMPENER, CONTROL

Note: (S/N: 2012609705 & ABOVE)

$55.99

$

In Stock, only 2 left!

0

48

Simplicity 5101307SM

BALL STUD, 10MM, 5/16-18 X 3/4

Note: (S/N: 2012609705 & ABOVE)

$5.49

$

Usually ships in 2-12 days

0

49

Simplicity 5403619A

WELD, CONTROL SHAFT, LH - BLK
(Superseded to 5403619AYP)

Note: (S/N: 2012609705 & ABOVE)

$113.99

$

Usually ships in 2-12 days

0
