2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Rear Bumper, Roll Bar & Seat Belt Group (279bmp0) Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

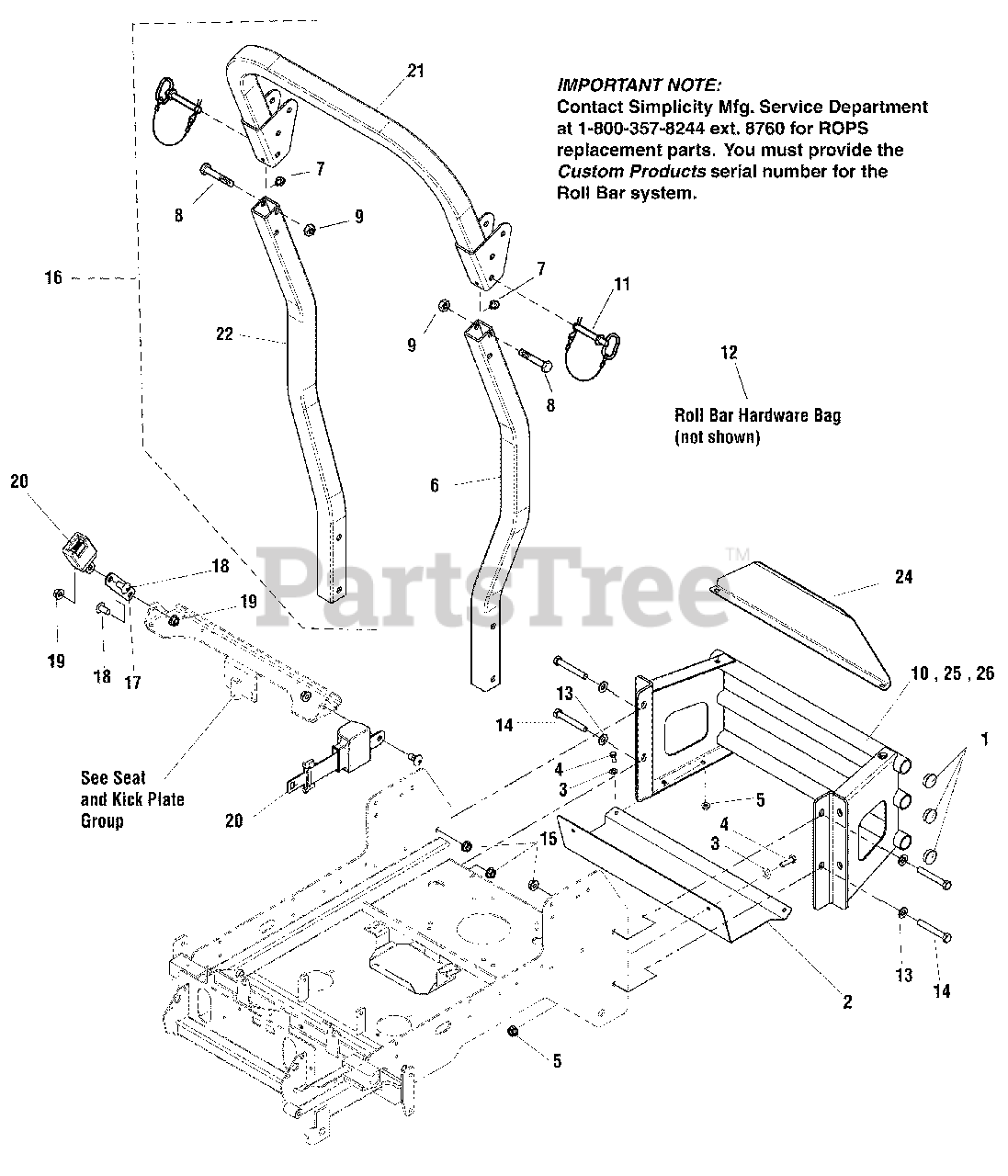

Rear Bumper, Roll Bar & Seat Belt Group (279bmp0) Parts Diagram

  • Title

1

Simplicity 5023484SM

PLUG, PANEL, 1.25 BLACK

$3.99

$

In Stock, only 1 left!

0

2

Simplicity 5409141AYP

PLATE, HEAT SHIELD - BLK

$96.99

$

Usually ships in 2-12 days

0

3

Simplicity 5025292SM

WASHER, 5/16 GD.9 FLAT

$3.99

$

In Stock, only 4 left!

0

4

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4" GRD5

$3.99

$

In Stock, only 3 left!

0

5

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 17

0

6

ROLL BAR POST, LH

Note: (See drawing note.)

$

$

Not available

7

Simplicity 5100383SM

RUBBER BUMPER

$3.99

$

In Stock, only 2 left!

0

8

BOLT

$

$

Not available

9

NUT

$

$

Not available

10

Simplicity 5409140CYP

WELD, BUMPER - ORANGE

Note: (S/N: 2016294925 & Below)

$302.99

$

Usually ships in 2-12 days

0

11

Simplicity 5100079SM

PIN, HITCH, BLACK W/ PLASTIC LANYARD
(Superseded to 5100013SM)

$35.99

$

Usually ships in 2-12 days

0

12

Simplicity 5100377SM

ROLL BAR HARDWARE BAG

Note: (Includes Ref. Nos 11, 25 and 26.)

$83.99

$

Usually ships in 2-12 days

0

13

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 5

0

14

Simplicity 5025017X26SM

BOLT, 1/2-13 X 3-1/4"

$5.49

$

In Stock, only 1 left!

0

15

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

16

ROPS (Call 1-800-933-6175 x708 if replacing a ROPS)

$

$

Not available

17

Simplicity 5401044CSM

EXTENSION, SEAT BELT

$

$

Not available

18

Simplicity 5100267SM

SCREW, 1/2 - 13 X 1.00 SCHS

$3.49

$

Usually ships in 2-12 days

0

19

Simplicity 5025396SM

NUT, 1/2-13 HEX NYLOCK FLANGE

$3.49

$

In Stock, only 3 left!

0

20

Simplicity 5100139SM

SEAT BELT, RETACTING - ASSM

$103.99

$

Usually ships in 2-12 days

0

21

ROLL BAR TOP LOOP

Note: (See drawing note.)

$

$

Not available

22

ROLL BAR POST, RH

Note: (See drawing note.)

$

$

Not available

24

Simplicity 5400681CSM

PLATE, CARB PROTECTOR

$45.99

$

Usually ships in 2-12 days

0

25

Simplicity 5410565CYP

WELD, BUMPER - ORANGE

Note: (S/N: 2016294926 & Above)(49M9770144G5 Engine - S/N: 2016409322 & Above)

$447.99

$

Usually ships in 2-12 days

0

26

Simplicity 5409140CYP

WELD, BUMPER - ORANGE

Note: (49M9770144G5 Engine - S/N: 2016409321 & Below)

$302.99

$

Usually ships in 2-12 days

0
