2690479 - Simplicity Cobalt 61" Zero-Turn Mower, 27hp Kohler Wheel & Tire Group (279whl0) Parts Diagram

Cobalt 61" Zero-Turn Mower, 27hp Kohler

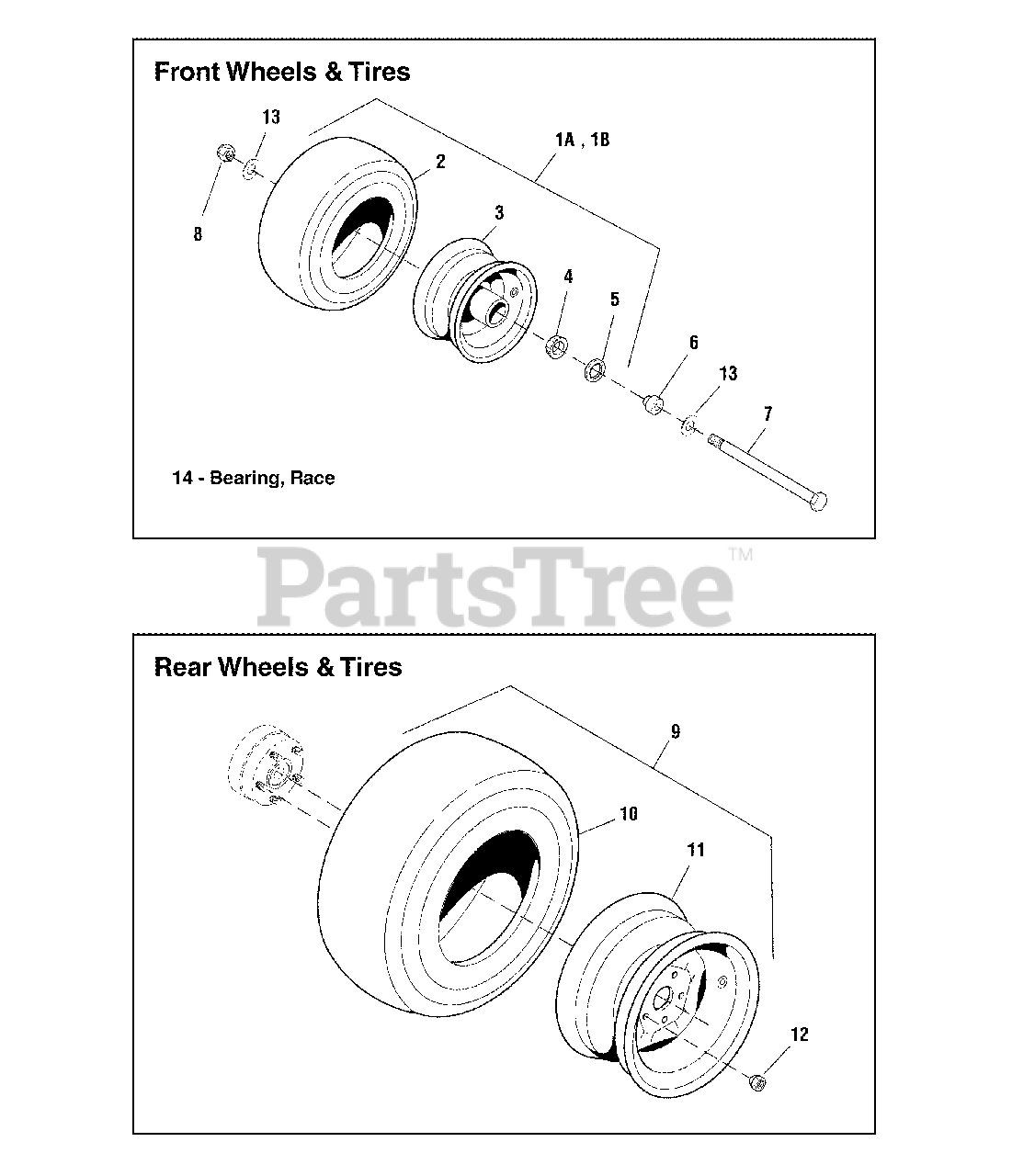

Wheel & Tire Group (279whl0) Parts Diagram

  • Title

1a

Simplicity 5022631SSM

WHEEL & TIRE ASSEMBLY, 13 x 5.0 - 6, Complete

$168.99

$

Usually ships in 2-12 days

0

1b

Simplicity 5023280SM

* FLAT-FREE TIRE ASSEMBLY, 13 x 5.0 - 6

$217.99

$

In Stock, only 4 left!

0

2

Simplicity 5022029X1SM

TIRE, 13 x 5.0 - 6

$

$

Not available

3

Simplicity 5022631SX1SM

WHEEL ASSEMBLY, for 13 x 5.0 - 6 Tire, Complete

$102.99

$

In Stock, only 1 left!

0

4

Simplicity 5022631SX2SM

BEARING, TAPERED CONE

Note: (2 per tire)

$12.99

$

Usually ships in 2-12 days

0

5

Simplicity 5022631SX3SM

SEAL, GREASE

Note: (2 per tire)

$9.99

$

Usually ships in 2-12 days

0

6

Simplicity 5047103SM

ADAPTER, Caster Wheel

Note: (2 per tire)

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025017X64SM

BOLT, 1/2-13 x 8"

$10.99

$

In Stock, only 3 left!

0

8

Simplicity 5025056SM

NUT, 1/2-13 Hex Nylon Lock
(Superseded to 7091325YP)

$4.99

$

In Stock, Qty 13

0

9

Simplicity 5023369SM

WHEEL & TIRE ASSEMBLY, 22 x 11 - 10, Complete

Note: (48" & 52" Models)

$426.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023369X2SM

TIRE, 22 X 11.0 - 10
(Superseded to 5023369SM)

Note: (48" & 52" Models)

$426.99

$

Usually ships in 2-12 days

0

11

Simplicity 5023369X1SM

WHEEL ASSEMBLY, 10 X 7

$192.99

$

Usually ships in 2-12 days

0

12

Simplicity 5020601SM

LUG NUT, 1/2-20

$3.49

$

In Stock, Qty 9

0

13

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 5

0

14

Simplicity 5022631SX4SM

BEARING, RACE

Note: (Not shown)

$10.99

$

Usually ships in 2-12 days

0
